Description

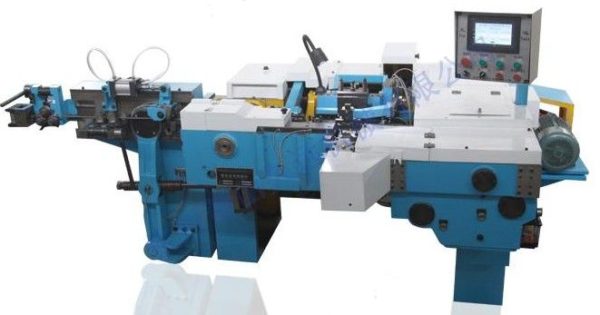

Salient Features of AMC-11 Rings lifting chains automatic forming machine
The AMC series automatic chain braiding machine adopts Italian advanced technology, Is the most advanced automatic chain braiding machine in domestic. Several models of machine for application Range of diameter 3 – 22mm and so on , the application of Siemens PLC give the chains braiding knitting machine all-round protection and control, safe and reliable, stable performance, strong durability.
- Full automatic design with high efficiency.
- Easy to operate and adjustment.
- Advanced PLC control system optional.
Main parameters of AMC-11 Rings lifting chains automatic forming machine
|
NO |
TPYE |
AMC-11 |
|
1 |
Chain line diameter |
Φ5-φ11 |
|
2 |
Link Pitch |
15~65（mm） |
|
3 |
hain place wide |
20~55（mm） |
|
4 |
Into to the length |
55~210（mm） |
|
5 |
Work efficiency |
35 to 50 ring/points |
|
6 |
The electric rate |
8KW |
|
7 |
Motor power |
7.5KW（380V 50~60HZ） |
|
8 |
Rated speed |
1400rpm |
|
9 |
controller |
Mitsubishi, Siemens PLC |
|
10 |
For pneumatic air pressure |
≥0.65（Mpa） |
|
11 |
Air consumption |
2.25 L/rings |
|
12 |
Machine size |
3700*2100*1800 |
|
13 |
Machine weight |
≈4.2T |
