Brass welding rivets with welding tip high speed forming machine

The machine is special two die four blows designed for making carbon steel or brass welding rivets.

The whole machine adopts semi-closed design, reasonable structure, beautiful appearance, high speed, low noise and low energy consumption.

A wide range of products can be manufactured by the machine by change desinging of mold,such as various screws, hexagon bolt, sockets bolts, shafts shape parts, multiple steps parts, large head parts,short rod parts, full hollow pull rivet nails, etc.

Specifications of Brass welding rivets high speed forming machine

Product ODMax.lengthOutputMain die sizePunch die sizeCutter die sizeMotorsWeightDimensionModel
Φ3-6MM40MM70PCS/MINφ46X857MMφ31MMΦ19MM3.0+0.25KW35T2.2*1.24*1.16mAH24-6

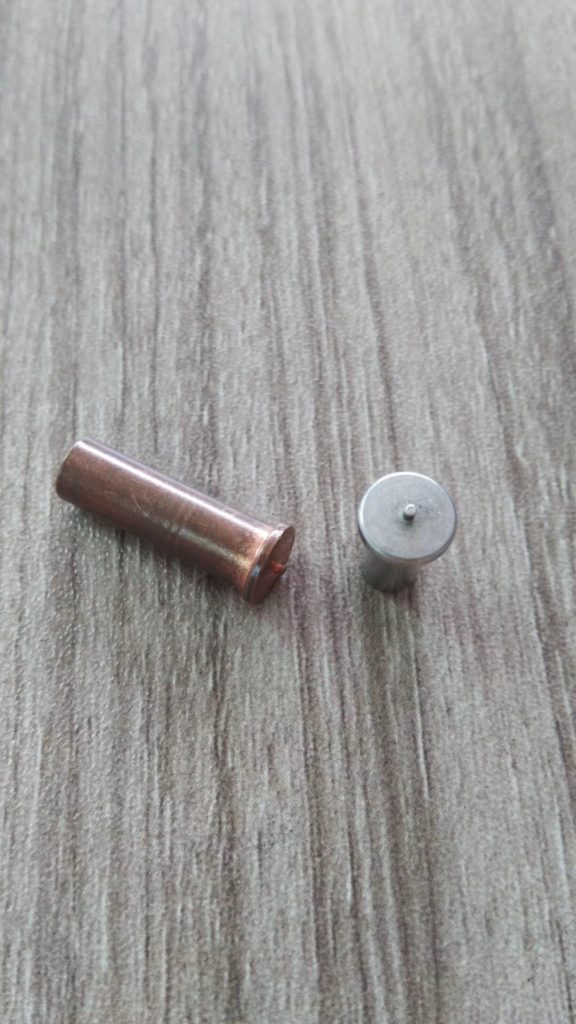

Brass welding rivets made by high speed forming machine

Brass welding rivets made by Brass welding rivets with welding tip forming machine

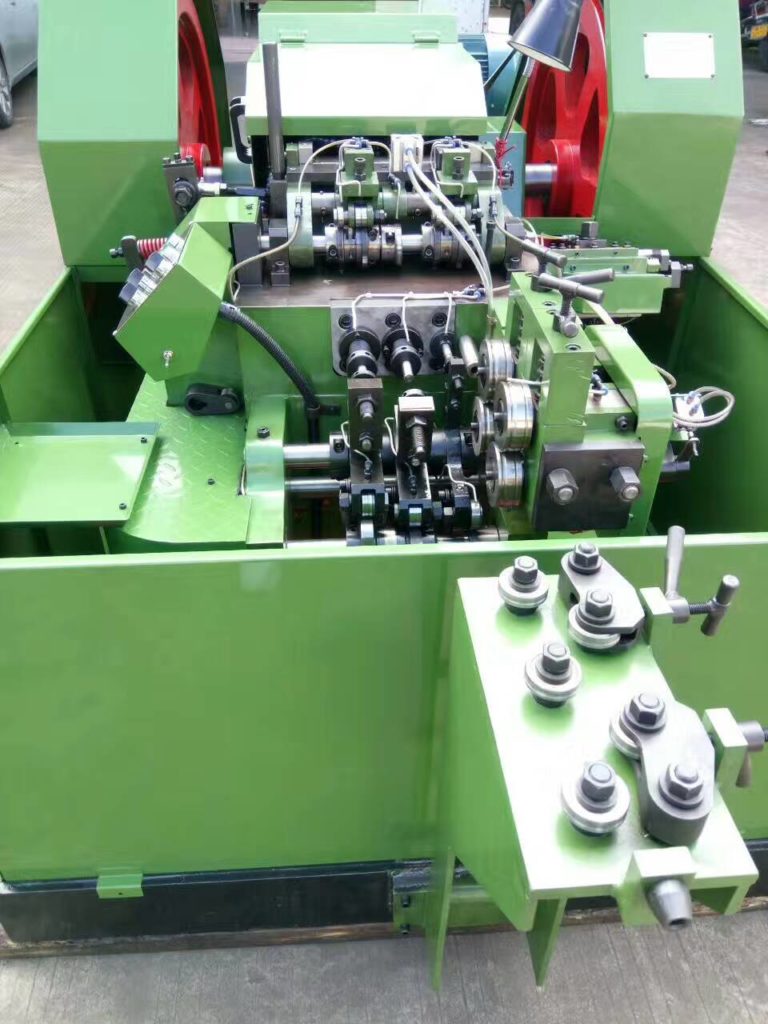

Electricplug pins two die four blows forming machine

Welding rivets two die four blows forming machine

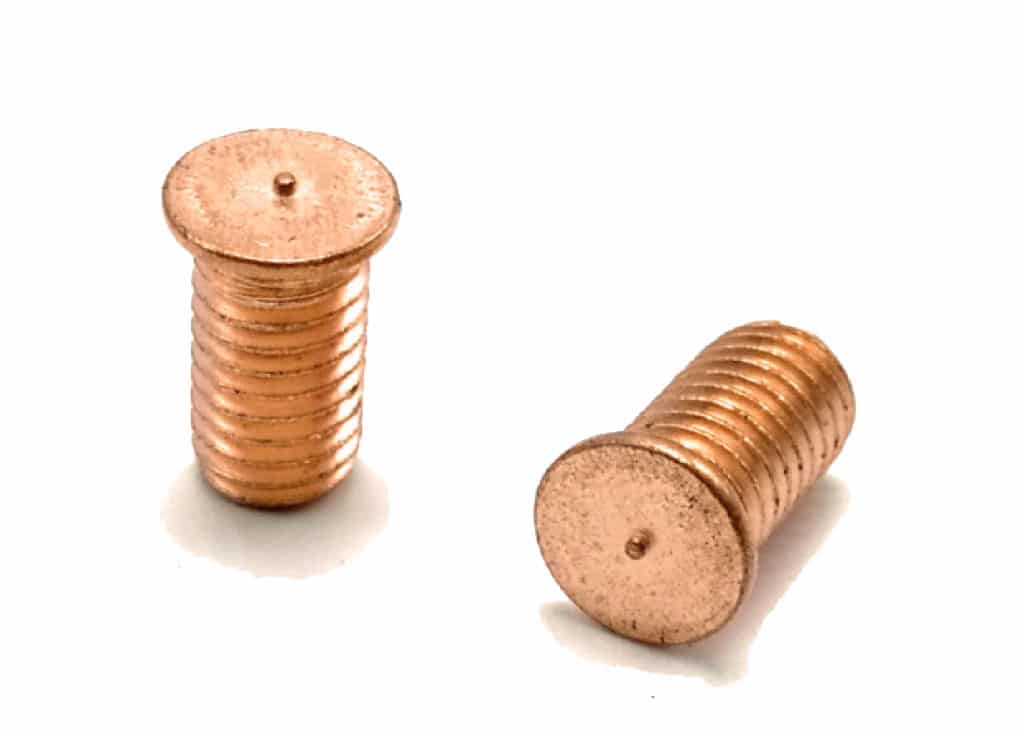

Brass welding rivets made by high speed forging machine

Brass welding rivets made by Brass welding rivets with welding tip high speed forming machine

Steel weld rivets made by high speed two die four blow forging machine

Steel weld rivets made by two die four blow Brass welding rivets with welding tip forming machine
