Description
Salient Features of Carbon steel Weld studs rivet production machine:
- One die two blows design,simple structure.
- Running steady and easy to operate & adjustment.
- Extra length upto 400MM machine available,satisfy customer’s requirement for very long bolt.

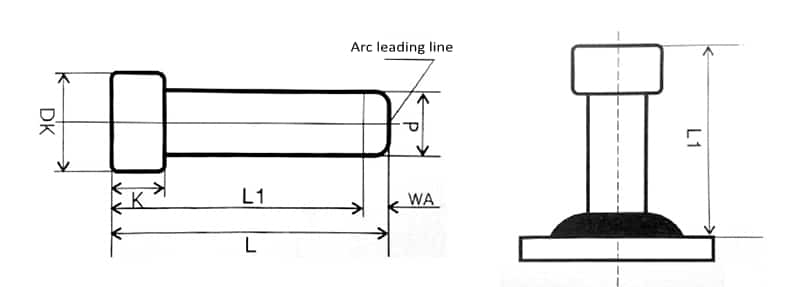

Headed weld studs drawing made by Carbon steel Weld studs rivet production machine

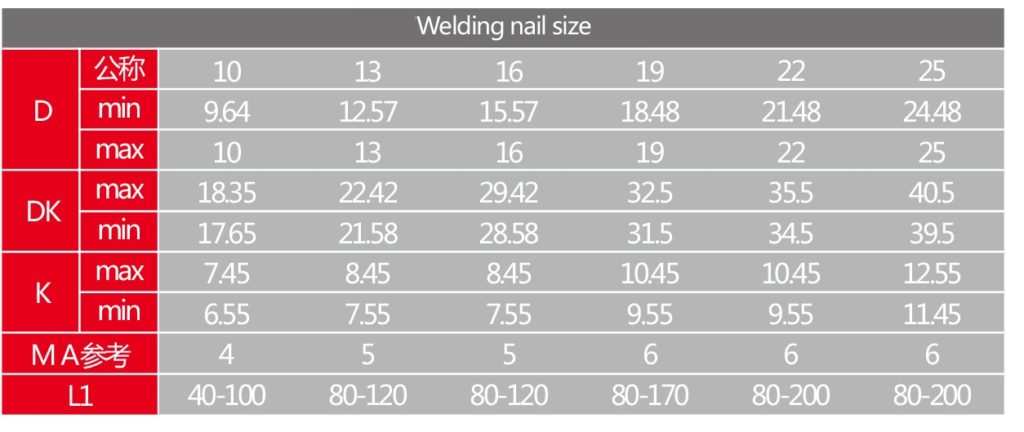

threaded stud welder dimensions list made by Carbon steel Weld studs rivet production machine

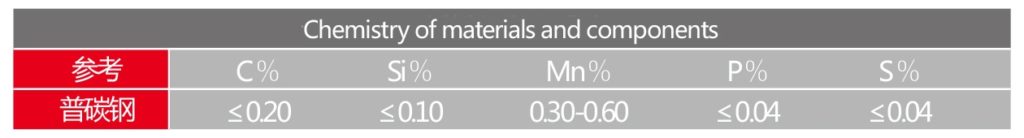

Carbon steel weld studs nail chemical composition

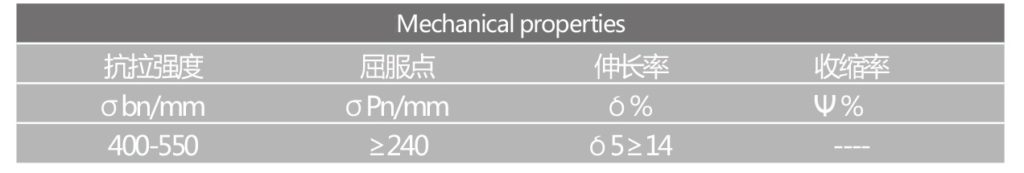

Carbon steel welding studs nail mechanical properties

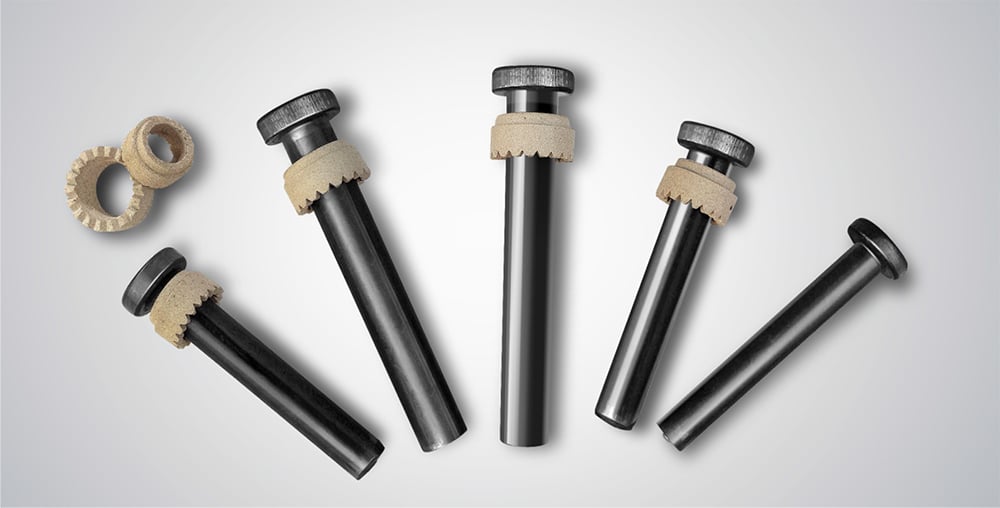

Headed weld studs made by Carbon steel Weld studs rivet production machine
Specification sheet of Welding studs automatic making machine
| Model | Shank Dia.(MM) | Shank Length (MM) | Output (PPM) | Ram Stroke (MM) | Main Motor(KW) | Weight (KG) | Dimensions (M) |
|---|---|---|---|---|---|---|---|
| ANH12-4 | 2-4 | 5-50 | 85 | 90 | 3 | 1500 | 1.23×0.88×1.05 |
| ANH12-6 | 4-6 | 8-80 | 80 | 120 | 5.5 | 3500 | 2.35×1.4×1.35 |
| ANH12-6A | 4-6 | 15-130 | 55 | 180 | 5.5 | 4000 | 2.7×1.5×1.45 |
| ANH12-8 | 6-8 | 15-130 | 65 | 180 | 7.5 | 5500 | 3.3×1.6×1.45 |
| ANH12-10 | 8-10 | 20-150 | 60 | 200 | 11 | 6500 | 3.52×1.9×1.7 |
| ANH12-10L | 8-10 | 30-200 | 55 | 260 | 11 | 8500 | 4×2×1.8 |
| ANH12-10LL | 8-10 | 45-250 | 45 | 330 | 11 | 10000 | 4.5×2.1×1.88 |
| ANH12-12 | 10-12 | 15-150 | 55 | 200 | 18.5 | 11500 | 5.5×2.35×1.75 |
| ANH12-12L | 10-12 | 30-200 | 50 | 280 | 18.5 | 12500 | 5.9×2.35×1.75 |
| ANH12-12LL | 10-12 | 50-250 | 40 | 330 | 18.5 | 14000 | 6.3×2.4×1.8 |
| ANH12-16 | 12-16 | 15-150 | 55 | 200 | 22 | 15000 | 6.4×2.5×2.5 |
| ANH12-16A | 12-16 | 25-200 | 50 | 260 | 22 | 18000 | 6.8×2.65×2.5 |
| ANH12-16L | 12-16 | 45-250 | 40 | 330 | 22 | 19000 | 7×2.8×2.5 |
| ANH12-16LL | 12-16 | 55-300 | 32 | 420 | 30 | 23000 | 7.15×2.95×2.5 |
| ANH12-20 | 12-20 | 15-200 | 50 | 260 | 37 | 23000 | 7.2×3.2×2.3 |
| ANH12-24 | 20-24 | 15-350 | 45 | 260 | 40 | 28000 | 7.3×3.4×2.3 |
| ANH12-30 | 24-30 | 50-400 | 35 | 500 | 55 | 43000 | 8.8*4*2.8 |
