Insulation Board Nails Anchor Insulation fixing

Description

Metal Insulation Fixings for fixing insulation boards.

Material: Pre-Galvanized Steel, available with Stainless Steel Finish: Galvanized

Suitable for:·Concrete·Natural stone with dense structure·Solid brick·Solid sand-lime brick·Solid block made from lightweight concrete·Aerated concrete·Vertically perforated brick·Perforated sand-lime brick

For fixing for:

·Soft and pressure-resistant insulating material, e.g.·Glass wool·Rock wool·Polystyrene·PU panels·Foam glass·Lighting building boards made of wood wool·Coir matting·Cork boards

DESCRIPTION

·Zinc plated or 1.4016 stainless steel metal insulation support (inbox)

·Stable, Proven edged connection between shank and plate.

·When driven in, the spring steel expands itself and grips against the hole wall over its entire shank length.

·1.4016 (inbox) stainless steel versions for use in damp conditions

Advantages/benefits

·Quick and simple hammerset installation saves work.

·No additional screws and nails

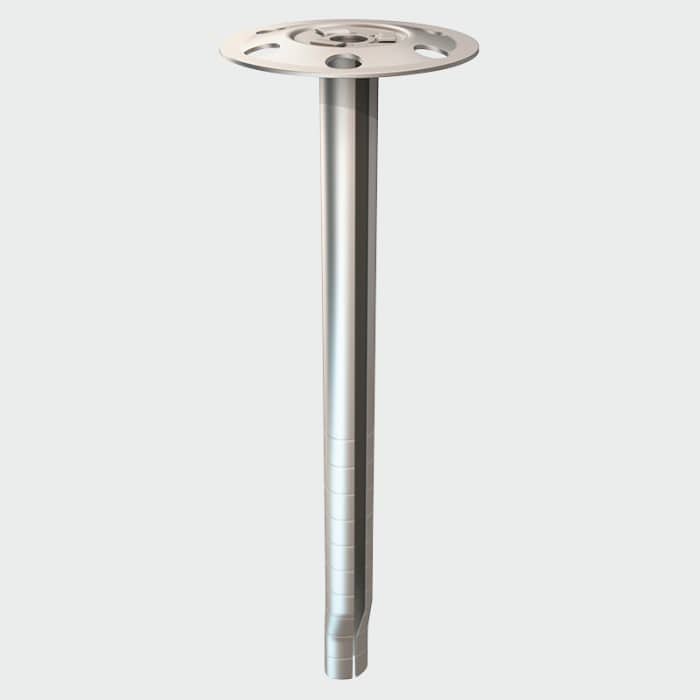

Insulation Board Nails Anchors Insulation fixing

Galvanized Metal Insulation Anchor Insulation Pins

Technical Data

Size	L [mm]	D [mm]	A [mm]	T [mm]	Packaging [Pieces]	Weight [kg/mpc]
8 × 50	50	8	35	0.7	50	10.2
8 × 60	60	8	35	0.7	50	11.2
8 × 80	80	8	35	0.7	50	13.7
8 × 90	90	8	35	0.7	50	14.8
8 × 110	110	8	35	0.7	50	17.2
8 × 140	140	8	35	0.7	50	20.8
8 × 170	170	8	35	0.7	50	24.4
8 × 200	200	8	35	0.7	50	28
8 × 230	230	8	35	0.7	50	31.8
8 × 250	250	8	35	0.7	50	33.4
8 × 300	300	8	35	0.7	50	40
