Description
M16 Double Type Sleeve Anchor bolt forming machine

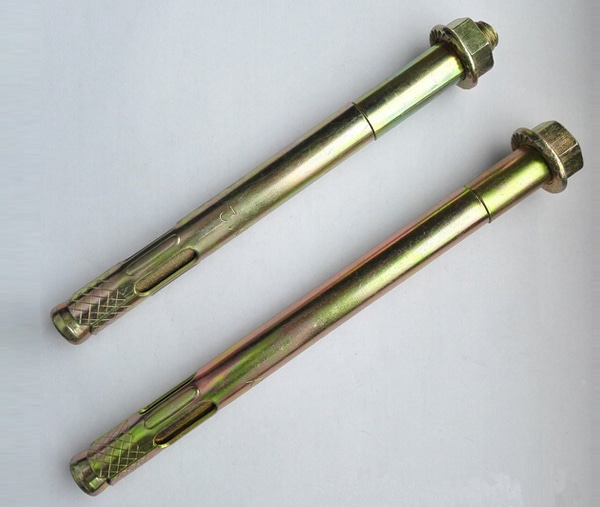

Double Type Sleeve Anchor made by bolt forming machine
Salient Features:
- One die two blows design,simple structure.
- Running steady and easy to operate & adjustment.
- Extra length upto 400MM machine available,satisfy customer’s requirement for very long bolt.
Specifications of M16 Sleeve anchor bolt/Hollow wall anchor screw/Toggle bolt making machine
| Model | Shank Dia.(MM) | Shank Length (MM) | Output (PPM) | Ram Stroke (MM) | Main Motor(KW) | Weight (KG) | Dimensions (M) |
|---|---|---|---|---|---|---|---|
| ANH12-16 | 12-16 | 15-150 | 55 | 200 | 22 | 15000 | 6.4×2.5×2.5 |
| ANH12-16A | 12-16 | 25-200 | 50 | 260 | 22 | 18000 | 6.8×2.65×2.5 |
| ANH12-16L | 12-16 | 45-250 | 40 | 330 | 22 | 19000 | 7×2.8×2.5 |
| ANH12-16LL | 12-16 | 55-300 | 32 | 420 | 30 | 23000 | 7.15×2.95×2.5 |
