Description

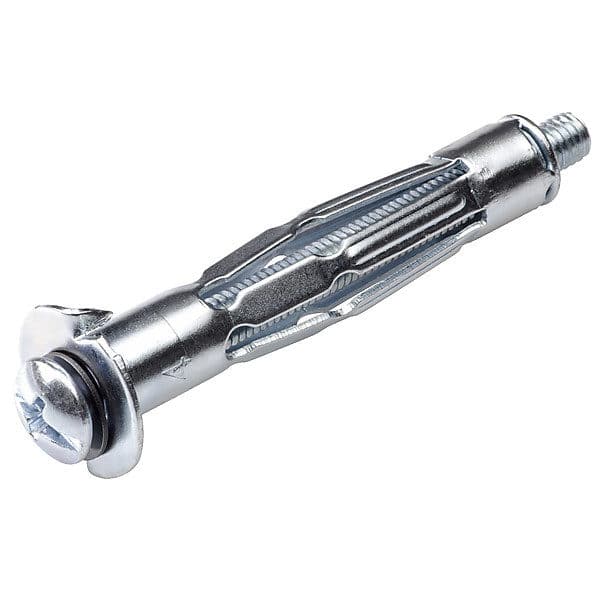

M5 Universal Hollow Wall Anchor screw forging machine(Taiwan high speed type)
Specifications of Taiwan high speed type screw cold header
| Model | Max.dia. (mm) | Max.length (mm) | Main die(mm) | Punch die(mm) | Shear die(mm) | PCS/min | Main motor (KW) |
|---|---|---|---|---|---|---|---|
| AH-5 | 5 | 50 | ∮ 34.5*80 | ∮ 31*55 | 19 | 145-175 | 2.2 |
| AH-5A | 5 | 50 | ∮ 34.5*80 | ∮31*55 | 19 | 170-220 | 2.2 |
| AH-5L | 5 | 63 | ∮ 34.5*80 | ∮ 31*55 | 19 | 130-160 | 2.2 |
| AH-5LL | 5 | 76 | ∮ 34.5*108 | ∮ 31*55 | 19 | 90-120 | 3 |
High speed heading machine with screw conveyor
High speed heading machine with accessories and auto checker function optional
