Description
Salient Features of Nylon ring assemblied nut castle slotting machine
1,High processing precision, fast speed, user-friendly design and simple operation
2, the vibrator is automatically loaded, material finish and material jam automatically stops
3, the switch of different sizes products is simple and fast
4, high precision (machining accuracy ± 0.05)
5, imported linear guide
6, the surface is free of burrs
7,Arbitrary adjustment of equal 6, 8, 10, 12
8, independent electric cabinet makes the equipment more stable
Specificatons of Automatic castle nut slot milling machine
| Model | ACM-M6 | ACM-M8 | ACM-M10 | ACM-M12 |
|---|---|---|---|---|
| Slot milling Stations | 2 | 2 | 2 | 2 |
| Slot milling Speed | 940 ROTARY PER MIN. | 740 ROTARY PER MIN. | 650 ROTARY PER MIN. | 560 ROTARY PER MIN. |
| Appro. Weight | 700 | 700 | 750kg | 750 |
| Appro. Dimension | 0.8*0.8*1.3M | 0.8*0.8*1.3M | 0.8*0.8*1.3M | 0.8*0.8*1.3M |
| Feeding type | Vibrator | Vibrator | Vibrator | Vibrator |

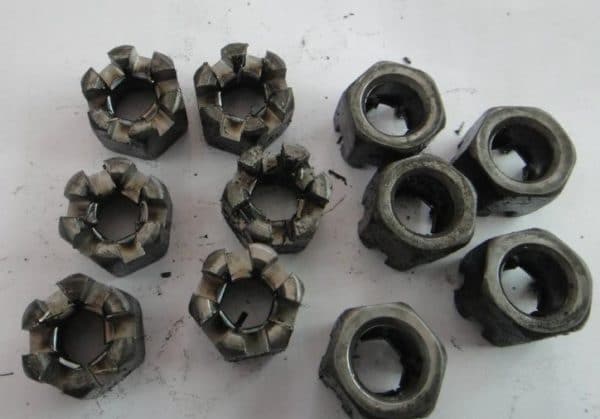

castle nut slotted by automatic slot milling machine
Nylon ring assemblied nut castle slotting machine
