Description
Specification sheet of sleeve anchor bolts forging machine

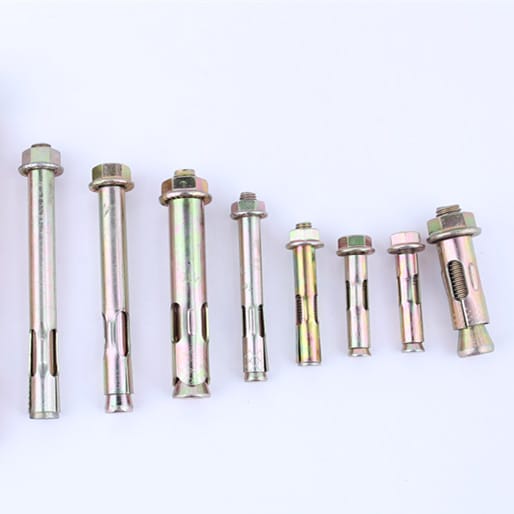

sleeve anchors made by huayu anchor fasteners machines
Salient Features:
- One die two blows design,simple structure.
- Running steady and easy to operate & adjustment.
- Extra length upto 400MM machine available,satisfy customer’s requirement for very long bolt.
Specification sheet of sleeve anchor bolts forging machine
| Model | Shank Dia.(MM) | Shank Length (MM) | Output (PPM) | Ram Stroke (MM) | Main Motor(KW) | Weight (KG) | Dimensions (M) |
|---|---|---|---|---|---|---|---|
| ANH12-4 | 2-4 | 5-50 | 85 | 90 | 3 | 1500 | 1.23×0.88×1.05 |
| ANH12-6 | 4-6 | 8-80 | 80 | 120 | 5.5 | 3500 | 2.35×1.4×1.35 |
| ANH12-6A | 4-6 | 15-130 | 55 | 180 | 5.5 | 4000 | 2.7×1.5×1.45 |
| ANH12-8 | 6-8 | 15-130 | 65 | 180 | 7.5 | 5500 | 3.3×1.6×1.45 |
| ANH12-10 | 8-10 | 20-150 | 60 | 200 | 11 | 6500 | 3.52×1.9×1.7 |
| ANH12-10L | 8-10 | 30-200 | 55 | 260 | 11 | 8500 | 4×2×1.8 |
| ANH12-10LL | 8-10 | 45-250 | 45 | 330 | 11 | 10000 | 4.5×2.1×1.88 |
| ANH12-12 | 10-12 | 15-150 | 55 | 200 | 18.5 | 11500 | 5.5×2.35×1.75 |
| ANH12-12L | 10-12 | 30-200 | 50 | 280 | 18.5 | 12500 | 5.9×2.35×1.75 |
| ANH12-12LL | 10-12 | 50-250 | 40 | 330 | 18.5 | 14000 | 6.3×2.4×1.8 |
| ANH12-16 | 12-16 | 15-150 | 55 | 200 | 22 | 15000 | 6.4×2.5×2.5 |
| ANH12-16A | 12-16 | 25-200 | 50 | 260 | 22 | 18000 | 6.8×2.65×2.5 |
| ANH12-16L | 12-16 | 45-250 | 40 | 330 | 22 | 19000 | 7×2.8×2.5 |
| ANH12-16LL | 12-16 | 55-300 | 32 | 420 | 30 | 23000 | 7.15×2.95×2.5 |
| ANH12-20 | 12-20 | 15-200 | 50 | 260 | 37 | 23000 | 7.2×3.2×2.3 |
| ANH12-24 | 20-24 | 15-350 | 45 | 260 | 40 | 28000 | 7.3×3.4×2.3 |
| ANH12-30 | 24-30 | 50-400 | 35 | 500 | 55 | 43000 | 8.8*4*2.8 |
