Toggle bolts wings made by progressive stamping machine
Toggle bolts components made by progressive stamping machine

Toggle bolts wings progressive stamping machine

Categories: , Tag:
Description

Description

Apa series Toggle bolts wings progressive stamping machine

Machine Body

Heavy, one-piece welded steel frame is designed to resist

deflection, providing more accurate stampings and longer die life

CNC Control system

• Six programmable limit switches

• Four programmable die protection inputs

• LCD display screen for status and fault messages

• LED display for crank angle and spm

Pneumatic clutch & brake from Italy

• Wet clutch and brake provide long life, very low maintenance, and high performance even at high single-stroking rates.

• Use adopts dual valve from TACO, Japan, which can guarantee the safety and reliability of clutch.

Safety light curtains:

• Protective fence and the safety interlock to ensure the operation safety. have a movable single-hand pedal switch,easy to operate.

• Front Side Covers with safety switches, Back light safety guards (Category-4),Foot pedal conforming to CE regulation.

Control button station

• Machine is with both hands button and foot switch control: anti-tie down, non-repeat controls with ring guards; conforms to OSHA.

wedge anchor clip hydraulic punching press machine body

wedge anchor clip hydraulic punching press machine body

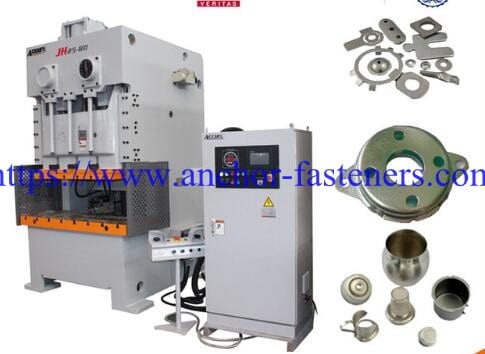

high speed automatic special parts punch machine

high speed automatic special parts punch machine

Widely applies in the electron, the communication, the computer, the domestic electric appliances, the furniture, the transportation vehicle (automobile, motorcycle, bicycle), ramming and the formation and so on hardware spare part.

Main feature

* high rigidity
1. high rigid, the high accuracy skeleton, uses the steel plate welding, and after the heat treatment, eliminates the lathe bed internal stress.
2. the structural element load is even, the rigidity is balanced.

* stable high accuracy
Friction spots and so on after crank, gear, gear shaft pass through hardens the heat treatment, the regrinding processing, has the extremely high resistance to wear and the balanced state, the stable property.

* the serviceability is reliable, is safe
The coupling/brakes mounting height is keen, adds the international apex’s twin solenoid valve again and the load protective device, guarantees the punch press slide revolution and the stop accuracy and the security.

* the production automation, reduces effort to melt
May match any feed control organization, the movement automation production, reduces the cost, raises the efficiency.

* the center of gravity is balanced
1. the transmission center tends to be consistent with the machine whole’s center, guaranteed that the ramming is precise, is stable.
2. this aircraft uses two slide balancers, guaranteed that the machine maintains the equilibrium running.

* slide adjusting mechanism
Adjusts reaches as high as 0.1mm precisely, the adjustment production has the security, quickly.

* environmental protection, energy conservation
Advanced design idea, low noise, low consumption, energy conservation.

Specifiation/model

APA-25

APA-35

APA-45

APA-60

APA-80

APA-110

APA-160

APA-200

APA-260
Specification ITEM V H V H V H V H V H V H V H V H V H
Tonnage Capacity (ton) 25 35 45 60 80 110 160 200 260
The power has position Rated tonnage point (mm) 3.2 1.6 3.2 1.6 3.2 1.6 4 2 4 2 6 3 6 3 6 3 7 3.5
Each minute traveling schedule number Changes speed Speed changing (spm) 140~(60) 200~(130) 120~(40) 180~(110) 100~(40) 150~(100) 90~(35) 120~(80) 80~(35) 120~(80) 60~(30) 90~(60) 50~(20) 70~(40) 50~(20) 70~(50) 40~(20) 50~(40)
Stroke Per Minute Constant speed stable Speed (spm) 110 85 75 65 65 50 35 35 30
Traveling schedule Stroke (mm) 70 30 70 40 80 50 120 60 150 70 180 80 200 90 200 100 250 150
Most greatly closed operational height Die Height (mm) 195 215 220 235 250 265 310 340 340 380 360 410 460 510 460 510 500 550
The slide adjustment measures Slide Adjustment (mm) 50 55 60 75 80 80 100 110 120
Next work table size
Bolster Area (mm)		 680×300×70 800×400×70 850×440×80 900×500×80 1000×550×90 1150×600×110 1250×800×140 1400×820×160 1500×840×180
On work table size
Slide Ared(mm)		 300×220×50 360×250×50 400×300×60 500×360×70 560×420×70 650×470×80 700×550×90 850×630×90 950×700×100
Die shank hole Shank Hole (mm) φ38.1 φ38.1 φ38.1 φ50 φ50 φ50 φ65 φ65 φ65
Main motor Main motor (kwxp) VS 3.7×4 VS 3.7×4 VS 5.5×4 VS 5.5×4 VS 7.5×4 VS 11×4 VS 15×4 VS 18×4 VS 22×4
Rail track adjustment gear Slide Adjust Device Manual -like manual operation Manual -like manual operation Manual -like manual operation Manual -like manual operation Electrically operated electrical driving Electrically operated electrical driving Electrically operated electrical driving Electrically operated electrical driving Electrically operated electrical driving
Use air pressure Air Pressure Kg/c㎡ 6 6 6 6 6 6 6 6 6
Punch press precision Presses Precision GB(JIS)1 level GB(JIS)1 level GB(JIS)1 level GB(JIS)1 level GB(JIS)1 level GB(JIS)1 level GB(JIS)1 level GB(JIS)1 level GB(JIS)1 level
Punch press (long x width x high) Presses Dimdnsion mm 1280×850×2200 1380×900×2400 1600×950×2500 1600×1000×2800 1800×1180×3000 1900×1300×3200 2300×1400×3800 2615×1690×4075 2780×1850×4470
Punch press weight Presses Weight (ton) 2.1 3 3.8 5.6 6.5 9.6 16 23 32
Mold pad ability ton 2.3 2.3 3.6 3.6 6.3 10 14 14
The mold pad traveling schedule is long mm 50 50 70 70 80 80 100 100
Mold pad active surface mm ² 300×230 300×230 350×300 450×310 500×350 650×420 710×480 810×480

Press Accessories/disposition
Fitting Standard Match
Flowing tubing head pressure type over-load protection *
Manual -like slide adjuster (below 60T and 60T) *
Electromotive type slide adjuster (above 60T) *
Mechanical mold high display (below 60T and 60T) *
Electromotive type mold high display (above 60T) *
Slide and mold balancing unit *
Revolving cam-operated switch *
Crank angle display *
Counter *
Air source attachment *
Two degrees guarantee bond the installment *
Instruction for use *
Service aid and toolbox *
Electromotive type grease lubrication installment ○
Is mad the die pad installment ○
Frequency changer ○
Cuts the counter in advance ○
Prejudges the counter ○
Foot switch ○
Trades the mold installment (to lift mold fast, to clamp mold or moves to mold arm) ○
On the slide hits the material installment ○
Delivers the detector set by mistake ○
Power point. ○
Quakeproof foot ○
Electro-optic protective device ○
Feeding machine (air, machinery and NC each kind) ○
Expects the frame ○
Leveling arm ○
Manipulator ○
Mold illumination device ○
Technical Parameter/work table technical parameter
Model
Model		 a b c d e f øg h i T die
APA-25 240 120 90 300 – 150 ø38.1 80 220 I
APA-35 280 140 120 360 – 160 ø38.1 100 250 I
APA-45 300 150 120 400 – 210 ø38.1 120 300 I
APA-60 320 160 150 500 220 220 ø50 160 360 II
APA-80 360 180 150 560 300 220 ø50 180 420 II
APA-110 400 200 160 650 300 220 ø50 220 470 II
APA-160 440 220 220 700 300 175 ø65 220 550 II
APA-200 480 240 280 850 420 200 ø65 300 630 II
APA-260 520 260 290 950 420 200 ø65 300 700 II
Explained: The product picture supplies the reference sincerely, slightly has the difference with the sell material object, in this material form technical parameter, if has the change, further notice. Still a need more detailed material please deign to inquire.
