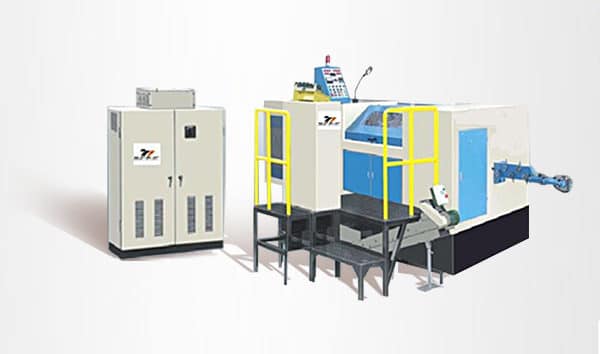

ABF-133S High Speed Automatic Bolt Production Machine

ABF-133S High Speed Automatic Bolt Production Machine

Description

Description

Main Specifications of ABF-133S High Speed Automatic Bolt Production Machine

Model Unit ABF-133S
Stations Pcs Three
Forging Force Ton 90
Max. Material Cutting Diameter Mm 15
Max. Material Cutting Length Mm 140
K.O Length Mm 120
P.K.O Length Mm 26
Cutting Die Size Mm 46*80
Main Die Size Mm 80*123
Die Pitch Mm 114
Punch Die Size Mm 60*120
Suitable Product Size M10-M12
Max. Product Length Mm 100
Min. Product Length Mm 20
Max. Production Speed Pcs/Min. 170
Main Motor Power Kw 30
Appro. Machine Weight Ton 20

1.We reserves the right to modify the above parameters, and may not be notified if there is any modification;

2.The most suitable production speed of the product depends on the shape, size and material of the product;

3.The maximum material shear diameter and the suitable product diameter listed in the table are calculated as medium carbon alloy steel, equivalent to 10.9 high strength screws.

Application Scope of ABF-133S High Speed Automatic Bolt Production Machine

ABF-133S High Speed Automatic Bolt Production Machine is one kind of specialized machine with high efficiency and automation among forging machinery. Cold forging technique and automatic cold forging machines are used for producing different kinds of bolts, screws, rivets,special parts and nuts in the field of fastener industry. Because of the advantage of the cold forging equipment itself and the superiority of cold forging technique, the ABF-133S High Speed Automatic Bolt Production Machine also are widely used in different national economic fields for producing fasteners and non-standard parts for industry of aviation steamer, machinery, rail traffic, vehicle, motorcycle, bicycle, sewing machine, construction, furniture, light industry and daily necessities, etc.

Items can be produced by the ABF-133S High Speed Automatic Bolt Production Machine

Flange Bolts, Socket bolts,Hex Bolts, Fastener and Bolts, Hex Cap Screws, Spring Center bolts, Hex Socket Cap Screws, Carriage bolts, solid rivets, square head set screws, truss head track bolts, U Bolts, Fin Neck Bolts, shoulder bolts, coil thread bolts, Structure Liner Bolts, extra long Bolts, Hub Bolts fetter drive screws, wheel bolts, t-head bolts, Flange Bolts, eye bolts, shackle bolts, track bolts, wheel bolts, hex cap screws,auto fasteners,etc.

Salient Features of ABF-133S High Speed Automatic Bolt Production Machine

1. The air clutch brake system has been designed to actuate with low current and as “inching”, “single stroke” and “continuous running”. Except “inching”, the machine will always stop at the backward position of the main slider while operating in largest space.
2. Two sorts of transfers system for customer to choose: swing type (general equipped) and universal type (optional), equipped with pneumatic gripper, it can simplify the demand of operation, and is more stable when the machine runs at high speed.
3. Main motor is equipped with speed-adjust transducer, PLC control system, computer automatic man-machine interface system(Optional), these equipment make lots of convenience for customer to adjust the dimension of the non-standard products.
4. Feeding wheel and claw system are both drived by cylinder, the claw can stretch automatically when it goes back in order to reduce abrasion and noise. Feeding material and stop feeding material are controlled by two claws, the feeding material system is equipped with device for avoiding material draw back.
5. Perfect inspection system: short material inspecting and eliminating, inspection of the low location of oil pressure and air pressure, transfer system floating inspection system, overload, and lightload stop system to protect the lathe and dies and prolong the service life of them.
6. When the customer prepare to adjust the side cutting screw, they only need to adjust side cam’s station position, then they can achieve side cutting purpose. When the workpieces need not side cutting, customer can reset it to achieve the change from side cutting to former station.
7. High strengthened-material lathe bed, lengthened main and subsidiary slider structure and “pedrailtype” slider which is adopted domestically for the first time realize “zero space” assembling which assures the precision of the main slider movement and lengthens their service life of dies.
8. The main parts of all type machines have adopted strict casting procedure and annealing disposal to assure its steel hardness and precision.
9. Circle cutting die station assures the sheared material shouter than billet diameter which also can achieve accurate right angle cutting.
10. Auto sizing material stopper can adjust the precision of material size in the state of machine running.
11. P.K.O synchronized knock out system makes the choice of molding technics flexible.
12. Transfer finger moving and cutting cams are calculated via professional computer software to make machine stable in state of high speed forging.
13.There is imported converter available in electrical system, so it is easy to run the former with stepless variable drive PLC also is used for automatically inspecting the working mode of the former with the functions of fault alarm and fault display.
14.Touch screen and man-machine dialogue numerical control system are optional for meeting customer’s requirement, they are used for setting the length of thread pipe of rear knock out, the length of barrier and the feeding length, it is convenient for quick die change. This system has a memory capacity of 99 mnemonic modules for meeting the requirement of quick die change.

Main Structure And Parts Picture Introduction of ABF-133S High Speed Automatic Bolt Production Machine

Bolt maker body without enclosure High precision main slider
Bolt maker body without enclosure High precision main slider
Spring clamps system Transfer fingers system
Spring clamps system Transfer fingers system
PKO system Wire material cutting system
PKO system Wire material cutting system
Clutch system with brake device Gears transmission system
Clutch system with brake device Gears transmission system
Hydraulic and pnumatic control system Material discharge mechanism with convex plate quick replace function
Hydraulic and pnumatic control system Material discharge mechanism with convex plate quick replace function
Wire material feeding system Spiral bevel tranmission driving system
Wire material feeding system Spiral bevel tranmission driving system



Standard accessories of ABF-133S High Speed Automatic Bolt Production Machine

1. One set of trial tools
2. One set of standard hand tools.
3. One set of standard spare parts.
4. One set of Clutch
5. One set of control Panel
6. One set of AC motor
7. transducer speed adjusting system.
8. Full Cover
9. Device of protect revert feed
10. One set of operator stand (The Buyer jointing in the Buyer’s plant)
11. Inside Lamp
12. One set of Safety Device
1. Pneumatic Sensor
2. Oil less Sensor
3. K.O. & P.K.O. Safety pin breakage detector
4. End of material detector
5. Motor Over load detector (including lub., coolant and fan motors)
6. Short Feed detector
7. Air pressure shortage detector
8. Lub. Oil shortage detector
9. Two-hand control unit for jogging
13. Two sets of electrical, operation & maintains manual in English.
14. The following consumables spare of machine drawing will be provided by Seller.
a)Die Locking Screw
b)Punch Locking Screw
c)P.K.O. Lever
d)Punch Bolster for all stations
e)Trimming Cam Drawing
f)K.O. Rod Drawing
g)All safety bolts drawings
h)Ratchet wheel drawing
i)Transfer arm drawing
j)Drawing of straightening rolls
k)Complete set of Electrical drawings
l)Die & Punch Blocks drawings

Accessories and Services

Accessories and Services

Free Spare parts and Accessories with wedge anchor machine
1.Wire stand 1pcs
2.PKO swing arm(small) 4pcs
3.Cam fasten nut 3pcs
4.Forging die spare springs 10pcs
5.Output roller 2pcs
6.PKO roller 1pcs
7.Operation manual in english
8.Easy wear parts drawings.

Our services:
Pre-Sales Service
* Technical proposal and solution.
* Trial sample as per customer’s drawing after customer pay the die cost.
* Online video authentication machine work.

After-Sales Service
* Offer installation instruction of how to install the machine.
* Offer operation instruction of how to use the machine.
* Teach and train customer’s engineers how to operate machine in our factory.
* Regularly engineers visit customer’s factory site.
