Description
Running video of ABM36-3 Tri Metal Rivet and Electrical Contact Machine
APPLICATION OF THE ABM-5 Bi-metallic contact rivets cold heading machine
• MICRO SWITCH MANUFACTURERS
• AUXILIARY SWITCH MANUFACTURERS
• ROTARY SWITCH MANUFACTURERS
• LIMIT SWITCH MANUFACTURERS
• KNIFE SWITCH MANUFACTURERS
• ROCKER SWITCH MANUFACTURERS
• DOMESTIC SWITCH MANUFACTURERS
• AUTOMOTIVE SWITCH MANUFACTURERS
• RELAYS MANUFACTURERS
• MOTOR STARTER
• SWITCH GEARS MANUFACTURES
• AUTOMOTIVE MANUFACTURES
• AVIATION MANUFACTURES
• APPLIANCES MANUFACTURES

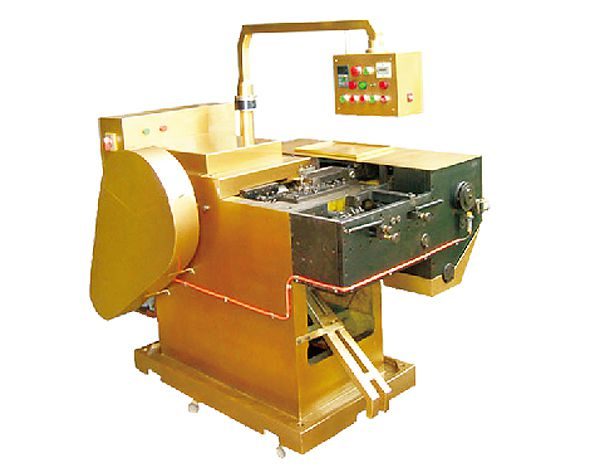

The ABM36-3 Tri Metal Rivet and Electrical Contact Machine can produce cold headed solid and bimetal contacts from a wide variety of materials.
Typical alloys include:
Bi metal and Tri metal electric contact rivets type:
Ag/Cu、FAg/Cu、AgNi/Cu、AgSnO2/Cu、AgSnO2In2O3/Cu、AgCu/Cu、AgZnO/Cu、AgCdO/Cu,etc bi metal composite electrical contact rivets；Ag/Cu/Ag、FAg/Cu/FAg、AgNi/Cu/AgNi、AgSnO2/Cu/AgSnO2、AgSnO2In2O3/Cu / AgSnO2In2O3、AgZnO/Cu/ AgZnO、AgCdO/Cu/AgCdO etc. tri metal composite electrical contact rivets
- Silver
- Fine grained silver
- Silver-Nickel
- Silver-Iron
- Silver-Graphite
- Silver-Cadmium Oxide
- Silver-Tin Oxide
- Gold
- Platinum
- Palladium
Main Technical Parameters of ABM36-3 Tri Metal Rivet and Electrical Contact Machine
| Item |
Data |
|
Motor Power |
3Kw |
|
Machine Power |
3.6kw |
|
Power Supply |
380v50hz |
|
Net Weight |
1800kg |
|
Transducer |
5.5kw |
|
Dimension(LxWxH) |
1530x1020x1420mm |
|
Head Dia |
2-8 |
|
Head Thickness |
Max3 |
|
Shank Dia. |
φ1- φ 4 |
|
Head Silver Layer |
Min 0.25 |
|
Shank Length |
Max9 |
|
Shank Silver Layer |
Min0.4-2.5 |
|
Output |
4000-8000pcs/h |
