ABM828 Bi-metal Contact and Rivet Machine

ABM828 Bi-metal Contact and Rivet Machine

Description

Description

Running video of ABM828 Bi-metal Contact and Rivet Machine

APPLICATION OF THE ABM828 Bi-metal Contact and Rivet Machine

• MICRO SWITCH MANUFACTURERS
• AUXILIARY SWITCH MANUFACTURERS
• ROTARY SWITCH MANUFACTURERS
• LIMIT SWITCH MANUFACTURERS
• KNIFE SWITCH MANUFACTURERS
• ROCKER SWITCH MANUFACTURERS
• DOMESTIC SWITCH MANUFACTURERS
• AUTOMOTIVE SWITCH MANUFACTURERS
• RELAYS MANUFACTURERS
• MOTOR STARTER
• SWITCH GEARS MANUFACTURES
• AUTOMOTIVE MANUFACTURES
• AVIATION MANUFACTURES
• APPLIANCES MANUFACTURES

ABM828 Bi-metal Contact and Rivet Machine can produce cold headed solid and bimetal contacts from a wide variety of materials.

Typical alloys include:

  • Silver
  • Fine grained silver
  • Silver-Nickel
  • Silver-Iron
  • Silver-Graphite
  • Silver-Cadmium Oxide
  • Silver-Tin Oxide
  • Gold
  • Platinum
  • Palladium

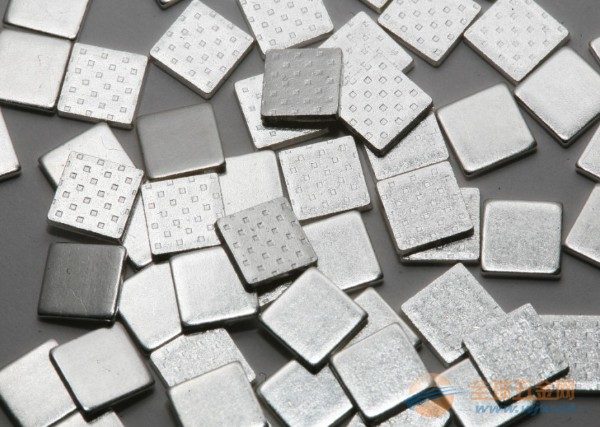

Rivet made by ABM-3 Bi metal silver copper electric contact rivet making machine

Main Technical Parameters of ABM828 Bi-metal Contact and Rivet Machine

Item Data
Round button dia. φ2.5mm- φ 8.5mm
Square button size 2.5×2.5-7x7mm
Thickness of button 0.5-3.2mm
Rivet head dia φ 2.5- φ 8.5mm
Thickness of rivet head Max 3.2mm
Dia. of rivet shank φ 1.2- φ 4.9mm
Thickness of rivet head Max 6mm
Silver thickness Min0.25mm
Button output 2200-7000pcs/hr
Rivet output 2200-11000pcs/hr
Power 3.6KW,380V,50HZ
Compress air Min0.2Mpa
Net weight 1650kg
Accessories and Services

Accessories and Services

Free Spare parts and Accessories with wedge anchor machine
1.Wire stand 1pcs
2.PKO swing arm(small) 4pcs
3.Cam fasten nut 3pcs
4.Forging die spare springs 10pcs
5.Output roller 2pcs
6.PKO roller 1pcs
7.Operation manual in english
8.Easy wear parts drawings.

Our services:
Pre-Sales Service
* Technical proposal and solution.
* Trial sample as per customer’s drawing after customer pay the die cost.
* Online video authentication machine work.

After-Sales Service
* Offer installation instruction of how to install the machine.
* Offer operation instruction of how to use the machine.
* Teach and train customer’s engineers how to operate machine in our factory.
* Regularly engineers visit customer’s factory site.
