Description

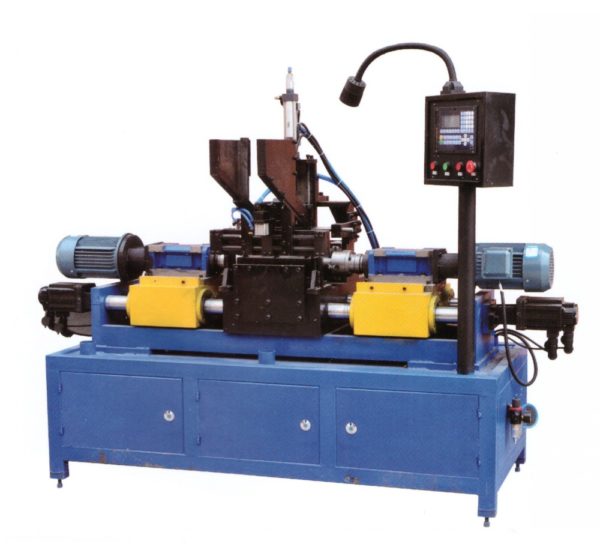

ADHC-450 Double sides automatic chamfering machine specifications:
Processing form: Double heads automatic chamfering
part length:100-450mm
part diameter: 3-30mm
part shape: round, square, hexagonal,special shape
Processing speed: 10-20 pcs per min.
Length tolerance: ±0.05mm
Control System: PLC
Motor power: 1.5/2.2KW*2
Power supply voltage: 380V 50HZ (three-phase four-wire) or customized
Machine weight: about 530kg
Feeding type: vibrator or manually feeding
Main use and application scope of ADHC-450 Double sides automatic chamfering machine
Scope of application: suitable for mass inner/outer chamfering,diameter expansion,diameter reducing production of pipe parts and rod parts.
Parts sample chamfered by ADHC-450 Double sides automatic chamfering machine
parts chafered by Double heads automatic chamfering machine
