Description

Description

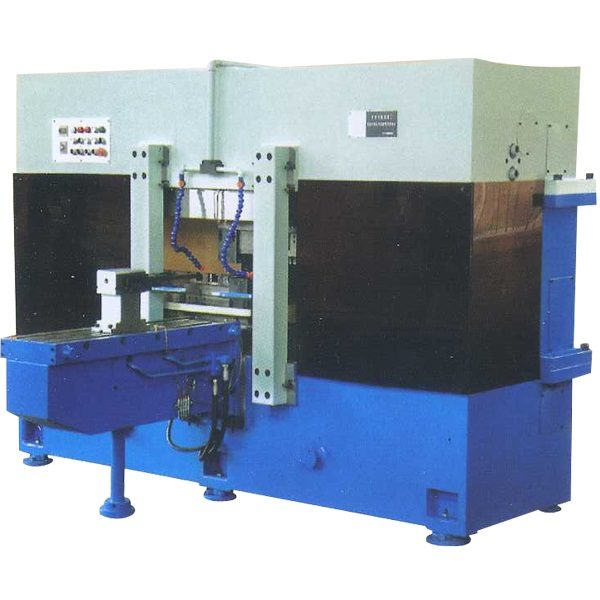

ALC915/CNC Spline Cold Rolling Machine/Torsion Bars Spline Machine
Machine Model Unit HLC915 HLC915 CNC
Max. process diameter MM ￠40 ￠50
Max. process width MM 90
Max. process module MM 1.27 1.27
Rolling knife max.size MM 915×100
Slide max. journey MM 1035 1160
Max. feeding speed MM/S 200 200
Total power KW ～27 ～34
Max. distance of knives installation MM 152.4 152.4
Dimension MM 3018×2426×1847 2960×2982×1918
Weight KGS 13380 14270

Features:

High acurracy,high speed,

The processing speed around 10 seconds one pace.

The hardness of raw bar the machine can process is equal or less than HRC28 for spline rolling.

Accessories and Services

Accessories and Services

Free Spare parts and Accessories with wedge anchor machine
1.Wire stand 1pcs
2.PKO swing arm(small) 4pcs
3.Cam fasten nut 3pcs
4.Forging die spare springs 10pcs
5.Output roller 2pcs
6.PKO roller 1pcs
7.Operation manual in english
8.Easy wear parts drawings.

Our services:
Pre-Sales Service
* Technical proposal and solution.
* Trial sample as per customer’s drawing after customer pay the die cost.
* Online video authentication machine work.

After-Sales Service
* Offer installation instruction of how to install the machine.
* Offer operation instruction of how to use the machine.
* Teach and train customer’s engineers how to operate machine in our factory.
* Regularly engineers visit customer’s factory site.
