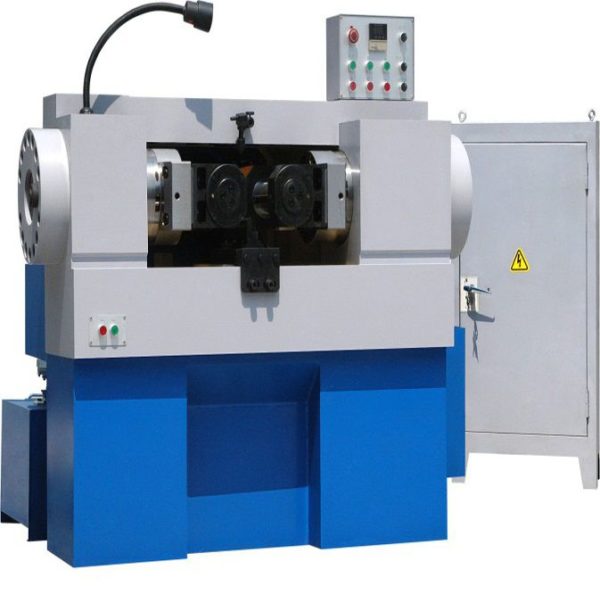

Automobile brake system hollow oil tubing connector auto feeding circling thread rolling machine

Automobile brake system hollow oil tubing connector auto feeding circling thread rolling machine

Description

Description

Salient Features
Widely used for shipbuilding, railway, bridge and aviation and aerospace industries.
Main Technical Parameters



Automobile brake system hollow oil tubing connector auto feeding circling thread rolling machine
 Max. rolling pressure KN 460
 Rolling thread range  Max. diameter Radial feed  mm 110
Axial feed mm 50 (85)
 Max pitch Radial feed mm 10
Axial feed mm 10
 Rolling die range  Max. outer diameter mm 240
 Aperture mm 85 (75)
 Max. width mm 200
 Max. center distance btw. main axis mm 340
 Main axis rotation r.p.m. 16.21.27.37.46.62
 Main axis inclination
Feed travel mm 0-16
 Center height mm 1000
 Gross power KW 18.2
 Dimensions(L*W*H) mm 1650*1720*1700
 Packing dimensions(L*W*H) mm 2350*2100*1950
 Weight Kg 5100
Accessories and Services

Accessories and Services

Free Spare parts and Accessories with wedge anchor machine
1.Wire stand 1pcs
2.PKO swing arm(small) 4pcs
3.Cam fasten nut 3pcs
4.Forging die spare springs 10pcs
5.Output roller 2pcs
6.PKO roller 1pcs
7.Operation manual in english
8.Easy wear parts drawings.

Our services:
Pre-Sales Service
* Technical proposal and solution.
* Trial sample as per customer’s drawing after customer pay the die cost.
* Online video authentication machine work.

After-Sales Service
* Offer installation instruction of how to install the machine.
* Offer operation instruction of how to use the machine.
* Teach and train customer’s engineers how to operate machine in our factory.
* Regularly engineers visit customer’s factory site.
