Description
Salient Features of AM1206 single axle NC centerless grinding machine
*Guide wheel adopts servo motor drive and transmission, can achieve stepless speed.
*The feed of the guide wheel frame is fed by roller rod servo motor , and the feed guide rail is plastic coated guide rail.
*The guide wheel main spindle adopts double row cylindrical roller bearing structure or traditional dynamic pressure tile structure , and the guide wheel has a double support structure.
*The grinding wheel has a double supporting structure, and the grinding wheel spindle adopts a dynamic and static pressure structure.
*The machine tool adopts grinding wheel frame fix design, and the guide wheel frame is movable layout.
Main use and application scope of AM1206 single axle NC centerless grinding machine
Mainly suitable for semi-automatic or fully automatic operation of various step, cone and cylindrical rotating surfaces on metal parts.The machine is suitable for small batch and batch production applications.
Working accuracy :
Roughness : Ra 0.16 um
Cylindricity : 0.002mm
Roundness : 0.001mm
AM1206 single axle NC centerless grinding machine specifications:
| AM-1206 | AM-1206S | |
| Standard workbench work diameter | Ø1 ~ Ø30mm | |
| Special workbench work diameter | Ø30 ~ Ø50 mm | |
| Grinding wheel size (outer diameter x width x inner diameter) | Ø305 x 150 x Ø120mm | |
| Adjust wheel size (outer diameter x width x inner diameter) | Ø205 x 150 x Ø90mm | |
| Grinding wheel speed | 1950 RPM | |
| Adjust wheel speed | 20 – 337 RPM (7 paragraphs) | 10 – 300 RPM stepless speed change |
| Wheel drive motor | 7.5 HP | |
| Adjustment wheel drive motor | 2HP | 2 HP servo motor |
| Hydraulic pump drive motor | 1 HP | |
| Cooling pump drive motor | 1/8 HP | |
| Adjust the wheel feed scale | 3.5 mm per revolution (Rev) 0.05mm per gra (Gra) | |
| Adjustment wheel fine adjustment | 0.1 mm per revolution (Rev) 0.001 mm per gra (Gra) | |
| Workbench | 7 mm (Rev) per revolution 0.05 mm (Gra) | |
| Workbench micro | 0.2 mm (Rev) per revolution 0.001 mm per gra (Gra) | |
| Trimming the hand wheel | 1.5 mm per revolution (Rev) 0.01 mm per gra (Gra) | |
| Adjust wheel tilt angle | +5° ~ -3° | |
| Adjust wheel rotation angle | ±5° | |
| Mechanical size (LxWxH | 1700 x 1500 x 1350 mm | |
| Net weight / gross weight | 1500 kgs / 1800 kgs | |
| Packing size (L x W x | 2250 x 1700 x 1600 mm | |
| * This specification data is for reference only and is subject to change without notice. | ||
| AM-1206NC | AM-1206CNC | |
| Standard workbench work diameter | Ø1 ~ Ø30 mm | |
| Special workbench work diameter | Ø30 ~ Ø50 mm | |
| Grinding wheel size (outer diameter x width x inner diameter) | Ø305 x 150 x Ø120 | |
| Adjust wheel size (outer diameter x width x inner diameter) | Ø205 x 150 x Ø90 | |
| Grinding wheel speed | 1950 RPM | |
| Adjust wheel speed | 20 – 337 RPM (7 paragraphs) | 10 – 300 RPM stepless speed change |
| Wheel drive motor | 7.5 HP | |
| Adjustment wheel drive motor | 2kw | 2 kw Servo motor |
| Hydraulic pump drive motor | 1 HP | |
| Cooling pump drive motor | 1/8 HP | |
| Adjust the wheel feed scale | 3.5 mm per revolution (Rev) 0.02 mm per gra (Gra) Adjust the round feed knife minimum resolution 0.0001mm | |
| Adjustment wheel fine adjustment | 0.1mm (Rev) per revolution 0.001 mm per gra (Gra) | |
| Worktable cutting scale | 7 mm (Rev) per revolution 0.05 mm (Gra) Workbench feed minimum resolution 0.0001mm | |
| Workbench fine-tuning scale | 0.2 mm (Rev) per revolution 0.001 mm per gra (Gra) | |
| Trimming infeed scale | 1.25 mm per revolution (Rev) 0.01 mm per gra (Gra) Trimming infeed minimum resolution 0.001mm | |
| Adjust wheel tilt angle | +5° ~ -3° | |
| Adjust wheel rotation angle | ±5° | |
| Mechanical size (LxWxH) | 1700 x 1500 x 1350 mm | |
| Net weight / gross weight | 1500 kgs / 1800 kgs | |
| Packing size (L x W x H) | 2250 x 1700 x 1600 mm | |
| * This specification data is for reference only and is subject to change without notice. | ||
Application of of AM1206 single axle NC centerless grinding machine1

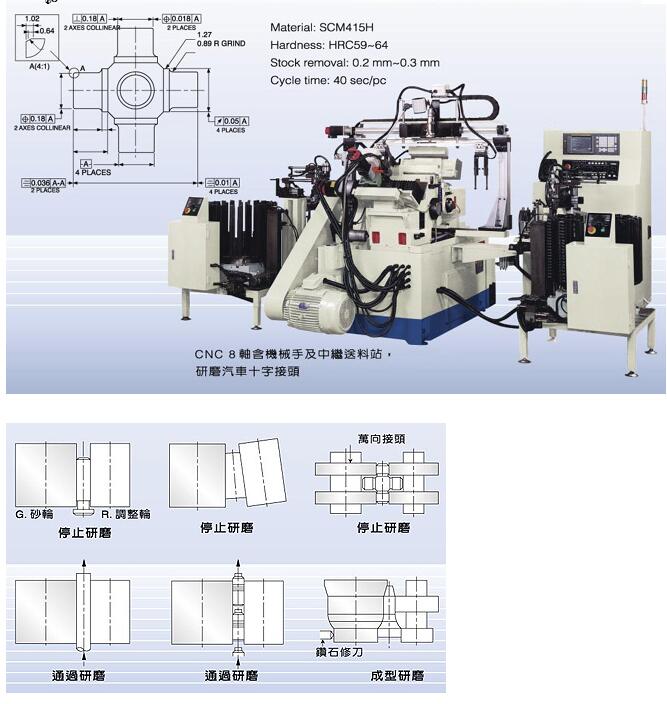

Application of of AM1206 single axle NC centerless grinding machine2
Standard accessories of AM1206 single axle NC centerless grinding machine
1. Grinding wheel and grinding wheel flange
2. Grinding wheel and grinding wheel flange
3. Pass the standard tool holder and blade
4. Stop the standard tool holder and blade
5. Toolbox and tools
6. Work light
7. Diamond repair knife
8. Passing the safety device
9. Flange puller
10. Horizontal screws and horizontal plates
11. Through the feed trough
Optional accessories of AM1206 single axle NC centerless grinding machine
1. Iron separator
2. Paper tape filter
3. Hydraulic separator
4. Material return device
5. Forming and finishing device
6. Long object feeding rack
7. Up and down feeding rack
8. By grinding automatic receiving device
9. By grinding automatic feeding device
10.Vibration feeding tray
11. Taper automatic forming grinding device
12. Stop forming automatic grinding device
13. Balance bar
14. Balance station
15. Out-of-line working outside diameter sensing measurement system
16. Grinding wheel automatic balance system
17. Oil temperature radiator
18. Rotary grinding wheel dressing device
19. Grinding wheel hanger
20. Grinding wheel dynamic balance corrector
21. Oil mist recovery machine
