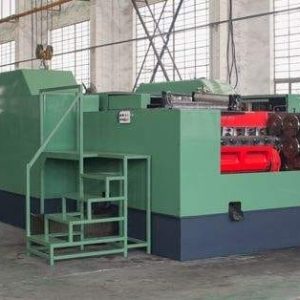

M12-1/2″ concrete drop in anchor bush sleeve making machine

M12-1/2″ concrete drop in anchor bush sleeve making machine

Description

Description

Running video of M12-1/2″ concrete drop in anchor bush sleeve making machine

Specifications of M12-1/2" concrete drop in anchor bush sleeve forging machine

ParametersUnitModel: AD6-12
Forging StationPCS6
Drop In Anchor Size3/8"-1/2"M10-M12
Max. Out DiameterMM17
Max. LengthMM50
Kick Out LengthMM70
Forging ForceTON150
OutputPPM70
Ram StrokeMM160
Dies PitchMM70
Main MotorHP40
Lub. MotorHP3
Appro.WeightTON10.5
Appro. SizeM3 .6*2.2*1.7
drop in anchor bush/sleeve made by the drop in anchor bush/sleeve forging machine

drop in anchor bush/sleeve made by the drop in anchor bush/sleeve forging machine

Machine Application

Manufactured products :M12-1/2″ concrete drop in anchor bush sleeve making machine can be used to produce drop in anchor bush and sleeve,also can be used to produce hex nut,set screws, sleeve part, special nuts.

Main Advantages of M12-1/2″ concrete drop in anchor bush sleeve making machine:
1. Effectivelyimprove production efficiency and reduce production process. Our equipment production capacity is remarkable, surpassesmost of manufacturers, greatly reduce production process, the standard productsare basically once formed, save time and effort.

2. Save cost.Due to the drastic reduction of production process,enterprises can save labor cost, manufacturing cost and time cost whileensuring production capacity. The combined cost is reduced by as much as 50%.

3. Productionsof machine are highly developable. All kinds of standard, non-standard products, as long asmolds are formed, they will have a mass production

4. Durable equipment life. Ourcompany is taiwanese-owned enterprises, machinery parts and components areimported from Taiwan, then assembled in the mainland, and ourcompany has always been strictly the quality pass,just want to supply our customers the best products.

drop in anchor bush sleeve forging machine structure

drop in anchor bush sleeve forging machine structure

Main Features of M12-1/2″ concrete drop in anchor bush sleeve making machine

NO.1.The machine body and main sliding block are processed through stress relieving after being forged to prevent from deformation and ensure durable mechanical stabolity.

NO.2.Machine body of high alloy steel imported is prossed through quenching treatment to ensure lasting resistance to wearing.

NO.3.Eash cam is precisely designed with computer and made in CNC process center to ensure correct and smooth cam common normal.

NO.4.Applying air compressor clutch,smooth and steady start current brake,realization of inching,single stroke and continuous running,besides inching way,main sliding block will stop at the utmost point ehen the machine stops every time to provide max. operation space.

NO.5.Circumferential flushing trimming.

NO.6.Synchronic reverse of plunger die ejecting with primary slipway to ensure the product shall be temporarily kept in the plunger die and prenvent from falling our by the plunger die.

NO.7.We can attach with frequency converter with stepless speed control.

NO.8.PLC digital control inspection device enabling automatic inspection of the working state and failure alarming display.

NO.9.Tongs of swing type and rotary type provide with pneunatic mechanism, clamping stably.

NO.10. Running in a high automatization and intellectualization,no pollution

Other parts can be made by drop in anchor bush sleeve forging machine

Other parts can be made by drop in anchor bush sleeve forging machine
