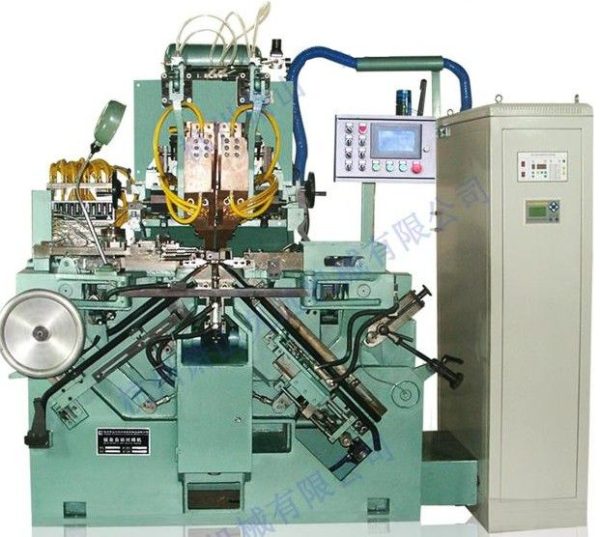

AMW-10 Automatic lifting ring chains weld assembling machine

Description

Salient Features of AMW-10 Automatic lifting ring chains weld assembling machine

Automatic chain butt welding machine is used to weld low-carbon alloy steel lifting chains by resistance twice current flow method on the basis of German advanced technology, available for manual, inching and semiautomatic operation of nineteen procedures including round chain delivery, rotating, welding, upsetting and burring under encoder and PLC control. It is featured by stable and reliable action, convenient maintenance and complete fault protection, and its main performance is comparable to foreign similar products. The product is mainly used to weld lifting round-link chain as well as skid chain, binding chain and mine chain, with remarkable effect and grade 80 attainable.

1. Full automatic design with high efficiency.
2. Easy to operate and adjustment.
3. Advanced PLC control system optional.

Main parameters of AMW-10 Automatic lifting ring chains weld assembling machine

	Machine model	AMW-10
	Work scope (welding diameter)	φ6-φ10mm
	Chain link from the	18-50mm
	Production efficiency	30-50 (ring/points)
	transformer ：	New epoxy resin casting seal water temperature control
	Continuous rated load rate	20%
	Nominal capacity	125KVA
	motor ：
	Rated power	4kw
	Rated speed	Stepless speed regulation (with brake)
	controller	PLC
	Rotary encoder	600 (turn/points)
	Subprime no-load voltage	4-10 adjustable (V)
	Cooling water:
	pressure	0.15——0.3（Mpa）
	consumption	20 (l/points)
	temperature	15≤T≤25（℃）
	气动：
	Air pressure for	≥0.65（Mpa）
	Work pressure	0.45≤P≤0.65（Mpa）
	Air consumption	8 (lisheng each work cycle)
	power	130（kw）
	Machine size	2500mm*1400mm*19500mm
	Machine weight	≈3T
