AMY-Z vibroscope laser welding machine

AMY-Z vibroscope laser welding machine

Description

Description

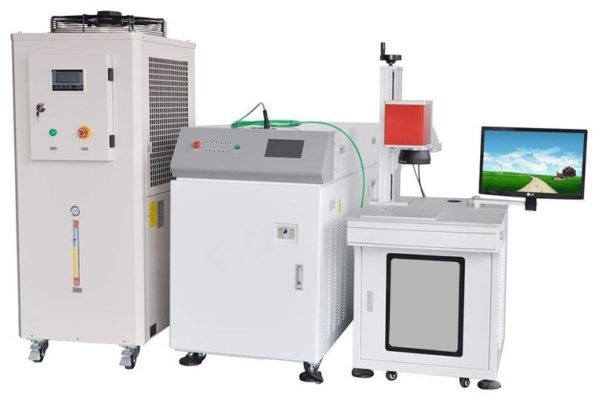

Features of AMY-Z vibroscope laser welding machine

Fiber optic vibration-mirror laser welding machine is a kind of laser welding equipment which coupling high-energy laser beam into fiber and then collimating to parallel light through collimating lens after distance transmission, and then focusing on the workpiece to perform welding. Electro-optic conversion efficiency is high, the closed-loop feedback control laser power, laser energy to avoid the xenon lamp aging influence on laser power, output is more stable than current feedback type equipment, pulse shape can be arbitrary set 16 segment, most semiconductor red indicator, can be suitable for all kinds of complicated shape workpiece processing, reduce the requirement of jig.

Specifications of AMY-Z vibroscope laser welding machine

Type AMY-Z200W AMY-Z300W AMY-Z500W
Laser wavelength 1064nm 1064nm 1064nm
Output optical power 200W 300W 500W
Maximum pulse energy 70J 80-90J 90-110J
Maximum peak power 6.5KW 7KW 8KW
Pulse width 0.3-15ms 0.3-15ms 0.3-15ms
Globule size 0.4-2mm 0.4-2mm 0.4-2mm
Pulse repetition rate 1—100HZ 1—100HZ 1—100HZ
Continuous pulse width per unit time (1s) 200ms/s 200ms/s 200ms/s
Spectroscopic methods Precision energy or high speed time spectrophotometry
Closed loop feedback control Real-time control of power negative feedback with arbitrary waveform
Energy fluctuation <±3%
Number of optical fibers ≤4(Standard single light path)
Aiming mode Laser diode red light indicates CCD selection
Cooling way External chiller (with internal circulation)
Power consumption 6.5KW 15KW 21KW
Power Supply AC220V-380V±15% 50/60Hz AC380V±15% 50/60Hz AC380V±15% 50/60Hz
Size of Host Machine 1460*660*1080mm 1460*660*1080mm 1460*660*1080mm

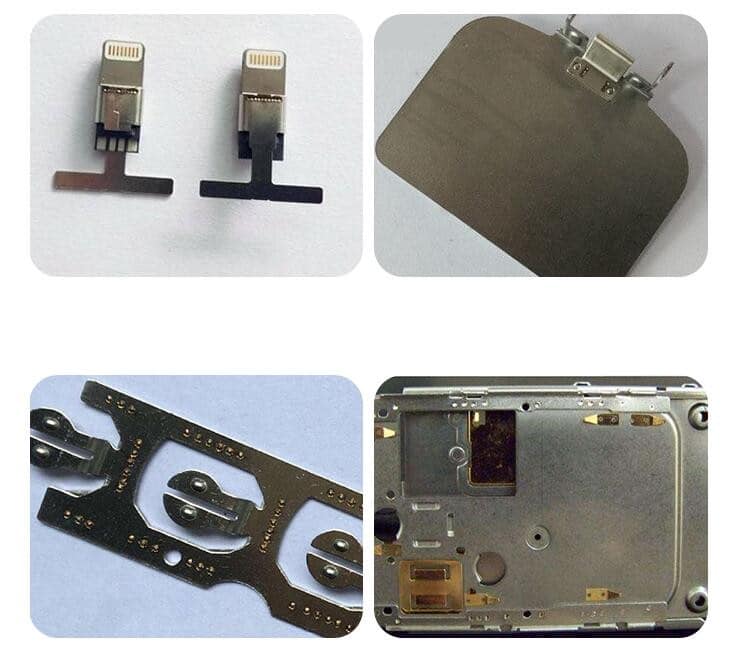

Welded Samples of AMY-Z vibroscope laser welding machine

Samples welded by AMY-Z vibroscope laser welding machine

Samples welded by AMY-Z vibroscope laser welding machine
