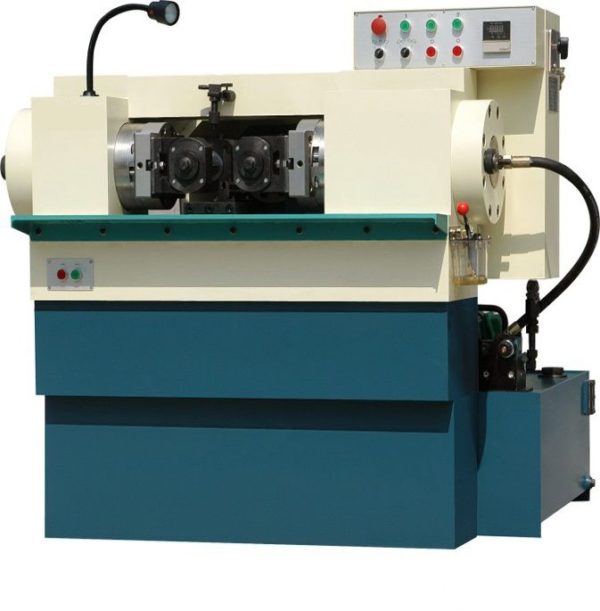

APD28-15 Hydraulic Circling Thread Rolling Machine

APD28-15 Hydraulic Circling Thread Rolling Machine

Description

Description

Salient Features

Expanded diameter of center hole of gearbox at rear end of the machine for excellent through possibility required by processing super diameter and length workpieces at axial direction.
Main Technical Parameters



 APD28-15 Thread Rolling Machine
 Max. rolling pressure KN 150
 Rolling thread range  Max. diameter Radial feed  mm 60
Axial feed mm 65
 Max. pitch Radial feed mm 4
Axial feed mm 5
 Rolling die range  Max. outer diameter mm 178
 Aperture mm 54
 Max. width mm 120
 Max. center distance btw. main axis mm 240
 Main axis rotation r.p.m. 33.42.54.70
 Main axis inclination
 Feed travel mm 0-12
 Center height mm 900
 Gross power KW 7,2
 Dimensions(L*W*H) mm 1500*1440*1400
 Packing dimensions(L*W*H) mm 1800*1750*1900
 Weight Kg 2500
Accessories and Services

Accessories and Services

Free Spare parts and Accessories with wedge anchor machine
1.Wire stand 1pcs
2.PKO swing arm(small) 4pcs
3.Cam fasten nut 3pcs
4.Forging die spare springs 10pcs
5.Output roller 2pcs
6.PKO roller 1pcs
7.Operation manual in english
8.Easy wear parts drawings.

Our services:
Pre-Sales Service
* Technical proposal and solution.
* Trial sample as per customer’s drawing after customer pay the die cost.
* Online video authentication machine work.

After-Sales Service
* Offer installation instruction of how to install the machine.
* Offer operation instruction of how to use the machine.
* Teach and train customer’s engineers how to operate machine in our factory.
* Regularly engineers visit customer’s factory site.
