ASF-230 Automatic Compression Spring Production Machine

ASF-230 Automatic Compression Spring Production Machine

Description

Description

Salient Features of ASF-230 Automatic Compression Spring Production Machine

  1. Full automatic design with high efficiency.
  2. Easy to operate and adjustment.
  3. Advanced PLC control system optional.

1. Adopts computer control systems imported from Taiwan and imported servo motors;

2.the computer is english interface, easy to operate, accurate positioning, the computer can control three to eight servo motors, all motors can be operated synchronously or separately;

3.with precision detection and tracking equipment, if there are unqualified products can automatically stop;

4. according to the working conditions on the fluorescent screen, the outer diameter and angle of the product can be corrected at any time;

5. Mechanical automatic parts are automatically lubricated for oil supply design to ensure long-term operation of the equipment;

6.when the wireless, disconnected, entangled line the machine will automatic shutdown and the automatic acceleration of the wire stand functions making production easier and more effective;

7. Suitable for the production of steel wire threaded insert sleeves, double torsion springs, straight springs, pagoda springs, tension springs, rectangular springs, wire forming, steel vortex springs, springs and various fancy springs, complex and highly difficult shaped springs ( Computer Compression Spring Production Machine).

Parameters of ASF-230 Automatic Compression Spring Production Machine

Spring steel wire diameter 0.8-3.0mm
Rollable spring maximum outer diameter Maxф30mm
Wire feed command value ±0.01~±9999.99
Maximum wire feed speed 0~110m/min
Cam command value ±0.10°~±359.90°
Max. speed 560 RPM
Wire servo motor 3.8KW
Cam servo motor 3KW
Color Customized
power supply 380V±10%V50HZ
size 960X800X1400mm
weight 1200Kg

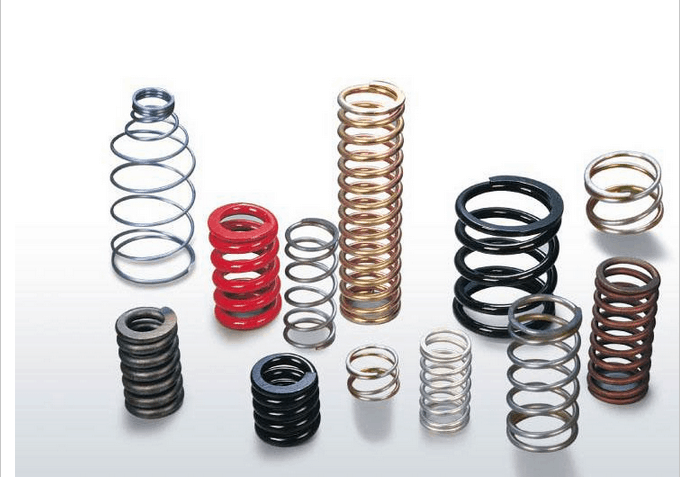

Compression springs made by ASF-230 Automatic Compression Spring Production Machine

Compression springs made by ASF-230 Automatic Compression Spring Production Machine
