ASF-25T 12 Axles Camless High Speed Spring Production Machine

ASF-25T 12 Axles Camless High Speed Spring Production Machine

Description

Description

Salient Features of ASF-25T 12 Axles Camless High Speed Spring Production Machine

  1. Full automatic design with high efficiency.
  2. Easy to operate and adjustment.
  3. Advanced PLC control system optional.

1. 12 sets of servo motors independently control eight stations, transfer lines, cores, and wires. The machine is fast (more than 50% faster than cam machines ). It is suitable for manufacturing various high-precision shaped wire forming, tension spring, and twisting. Spring, double torsion spring, etc., the production speed is fast (more than 10% faster than similar products ).

2. The servo motor precision reducer is directly connected to the transmission mode to ensure high precision, long life and high stability, and overcome the shortcomings of low stability of the synchronous belt drive.

3. The tool holder adopts parallel double-rail sliders to maintain high precision and high rigidity for a long time.

4. Simple operation, friendly interface, the computer automatically detects the health status and alarm of the whole machine.

5. High-precision wire box gear manufacturing process, maintaining wire feeding accuracy for a long time.

6. Wide range of applications: electronics, toys, electrical appliances, sports equipment, automobiles, tableware, supermarkets, stationery, instruments, meters, hair accessories, handicrafts.

7. High-torque planetary reducer for transmission with the best stability and accuracy. The main components are imported for higher life and long-term accuracy.

Parameters of ASF-25T 12 Axles Camless High Speed Spring Production Machine

model ASF-25T
Wire diameter 0.2-2.5mm
Maximum wire feed command value 10000.00mm
Minimum wire feed command value 0.01mm
Maximum wire feed speed 100m/min
Maximum wire length Infinite length
Number of axes 12 axis
Servo motor output total power 13000W
Input voltage 380V
Computer specification Pentium Industrial Computer
Process data storage More than 2000
Pneumatic system Air pressure 5-6KG/cm
Probe 3
Machine size thickness 1700mm
width 1400mm
height 1900mm
Machine weight 1800KG

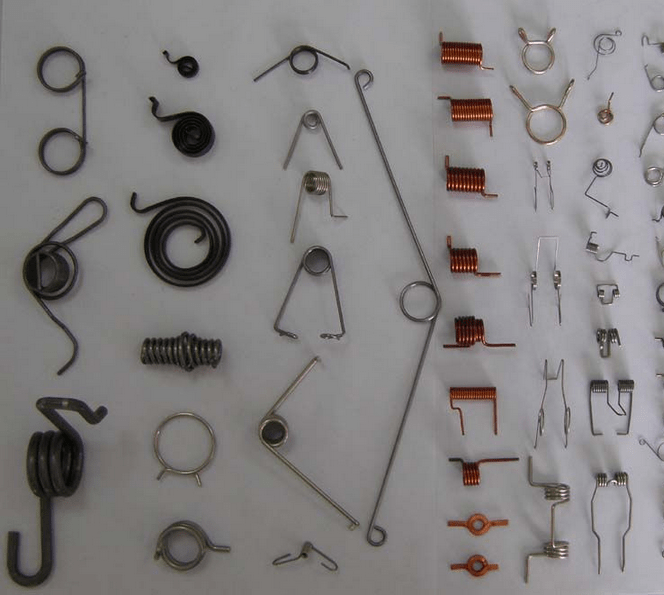

Spring parts made by ASF-25T 12 Axles Camless High Speed Spring Production Machine

Spring parts made by ASF-25T 12 Axles Camless High Speed Spring Production Machine
