Salient Features of ASF-335C Cam High Speed Spring Forming Machine
- Full automatic design with high efficiency.
- Easy to operate and adjustment.
- Advanced PLC control system optional.
1. Twelve groups of servo motors independently control eight stations, turn core, feed line, turn, turn. Quick adjustment (more than 50% faster than cam machine, more than 10% faster than similar products)
2. Imported servo motor and precision ball screw drive mode ensure high precision, long life and high stability.
3. The tool holder adopts a parallel heavy-duty double-rail slider to ensure high rigidity.
4. Simple operation, friendly interface, the computer automatically detects the health status and alarm of the whole machine.
5. High-precision wire box gear manufacturing process, maintaining wire feeding accuracy for a long time.

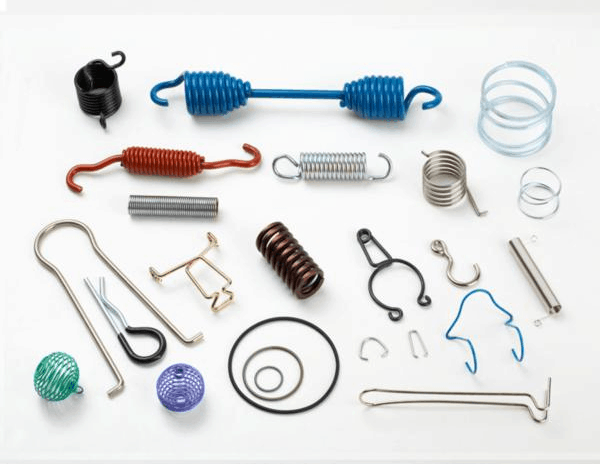

6. Wide application core circumference, suitable for producing all kinds of special-shaped springs, wire forming, tension springs, compression springs, torsion springs, flat springs, spiral coil springs, etc.
Parameters of ASF-335C Cam High Speed Spring Forming Machine
|Rollable material wire diameter||1.01.0-ф3.5mm (iron wire ф1.0-ф5.0mm)|
|Rollable spring maximum outer diameter||Maxф80mm|
|Wire feed command value||±0.01～±9999.99|
|Wire feed speed||0～110m/min|
|Cam command value||±0.10°～±359.90°|
|Cam speed||1 to 60 RPM|
|Wire servo motor||4.5KW|
|Cam servo motor||4.5KW|
|Rotary core servo motor||1.5KW|
