Description
Salient Features of ASF-345C Cam High Speed Spring Forming Machine
- Full automatic design with high efficiency.
- Easy to operate and adjustment.
- Advanced PLC control system optional.
1. Twelve groups of servo motors independently control eight stations, turn core, feed line, turn, turn. Quick adjustment (more than 50% faster than cam machine, more than 10% faster than similar products)
2. Imported servo motor and precision ball screw drive mode ensure high precision, long life and high stability.
3. The tool holder adopts a parallel heavy-duty double-rail slider to ensure high rigidity.
4. Simple operation, friendly interface, the computer automatically detects the health status and alarm of the whole machine.
5. High-precision wire box gear manufacturing process, maintaining wire feeding accuracy for a long time.
6. Wide application core circumference, suitable for producing all kinds of special-shaped springs, wire forming, tension springs, compression springs, torsion springs, flat springs, spiral coil springs, etc.
Parameters of ASF-345C Cam High Speed Spring Forming Machine
| Rollable material wire diameter | 1.01.0-ф4.2mm (iron wire ф1.0-ф6.0mm) |
| Rollable spring maximum outer diameter | Maxф80mm |
| Wire feed command value | ±0.01～±9999.99 |
| Wire feed speed | 0～110m/min |
| Cam command value | ±0.10°～±359.90° |
| Cam speed | 1 to 60 RPM |
| Wire servo motor | 5.5KW |
| Cam servo motor | 5.5KW |
| Rotary core servo motor | 1.5KW |
| power supply | 380V±10%V50HZ |
| size | 1320X730X1720mm |
| weight | 2300kg |

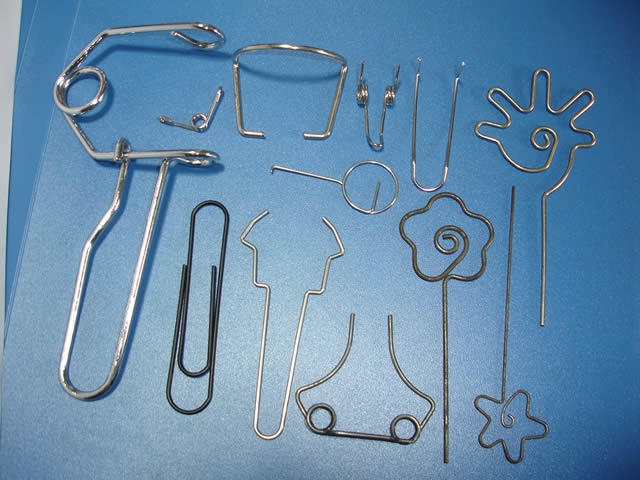

Wire parts made by ASF-345C Cam High Speed Spring Forming Machine
