ASF-80T Camless High Speed Spring Fasteners Production Machine

ASF-80T Camless High Speed Spring Fasteners Production Machine

Description

Description

Salient Features of ASF-80T Camless High Speed Spring Fasteners Production Machine

  1. Full automatic design with high efficiency.
  2. Easy to operate and adjustment.
  3. Advanced PLC control system optional.

1. Twelve groups of servo motors independently control eight stations, turn core, feed line, turn, turn. Quick adjustment (more than 50% faster than cam machine, more than 10% faster than similar products)

2. Imported servo motor and precision ball screw drive mode ensure high precision, long life and high stability.

3. The tool holder adopts a parallel heavy-duty double-rail slider to ensure high rigidity.

4. Simple operation, friendly interface, the computer automatically detects the health status and alarm of the whole machine.

5. High-precision wire box gear manufacturing process, maintaining wire feeding accuracy for a long time.

6. Wide application core circumference, suitable for producing all kinds of special-shaped springs, wire forming, tension springs, compression springs, torsion springs, flat springs, spiral coil springs, etc.

Parameters of ASF-80T Camless High Speed Spring Fasteners Production Machine

model ASF-80T
Wire diameter 2.0-8.0mm
Maximum wire feed command value 10000.00mm
Minimum wire feed command value 0.01mm
Maximum wire feed speed 80m/ min
Maximum wire length Infinite length
Number of axes 12 axis
Servo motor rated output total power 50KW
Input voltage 380V
Computer specification Pentium Industrial Computer
Process data storage More than 2000
Pneumatic system Air pressure 5-6KG/cm
Probe 3
Machine size length 3150mm
width 2130mm
height 2400mm
Machine weight 7000KG

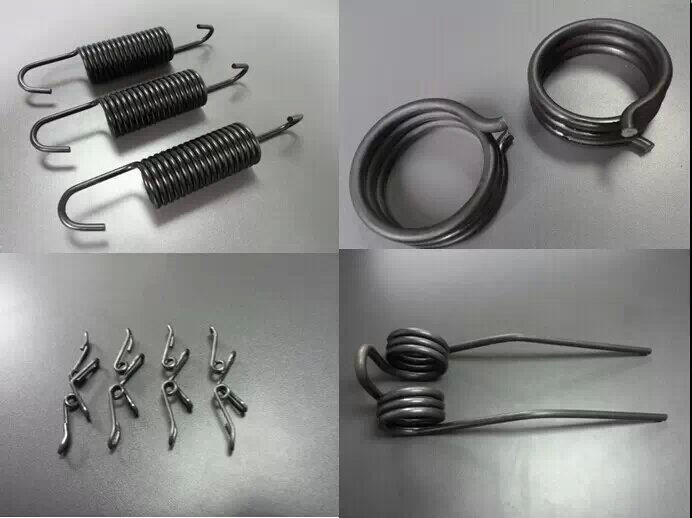

Parts made by ASF-80T Camless High Speed Spring Fasteners Production Machine

Parts made by ASF-80T Camless High Speed Spring Fasteners Production Machine
