Description
Salient Features
Fixing cylinder of the same property at both ends of the machine, free of hydraulic system while a device for only axial through rolling.
Compact, flexible and efficient for rolling of gear rack (length thread).
Main Technical Parameters
|

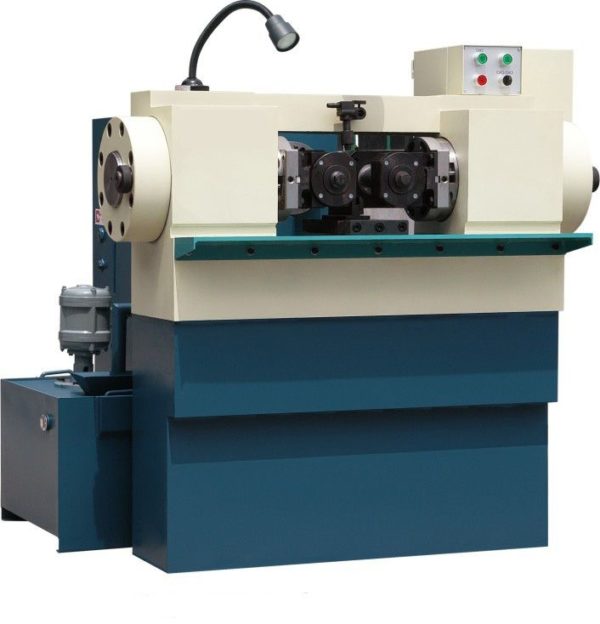

AZP28-M20 Axial Thread Rolling Machine
|
|||||
| Rolling thread range | Max. diameter | Radial feed | mm | 20 | |
| Max. pitch | Axial feed | mm | 2.5 | ||
| Rolling die range | Max. outer diameter | mm | 175 | ||
| Aperture | mm | 54 | |||
| Max. width | mm | 80 | |||
| Max. center distance btw. main axis | mm | 196 | |||
| Main axis rotation | r.p.m. | 42.53.68.87 | |||
| Main axis inclination |  |
||||
| Center height | mm | 900 | |||
| Gross power | KW | 4.2 | |||
| Dimensions (L*W*H) | mm | 1176*1160*1200 | |||
| Packing dimensions (L*W*H) | mm | 1650*1300*1600 | |||
| Weight | Kg | 1500 | |||
