Big diameter thick rod hydraulic thread rolling machine

Big diameter thick rod hydraulic thread rolling machine

Description

Description

Salient Features

Super hydraulic power and compact structure design for performance, energy and cost efficiency in processing of workpieces.

Wider application for processing of high strength threads, such as anchor rods of coal mining machine and automobile parts.
Main Technical Parameters

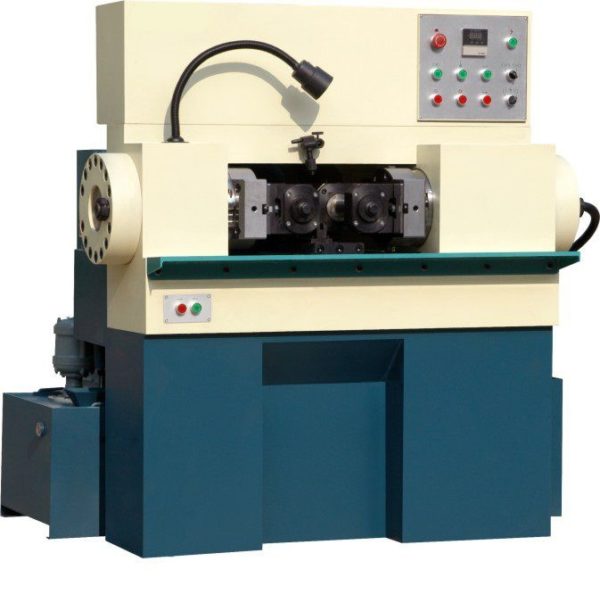

APA28-20 Thread Rolling Machine
 Max. rolling pressure KN 200
 Rolling thread range  Max. diameter Radial feed  mm 70
Axial feed mm 45
 Max. pitch Radial feed mm 5
Axial feed mm 6
 Rolling die range  Max. outer diameter mm 178
 Aperture mm 54
 Max. width mm 140
 Max. center distance btw. main axis mm 240
 Main axis rotation r.p.m. 28.35.45.56
 Main axis inclination
Feed travel mm 0-12
 Center height mm 900
 Gross power KW 11
 Dimensions(L*W*H) mm 1550*1460*1600
 Packing dimensions(L*W*H) mm 1800*1750*1900
 Weight Kg 2800
Accessories and Services

Accessories and Services

Free Spare parts and Accessories with wedge anchor machine
1.Wire stand 1pcs
2.PKO swing arm(small) 4pcs
3.Cam fasten nut 3pcs
4.Forging die spare springs 10pcs
5.Output roller 2pcs
6.PKO roller 1pcs
7.Operation manual in english
8.Easy wear parts drawings.

Our services:
Pre-Sales Service
* Technical proposal and solution.
* Trial sample as per customer’s drawing after customer pay the die cost.
* Online video authentication machine work.

After-Sales Service
* Offer installation instruction of how to install the machine.
* Offer operation instruction of how to use the machine.
* Teach and train customer’s engineers how to operate machine in our factory.
* Regularly engineers visit customer’s factory site.
