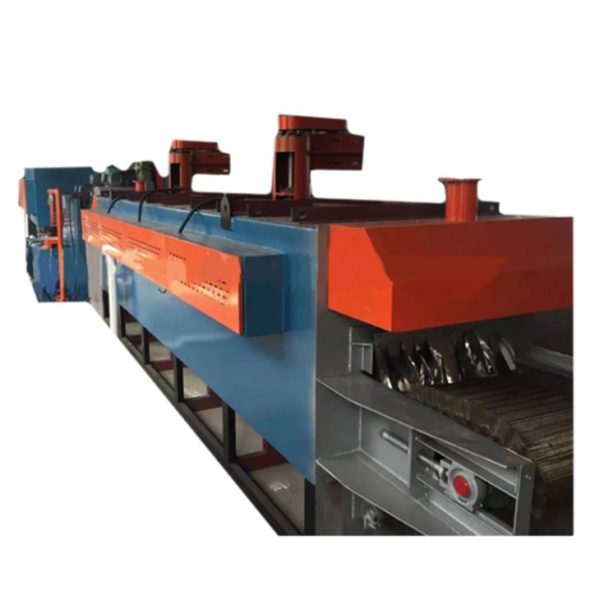

Introduction of Electric Heating Quenching Heat Treatment Furnace

The Electric Heating Quenching Heat Treatment Furnace consists of work parts chain lifting type /magnetic material feeding type/vibrating type loading machine-front decreasing washing tank/pre-washing machine-Continuous Mesh-belt Conveyor & Gas controlled quenching/hardening/carburizing furnace-Quenching cooling oil(water) tank-Rear degreasing & washing tank/ rear washing machine-Continuous mesh belt conveyor tempering furnace-Double-layer dyeing tank(optional)-Automatic furnace operation and temperature control cabinet, it can automatically complete the carburizing, quenching, tempering and blacking dyeing process. Key parts used imported famous brands products, manufacturing and assembly ability reach the domestic advanced level.

Available Processes: carburizing , quenching,tempering,dyeing,Austemper, martemper, salt quenching, None oxy quenching

Protective Gas: according to process required

Parts to be treated: Such as Standard parts, Hand tools, Hardware, automatic small parts, bicycle parts,Bearing, bolt, nut, chain, knuckle, clip etc

Heating Mode: Electricity

Product Parameter of Electric Heating Quenching Heat Treatment Furnace

Model Type Main Furnace Power(KW) Complete Line Power Rated Temperature(℃) TemperatureControl Zone Carbon Control Zone Effective Working SizeLxWxH(mm) Quenching Production Capacity(kg/h) Carburizing Production Capacity(kg/h)
NAPM60-9 60KW 95KW 950 3 1 2400×500×80 100 80
NAPM80-9 80KW 135KW 950 3 1 3200×500×80 180 140
NAPM 100-9 100KW 165KW 950 3 1 4100×500×80 200 160
NAPM 140-9 140KW 240KW 950 4 1 4400×600×80 250 200
NAPM 170-9 170KW 280KW 950 5 2 6700×500×80 350 300
NAPM 180-9 180KW 290KW 950 5 2 5800×600×80 380 320
NAPM 200-9 200KW 320KW 950 5 2 6700×600×80 420 360
NAPM 240-9 240KW 380KW 950 5 2 6700×800×80 500 420
Model Treating Capacity Per/Hour to Middle or High Carbon Steel
(kg)
Treating Capacity Per/Month to Middle or High Carbon Steel
(Tons)
Treating Capacity Per/Hour to Low Carbon Steel
(kg)
Treating Capacity Per/Month to Low Carbon Steel
(Tons)
Whole-set Total Power Output
(kw)
Whole-set Power Used
Middle Carbon 85% Low Carbon 70%
(kw)
Whole-set Total Length
(kw)
NAPM805-A 124-138 77-86 48-69 30-43 183-177 150/123 25495
NAPM805-1 198-220 123-138 84-120 52-75 218-203 173/142 27995
NAPM805-2 352-385 220-242 204-240 127-150 320-290 247/203 31495
NAPM805-3 414-483 259-299 313-350 195-218 393-353 300/247 31995
NAPM805-4 506-572 316-358 413-463 258-289 464-439 373/307 31995
NAPM805-5 720-780 450-486 546-598 341-373 543-513 436/359 35995
NAPM805-6 1000-1100 624-686 833-917 520-572 655-615 522/430 39430
NAPM805-6S 1200-1320 749-824 999-1100 624-686 749-688 636/481 43430
NAPM805-7 1250-1375 780-858 1040-1146 649-715 759-683 645/478 39430
NAPM805-7S 1500-1650 936-1030 1249-1375 779-858 886-797 753/558 43430

※Monthly (26 working days tons)

Features of Electric Heating Quenching Heat Treatment Furnace

1)Stable quality and durable performance and output.

2)Efficient electric energy saving and save the production cost.

3)Excellent design and quality to improve the life of the heat radiant tube lift and make it easily to maintenance and replace.

4)Widely used in various industries of domestic and abroad.

5)Furnace lining is mainly made of light fiber which has the characteristics of fast brickwork and small volume.

6)The whole furnace line with automatic and reliable control system, alarm system and safety system.

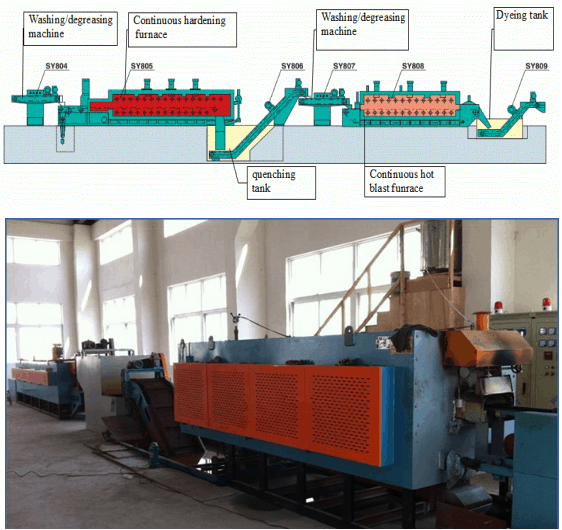

Flow chart of Electric Heating Continuous Mesh Belt Quenching and Tempering Heat Treatment Furnace
Flow chart of Electric Heating Continuous Mesh Belt Quenching and Tempering Heat Treatment Furnace

Parts treated by Electric Heating Continuous Mesh Belt Quenching and Tempering Heat Treatment Furnace

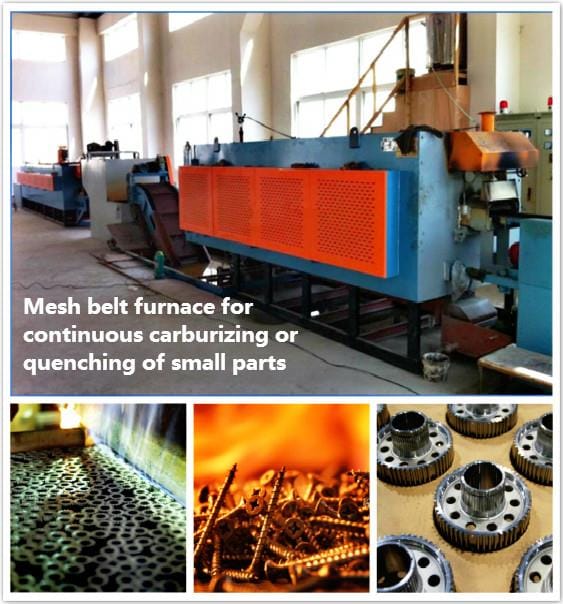

Electric Heating Continuous Mesh Belt Quenching and Tempering Heat Treatment Furnace working

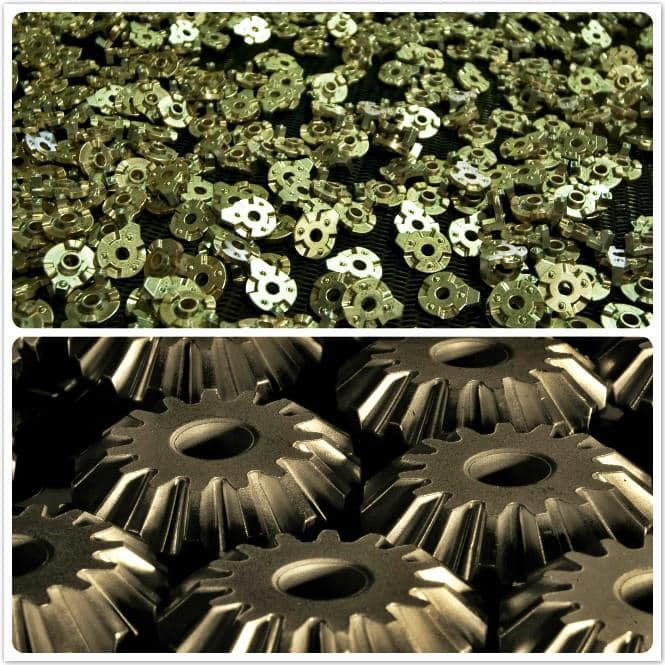

Parts treated by Electric Heating Continuous Mesh Belt Quenching and Tempering Heat Treatment Furnace

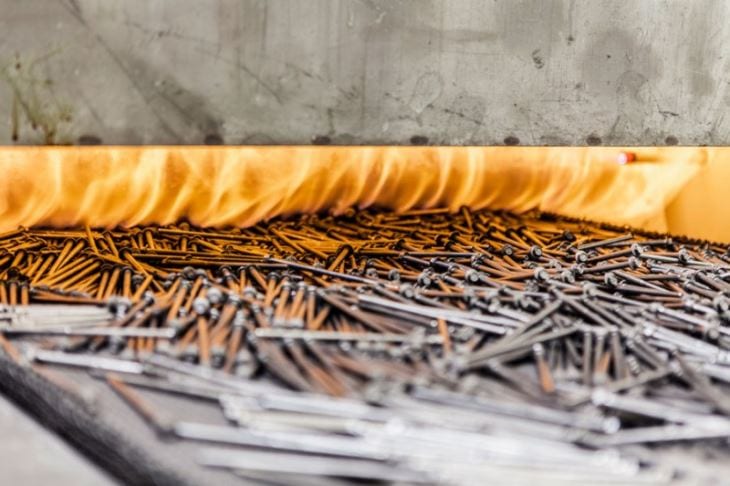

Parts treated by Electric Heating Continuous Mesh Belt Quenching and Tempering Heat Treatment Furnace 2
