Hex flange swallowtail self tapping screw making machine

Hex flange swallowtail self tapping screw making machine

Description

Description

Running video of Hex flange swallowtail self tapping screw making machine

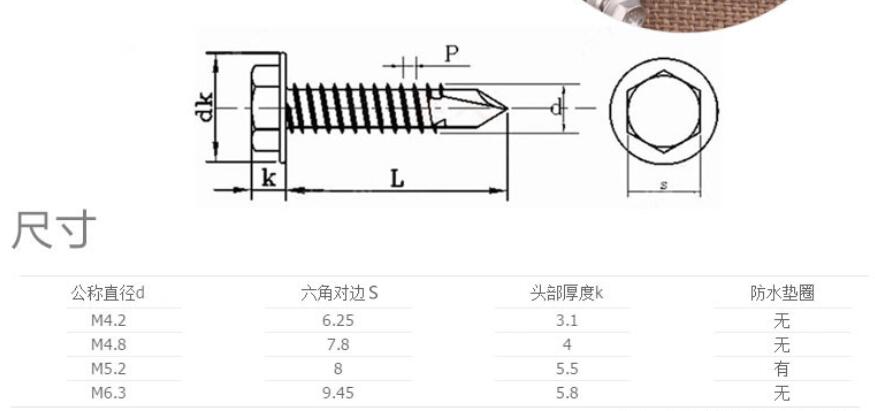

Hex flange swallowtail screw size and drawing

Hex flange swallowtail screw size and drawing

Features of Hex flange swallowtail self tapping screw making machine

The machine is special two die four blows designed for making carbon steel or stainless steel hex flange self tapping screws.

The whole machine adopts semi-closed design, reasonable structure, beautiful appearance, high speed, low noise and low energy consumption.

A wide range of products can be manufactured by the machine by change desinging of mold,such as plug pin,welding rivet with tip, various screws, hexagon bolt, sockets bolts, shafts shape parts, multiple steps parts, large head parts,short rod parts, full hollow pull rivet nails, etc.

Parameters of Hex flange swallowtail self tapping screw making machine

Specifications of Stainless steel hex flange bolts making machine

Product ODMax.lengthOutputMain die sizePunch die sizeCutter die sizeMotorsWeightDimensionModel
Φ3-6MM40MM70PCS/MINφ46X857MMφ31MMΦ19MM3.0+0.25KW35T2.2*1.24*1.16mAH24-6

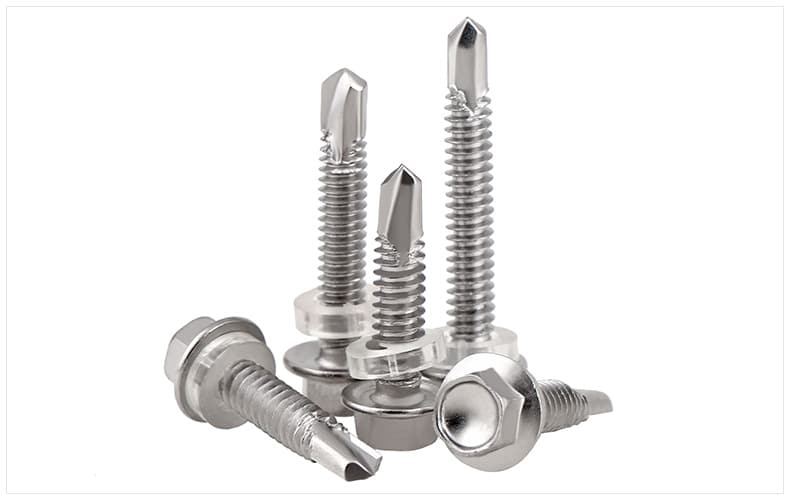

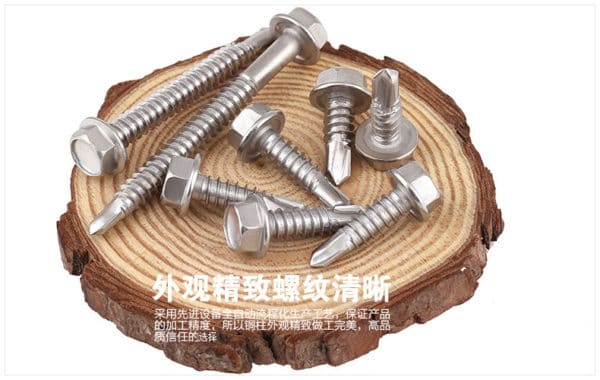

Finished Hex flange swallowtail screws

Finished Hex flange swallowtail screws

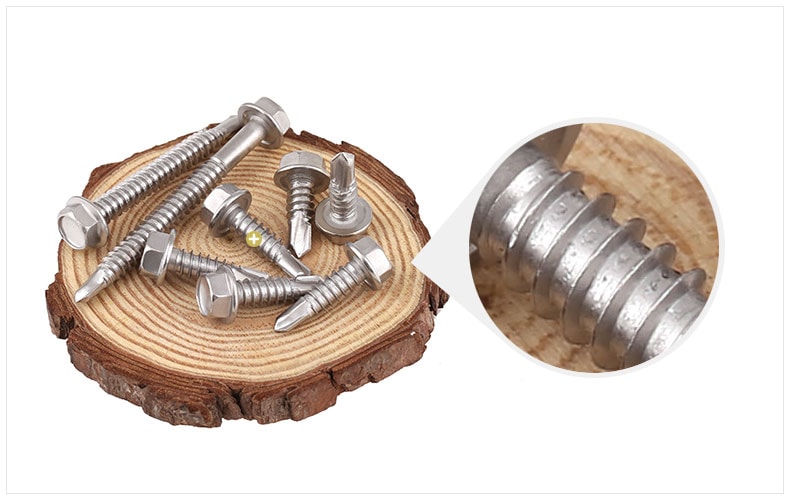

Finished Hex flange swallowtail bolts screws

Finished Hex flange swallowtail bolts screws
