Description
M8 toggler drywall anchors screw forming machine(Taiwan high speed type)
Specifications of M8 Automatic high speed bolt heading machine
| Model | Max.dia. (mm) | Max.length (mm) | Main die(mm) | Punch die(mm) | Shear die(mm) | PCS/min | Main motor (KW) |
|---|---|---|---|---|---|---|---|
| AH-8 | 8 | 60 | ∮ 60*118 | ∮ 38*107 | 28 | 60-120 | 7.5 |
| AH-8L | 8 | 100 | ∮ 60*118 | ∮ 38*107 | 28 | 60-85 | 7.5 |

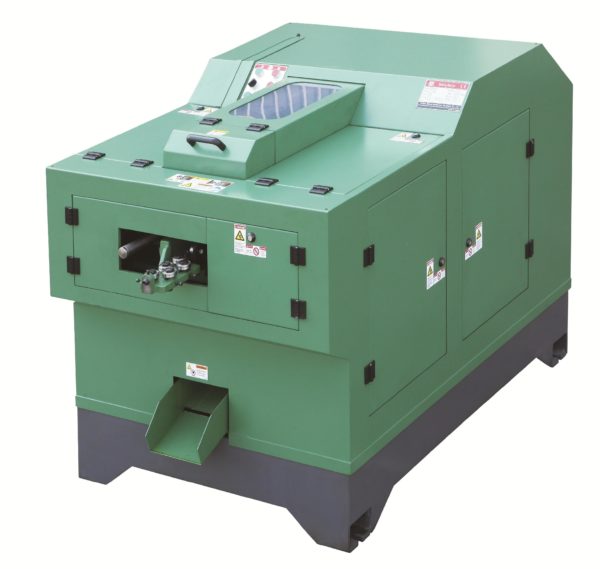

High speed heading machine with screw conveyor

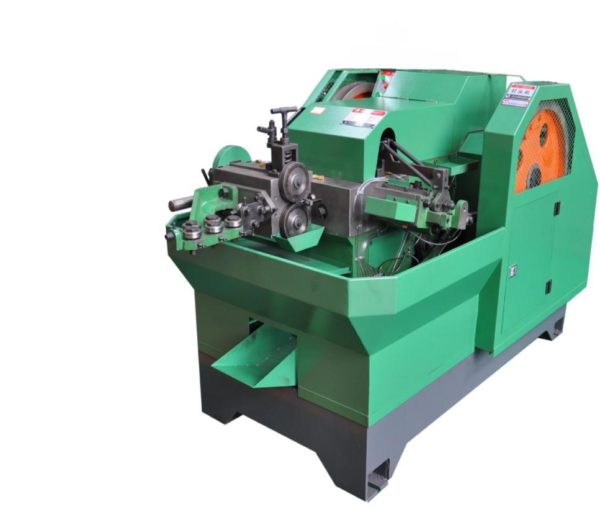

High speed heading machine with accessories and auto checker function optional
