Description
alient Features

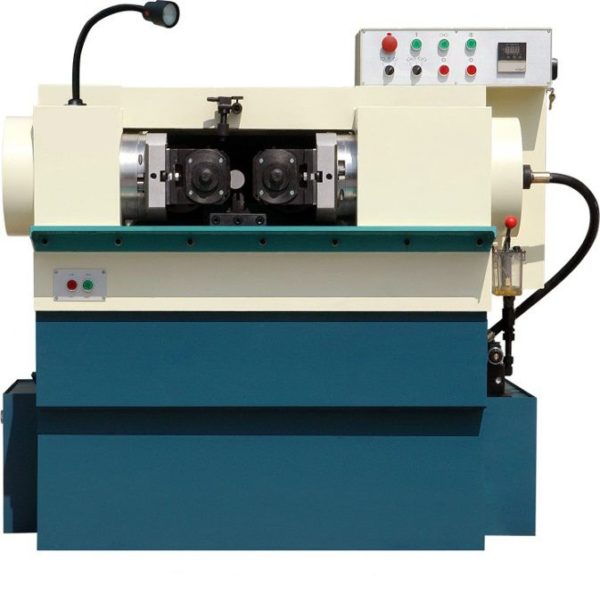

Driven by a hydraulic system, oil cylinder at right side of the machine operates to roll workpieces at radial or axial directions; the machine is structured by a cast frame for high stiffness and precision.
Economic, wider application, especially for processing of all kinds of threads, endless screws of small modulus, or knurling, barreling and straightening.
Main Technical Parameters
|
Manual loading special cap parts circling thread rolling machine with parts kick out device
|
|||||
| Max. rolling pressure | KN | 150 | |||
| Rolling thread range | Max. diameter | Radial feed | mm | 60 | |
| Axial feed | mm | 45 | |||
| Max. pitch | Radial feed | mm | 4 | ||
| Axial feed | mm | 5 | |||
| Rolling die range | Max. outer diameter | mm | 178 | ||
| Aperture | mm | 54 | |||
| Max. width | mm | 120 | |||
| Max. center distance btw. main axis | mm | 240 | |||
| Main axis rotation | r.p.m. | 28.35.45.56 | |||
| Main axis inclination |  |
||||
| Feed travel | mm | 0-12 | |||
| Center height | mm | 900 | |||
| Gross power | KW | 7,2 | |||
| Dimensions (L*W*H) | mm | 1500*1440*1400 | |||
| Packing dimensions (L*W*H) | mm | 1800*1750*1900 | |||
| Kg | 2500 | ||||
