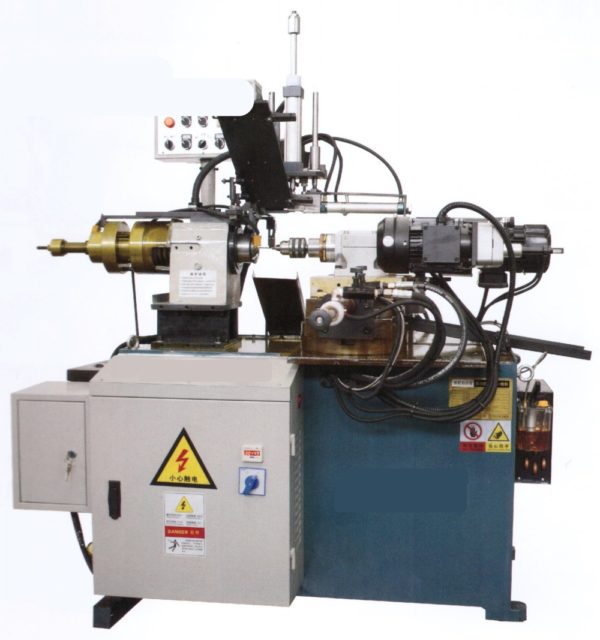

Non standard shaft parts automatic boring and thread tapping machine

Non standard shaft parts automatic boring and thread tapping machine

Description

Description

Specifications of Non standard parts automatic boring and thread tapping machine

Workpiece length:20-80mm(Can be equipped with vibrating plate)
Diameter of workpiece:4-20mm(Can lengthen)
The working range:Boring and tapping
Processing speed:5-20/Minute
Length tolerance:s ±0.05mm
Control systen:PLC+Hydraulic system
Motor power:1.5/2.2KW
Spindle speed:2200RPM
Power supply voltage:380V 50HZ(Three-phase four wire) or customized
Weight:530KG

Main use and application scope of Non standard parts automatic boring and thread tapping machine

Scope of application: It is suitable for mass production of Non standard shaft parts automatic boring and thred tapping

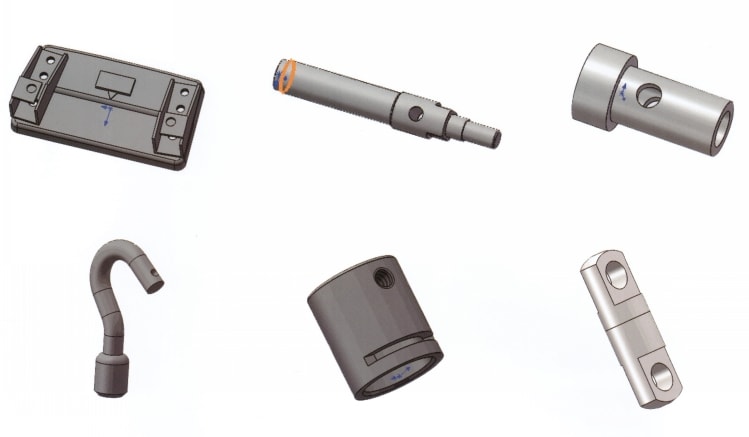

Material sample machined by Non standard parts automatic boring and thread tapping machine

Samples of Non standard shaft parts automatic boring and thread tapping

Samples of Non standard shaft parts automatic boring and thread tapping
