Description

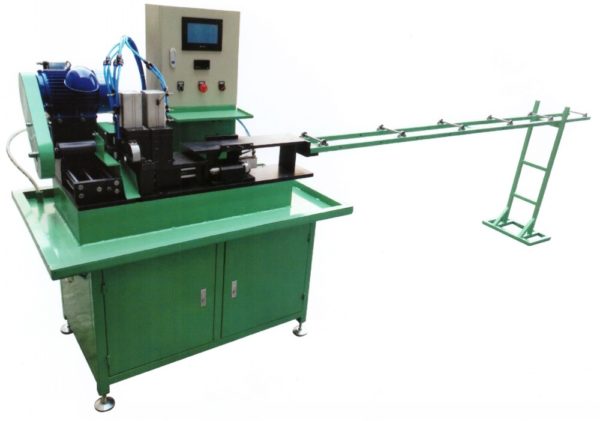

Rod bundle cut to lenth pillet cutting machine specifications:
Workpiece length: 5-195mm (can be customized and lengthened)
Workpiece diameter: 2-32mm (can be increased)
Workpiece shape: round, square, hexagonal, different shapes
Length tolerance: s±0.03mm
Parallelism: s±0.015mm
Control System: PLC
Motor power: 1.5/2.2KW
Power system: pneumatic, servo
Spindle speed: 200-3000 rpm (infinitely variable speed)
Power supply voltage: 380V 50HZ (three-phase four-wire)
Machine weight: about 500kg
Feed form: post feed
Main use and application scope of Rod bundle cut to lenth pillet cutting machine
Scope of application: It is suitable for mass production of fixed length cutting of various small shaft and tube shaped parts, cutting without burr and accurate verticality.

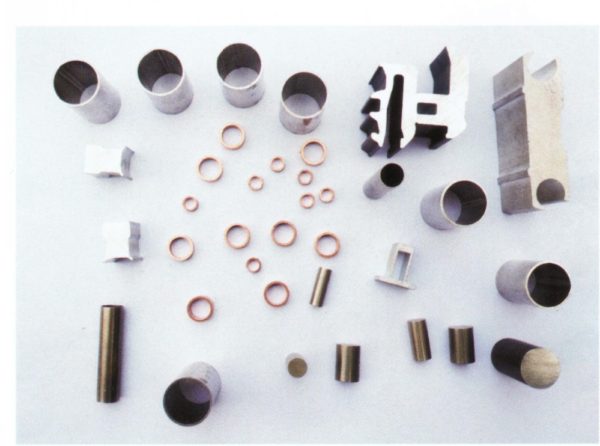

Material sample cutted by Rod bundle cut to lenth pillet cutting machine
