Semi-tubular rivets high speed making machine

Semi-tubular rivets high speed making machine

Categories: , Tag:
Description

Description

Running video of Semi-tubular rivets high speed making machine



Main Specifications of Semi-tubular rivets high speed making machine

Model Unit ATR-3 ATR-4 ATR-5 ATR-5L ATR-6 ATR-6L ATR-8 ATR-10
MAX.FORGING DIA. MM 4 5 7 7 9 9 11 13
MAX. LENGTH MM 20 40 60 80 90 120 120 120
SLIDER STROKE MM 37 68 92 102 120 150 150 150
MAIN DIE DIA MM 20 32 34.5 34.5 45 45 55 70
CUT DIE DIA MM 13 15 19 19 24 24 28 35
FIST PUNCH DIA MM 18 25 31 31 35 35 40 55
SECOND PUNCH DIA MM 18 25 31 31 35 35 40 55
MAX OUTPUT PCS/M 120 110 100 90 80 80 70 60
MAIN MOTER KW 1.5 1.5 2.2 2.2 4 4 7.5 11
APPROX.WT KGS 650 1100 2000 2300 3500 3800 4200 6000
DIMENSION CM 114*81*90 164*80*108 208*106*112 240*110*125 270*140*160 300*140*160 370*160*180 480*180*170



1.We reserves the right to modify the above parameters, and may not be notified if there is any modification;

2.The most suitable production speed of the product depends on the shape, size and material of the product;

3.The maximum material shear diameter and the suitable product diameter listed in the table are calculated as medium carbon alloy steel, equivalent to 10.9 high strength screws.

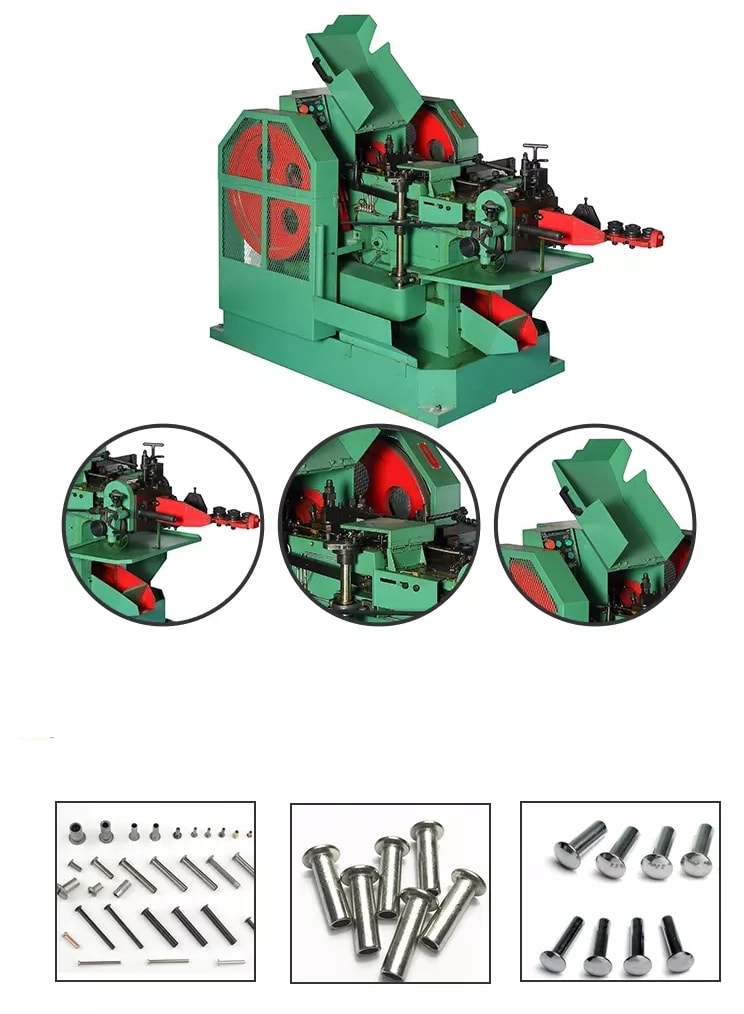

Semi-tubular rivets high speed making machine and semi hollow rivet sample

Semi-tubular rivets high speed making machine and semi hollow rivet sample

Application Scope of Semi-tubular rivets high speed making machine

Semi-tubular rivets high speed making machine is one kind of specialized machine with high efficiency and automation among forging machinery. Semi-tubular rivets high speed making machine are used for producing different kinds of semi hollow rivets and parts, etc.

Salient Features of Semi-tubular rivets high speed making machine

1. Using high quality QT500-7 casting material , assure the cold heading machinemore compact structure and more stable performance.
2. The slipway adopts the high quality alloy and Copper alloy with special treatment which has a good wear-resisting property and long life of parts.
3. Main motor is equipped with speed-adjust transducer, PLC control system, computer automatic man-machine interface system(Optional), these equipment make lots of convenience for customer to adjust the dimension of the non-standard products.
4. The cold heading machine parts are machined by advanced CNC processing technology which ensure the precision of the requirement.
5. Perfect inspection system: short material inspecting and eliminating, inspection of the low location of oil pressure and air pressure, transfer system floating inspection system, overload, and lightload stop system to protect the lathe and dies and prolong the service life of them.
6. It is reasonable and best design  for the layout of forced lubrication, oil pipe way and oil groove. Adequate and resonalbe lubrication system improves the equipment life and working performance.
7. High strengthened-material lathe bed, lengthened main and subsidiary slider structure and “pedrailtype” slider which is adopted domestically for the first time realize “zero space” assembling which assures the precision of the main slider movement and lengthens their service life of dies.
8. The main parts of all type machines have adopted strict casting procedure and annealing disposal to assure its steel hardness and precision.
9. The cold heading machine adopts famous brand-name products of the motor, bearing, pump etc. to improve the reliability of the machine.
10. Auto checker system is available and optional.
11. P.K.O synchronized knock out system makes the choice of molding technics flexible.
12.Touch screen and man-machine dialogue numerical control system are optional for meeting customer’s requirement, they are used for setting the length of thread pipe of rear knock out, the length of barrier and the feeding length, it is convenient for quick die change. This system has a memory capacity of 99 mnemonic modules for meeting the requirement of quick die change.

Main Standard and optional items for Semi-tubular rivets high speed making machine

Auto checker for heading machine PKO for heading machine
Screw conveyor for heading machine Coil stand for heading machine

 Standard accessories of Semi-tubular rivets high speed making machine

1. One set of trial tools
2. One set of standard hand tools.
3. One set of standard spare parts.
4. One set of control Panel
5. One set of AC motor
6. Inside Lamp
