Stainless steel Hexagon flange nut forming machine

Stainless steel Hexagon flange nut forming machine

Description

Description

Specifications of Stainless steel Hexagon flange nut forming machine

Model

Parameters

Unit 08B-6S-12 11B-6S-14 14B-6S-18 17B-6S-20 19B-6S-25 22B-6S-30 24B-6S-40 27B-6S-40 30B-6S-45 33B-6S-45 36B-6S-45 41B-6S-52
Max. Diameter MM 8 11 15 17 19 22 24 27 30 32 35 40
Max. Length MM 12 14 18 20 25 30 40 40 45 45 45 52
Kick Out Length MM 12 14 21 25 28 45 45 45 60 70 70 90
Forging Force TON 35 60 90 120 150 190 240 280 320 280 420 480
Max. Output PPM 350

/450

150/300 90

/180

80/160 80/120 70/120 65/100 65

/100

60/100 60 60 55
Ram Stroke MM 42 58 60 80 98 140 140 140 160 160 180 180
Dies Pitch MM 38 50 60 70 80 80 100 100 120 140 165 165
Main Motor HP 10 20 30 30 40 50 75 100 150 150 200 270
Lub. Motor HP 1 1 3 3 3 4.5 4.5 4.5 6 6 6 6
Appro.Weight TON 3.5 4.5 8.5 10.5 15.5 18 27 30 45 50 65 75
Appro. Size M 2*1.3*1.2 2.5*1.7*1.3 3*2.1*1.5 3.7*2.2*1.5 3.8*2.5*1.5 4.1*2.5*1.7 5.5*2.8*1.7 5.5*2.9*2.2 6*3.3*2.5 6.5*3.4*2.5 7*3.5*2.8 8*3.8*2.8

Hexagon flange nut size

 M3-M5  M6  M8  M10  M12  M14  M16  M18  M20  M22  M24  M30
Stainless steel Hexagon flange nut dimension and drawing

Stainless steel Hexagon flange nut dimension and drawing

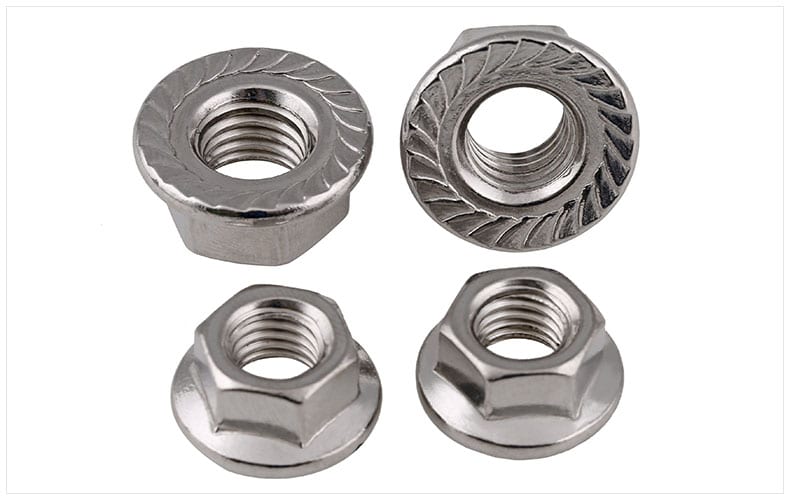

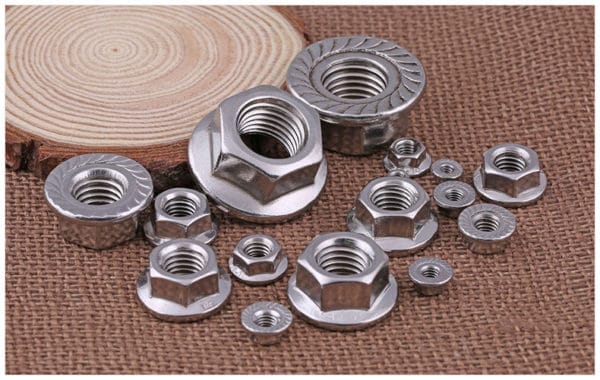

Finished Stainless steel Hexagon flange nut

Finished Stainless steel Hexagon flange nut

Application of Stainless steel Hexagon flange nut forming machine

Manufactured products :M3-M30 hexagon flange nuts.

Main Advantages of Stainless steel Hexagon flange nut forming machine:

1. Effectively improve production efficiency and reduce production process. Our equipment production capacity is remarkable, surpassesmost of manufacturers, greatly reduce production process, the standard productsare basically once formed, save time and effort.

2. Save cost.Due to the drastic reduction of production process,enterprises can save labor cost, manufacturing cost and time cost whileensuring production capacity. The combined cost is reduced by as much as 50%.

3. Productions of machine are highly developable. All kinds of standard, non-standard products, as long asmolds are formed, they will have a mass production

4. Durable equipment life. Ourcompany is taiwanese-owned enterprises, machinery parts and components areimported from Taiwan, then assembled in the mainland, and ourcompany has always been strictly the quality pass,just want to supply our customers the best products.

Main Features of Stainless steel Hexagon flange nut forming machine

NO.1.The machine body and main sliding block are processed through stress relieving after being forged to prevent from deformation and ensure durable mechanical stabolity.

NO.2.Machine body of high alloy steel imported is prossed through quenching treatment to ensure lasting resistance to wearing.

NO.3.Eash cam is precisely designed with computer and made in CNC process center to ensure correct and smooth cam common normal.

NO.4.Applying air compressor clutch,smooth and steady start current brake,realization of inching,single stroke and continuous running,besides inching way,main sliding block will stop at the utmost point ehen the machine stops every time to provide max. operation space.

NO.5.Circumferential flushing trimming.

NO.6.Synchronic reverse of plunger die ejecting with primary slipway to ensure the product shall be temporarily kept in the plunger die and prenvent from falling our by the plunger die.

NO.7.We can attach with frequency converter with stepless speed control.

NO.8.PLC digital control inspection device enabling automatic inspection of the working state and failure alarming display.

NO.9.Tongs of swing type and rotary type provide with pneunatic mechanism, clamping stably.

NO.10. Running in a high automatization and intellectualization,no pollution
