Stainless Steel Heavy Duty Shield Anchor 4PCS-3PCS-2PCS Fix Bolt

Description

Description

Stainless Steel Heavy Duty Shield Anchor 4PCS-3PCS-2PCS Fix Bolt

Product yellow zinc plated 4 pcs Heavy duty shield anchor
Keyword Heavy duty shield anchor
Structure sleeve+nut+taper
Material Q235, 45#, AISI304(A2-70), AISI316(A4-80) etc
Size M6-M24 or non-standard as request & design
Grade 4.8, 6.8, 8.8, 10.9, 12.9
Surface plain, galvanized,bule white, YZP etc.
Usage Metal structures, profiles, floor, bearing plates, brackets, railings, walls,machines, beams, etc
Type wedge anchor,sleeve anchor flange nut,3pcs shield anchor,4pcs shield anchor,drop in anchors,metal frame anchors,tie waire anchors.
Sample Free sample can be sent for test
Remark OEM/ODM is available according to customer’s drawing and samples.

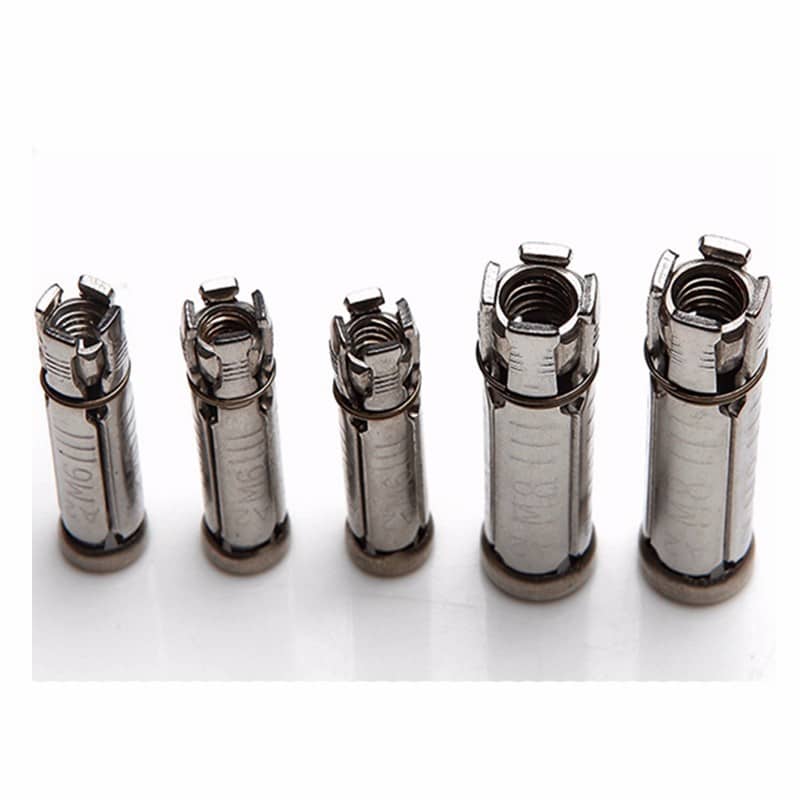

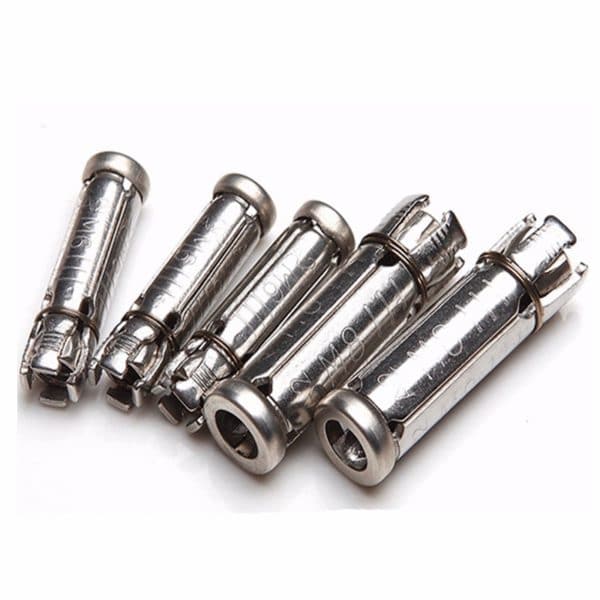

Stainless Steel Heavy Duty Shield Anchors 4PCS-3PCS-2PCS Fix Bolts

Stainless Steel Heavy Duty Shield Anchors 4PCS-3PCS-2PCS Fix Bolts

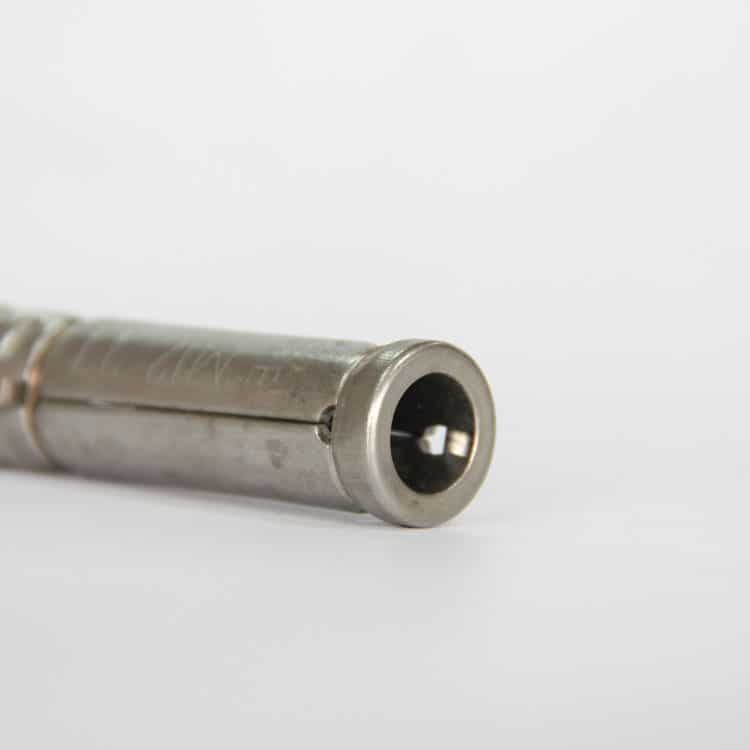

Stainless Steel Heavy Duty Shield Anchors 4PCS-3PCS-2PCS Fix Bolts detail

Stainless Steel Heavy Duty Shield Anchors 4PCS-3PCS-2PCS Fix Bolts detail

Stainless Steel Heavy Duty Shield Anchors 4PCS-3PCS-2PCS Fix Bolt detail

Stainless Steel Heavy Duty Shield Anchors 4PCS-3PCS-2PCS Fix Bolt detail

Metric sizes

Item No Outside Dia ∅
M6(1/4)×10×50 ∅10×50
M8(5/16)×12×55 ∅12×55
M10(3/8)×15×70 ∅15×70
M12(1/2)×18×80 ∅18×80
M16(5/8)×22×90 ∅22×90

Packing and shipment

anchor fasteners packing and shipment

Stainless Steel Heavy Duty Shield Anchor 4PCS-3PCS-2PCS Fix Bolt packing and shipment

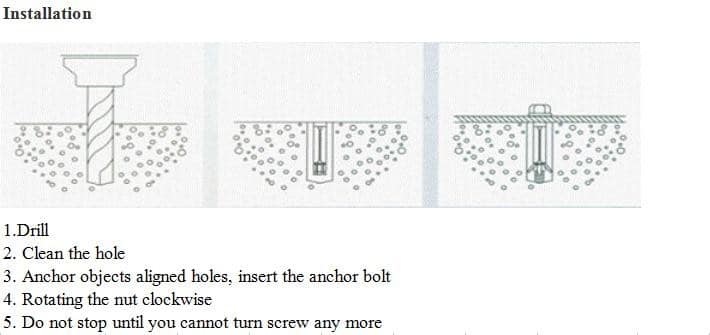

Install method:

Yellow zinc plated 4 pcs Heavy duty shield anchor install method

Stainless Steel Heavy Duty Shield Anchor 4PCS-3PCS-2PCS Fix Bolt install method
