Description

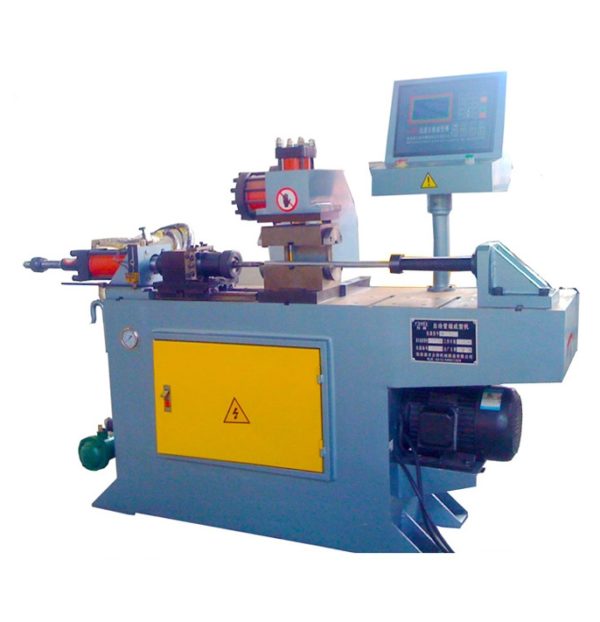

Automatic pipe taper reducing forming machine
Adapted material:steel pipe, stainless steel tube, copper pipe, aluminum pipe,etc.
Recommended application industry:
automobile fittings ( oil pipe for brake, muffler, seats), motorcycle, healthy equipment, air-conditioning,bicycle, steel furniture, sanitary wares and so on.
Main specification
1.Applicable material of the machine:carbon steel, stainless steel, aluminum , alloy, copper, brass etc.
2.Microcomputer controlling; Hydraulic driving.
3.Manual and semi-automatic operations are available.
4.English or Chinese subtitles; man-machine conversion operation, easy.
5.Adopting linear slider rail, stable propulsion.
6.High accuracy and efficiency.
Technical parameter
|
Model/Name
|
ASG40
|
ASG60
|
|
Max. reducing capacity mm
|
Φ40×2.0
|
Φ60×2.5
|
|
Max. reducing length mm
|
260
|
320
|
|
Molding time m
|
10-60
|
10-60
|
|
Motor power KW
|
5.5
|
7.5
|
|
Cooling oil pump W
|
40
|
90
|
|
Rotate speed of main shaft r/min
|
175
|
286
|
|
Overall dimension mm
|
1020×620×1200
|
1300×880×1300
|
|
Weight T
|
1.4
|
1.6
|
