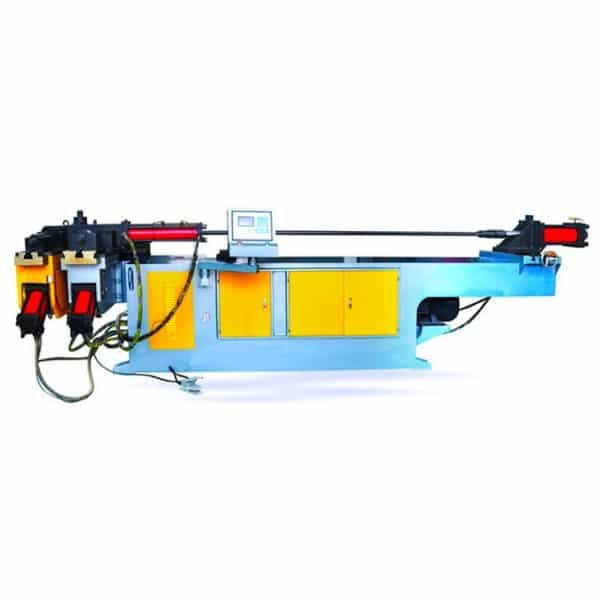

AW75CNC car exhaust pipe bending machine

AW75CNC car exhaust pipe bending machine



Application of pipe bending machine

Auto parts (brake tubing, bumper, muffler, seat).
Motorcycle manufacturing, bicycle industry, fitness equipment,
Air conditioning and refrigeration, steel furniture, sanitary equipment and other industries.

Adapted material:steel pipe, stainless steel tube, copper pipe, aluminum pipe,etc.

Main specification Model: AW75NC unit Remarks
Maximum applicable carbon steel pipe bending radius  1.5D   For example Φ 76 . 2   X   2 . 5 t Mm 1. The minimum bending radius depends on the diameter of the pipe

2. The maximum bending radius can be based on customer requirements

3. The maximum core length can be customized according to customer requirements.

Maximum applicable stainless steel pipe bending radius  1.5D   For example Φ 69.85   X   2 . 2 t Mm
Standard core length ( a ) 2700 Mm
Maximum bending radius 300 Mm
Minimum bending radius R40 Mm
Maximum bending angle 190 Degree
The number of bends can be set for each pipe 16 Unit
Number of parts that can be stored 16 × 16 Unit
Hydraulic system control The electromagnetic valve
Control System Microcomputer control
Maximum hydraulic pressure 14 Mpa
Hydraulic motor power 7.5 Kw
Fuel tank capacity 250 L
Machine dimensions 3760*1080*1230 Mm
Machine weight 2380 Kg


AW38CNC Automatic 3d Pipe Bending Machine structure 1

AW75CNC car exhaust pipe bending machine structure 1

AW38CNC Automatic 3d Pipe Bending Machine structure 2

AW75CNC car exhaust pipe bending machine structure 2

Features of pipe bending machine

  • Interactive PLC touch screen offers easy access to auto and manual operating modes.
  • System diagnostics and multiple language capability.
  • Standard clockwise bending direction.
  • Fully hydraulic clamping on clamp die and pressure die.
  • Drop-way hydraulic clamping.
  • Direct acting hydraulic pressure die with adjustable speed valve.
  • Maximum 100 sets of program storage,Maximum 32 bends for each program.
  • With Independent programmable speeds Y, B, and C axes.
  • Programmable material spring back settings for each bend angle.
  • Automatic release of tube prior to final bend.
  • Bending Axis-Driven by Cylinder,Feeding Axis-Driven by Servo Motor,Rotating Axis-Driven by Servo Motor.
  • Obtain quality repeatable bends in steel, stainless, aluminum, titanium and brass.
  • Foot Pedal Cycle start.
  • With Air Cooling System.
  • One set of Tooling for Draw Bending.
  • Wiper die Bracket.
  • 1 Mandrel Rod.
  • Operation and Maintenance Manual.
  • Tool Box with Adjusted Tools.
  • Electric: As required (3 phase 220V or 380V or 415V…)
AW38CNC Automatic 3d Pipe Bending Machine parts brands

AW75CNC car exhaust pipe bending machine parts brands

Optional items of pipe bending machine

  • Industrial Computer Controlling
  • Anticipate Mandrel Extraction
  • Automatic mandrel/machine lubrication
  • Anti-clockwise bending direction
  • Machine effective length over mandrel
  • Safety Mat
Accessories and Services

Accessories and Services

Free Spare parts and Accessories with wedge anchor machine
1.Wire stand 1pcs
2.PKO swing arm(small) 4pcs
3.Cam fasten nut 3pcs
4.Forging die spare springs 10pcs
5.Output roller 2pcs
6.PKO roller 1pcs
7.Operation manual in english
8.Easy wear parts drawings.

Our services:
Pre-Sales Service
* Technical proposal and solution.
* Trial sample as per customer’s drawing after customer pay the die cost.
* Online video authentication machine work.

After-Sales Service
* Offer installation instruction of how to install the machine.
* Offer operation instruction of how to use the machine.
* Teach and train customer’s engineers how to operate machine in our factory.
* Regularly engineers visit customer’s factory site.
