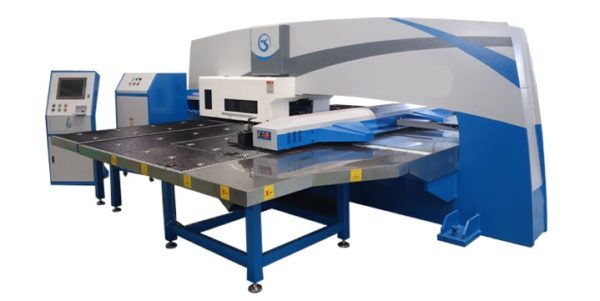

Closed mechanical CNC turret punch

Closed mechanical CNC turret punch



Specifications of Closed mechanical CNC turret punch

System Features

1. With the graphics function required for punching, nibbling function.

2. Simple international G code programming, easy to operate and use.

3. The internationally accepted RS232 standard interface facilitates communication with a computer.

4. Configure advanced all-digital AC servo motor and servo system.

5. Color display.

6. Pulse encoder semi-closed loop feedback.

7. Field programming, background programming.

8. Chinese display.

9. Has a graphical simulation function.

10 Convenient backup of system parameters, ladder diagrams and machining programs, and online processing of large-capacity machining programs.

11. Interpolation, position detection and servo control in nanometers enable high-speed and high-precision machining.

12. Use ultra-high speed serial data bus with few wiring cables.

13. High degree of integration, using dedicated software. The startup time is short, and the data is suddenly lost when the power is turned off suddenly.

System function

1. Linear axis: X Y axis, turret axis: T axis.

2. There are alarm displays for many mechanical and electrical faults such as overtravel.

3. With self-diagnosis function.

4. With soft limit function.

5. International general G code programming.

6. With mold compensation function.

7. With pitch compensation.

8. With backlash compensation.

9. Has a coordinate offset function.

10. With relocation function.

11. With automatic, manual and semi-automatic operation modes.

12. With clamp protection.

13. With parameter programming function.

14. With fast positioning and stamping lock function.

Serial number name parameter unit Remarks
1 Punching force 300(30)/ 500(50) KN(T)
2 Rack structure “O” type closed rack electric furnace tempering treated
3 Maximum processing sheet size X axis 2500 Mm Secondary positioning can process 5000mm
Y axis 1250 Mm
4 Processing maximum sheet thickness 4 Mm
5 Maximum diameter of one punch Φ88.9 Mm Non-standard can be customized.
6 Highest punching frequency 280 Times/minute
7 Repositioning cylinder 2 set
8 Control axis number 3/4 (X, Y, T, Z) One Rotating station Optional
9 Mold form Long guide 85 series international standard mold
10 Mold processing life 500000 Times
11 Turret station distribution A, B, C, D Standard Non-standard can be customized.
12 Workbench structure Seamless Brush / universal steel ball table Stainless steel edging
13 Maximum feed speed X axis 80 m/min
Y axis 80 m/min
14 Max. Turret speed 40 Rpm
15 Punching precision ±0.1 Mm
16 Maximum load weight 150 Kg
17 Total power 15.5 KW
18 Air pressure 0.55 MPa
19 power supply 380±5% V or customized
20 Dimensions Length × width × height 5000 × 5000 × 2100 Mm
21 Total Weight 11.5 T

Features of Closed mechanical CNC turret punch

(1) Roulette wheels:

The special fixtures are processed in pairs to ensure the coaxiality of the upper and lower mold positions and prolong the positioning accuracy of the mold. The thin turret inlaid wheel structure is used to reduce the gravity of the mold wheel while maintaining the long guiding structure. To ensure the guiding stability of the mold.

The company is equipped with a large-scale imported (Swedish Hexagon) three-coordinate measuring instrument. The wheel is assembled after passing the test (the indexing hole indexing value cannot be detected by other measuring tools).

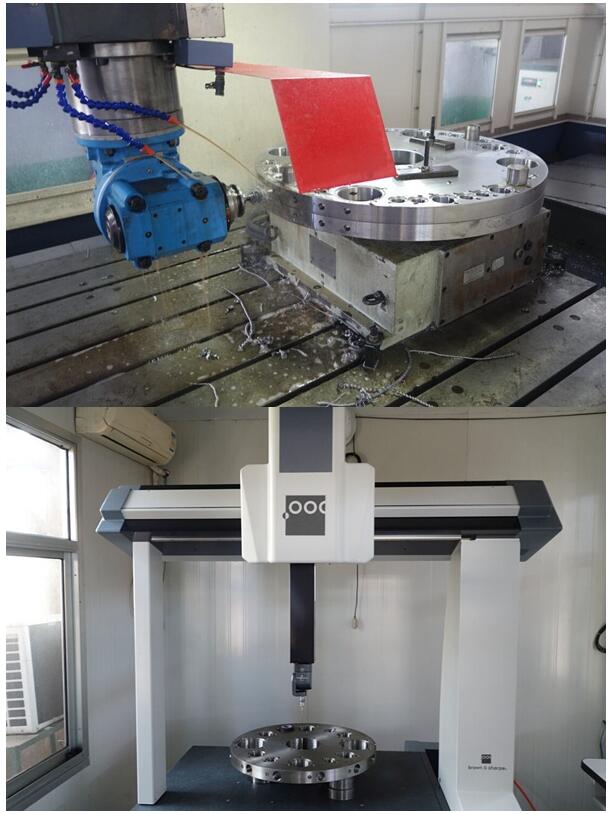

Roulette manufacturing and feature

Roulette manufacturing and feature

(2) Rotating station (rotary station):

adopting worm and worm transmission mode, the transmission precision is high; the rotating station is composed of turbine, worm, transmission shaft, synchronous gear, gear box and other components, and is installed in the synchronous gear box. The servo motor is connected in a straight line, the synchronization is reliable, the transmission precision is high, the concentricity and the same position of the upper and lower cutters of the self-rotating mold are ensured; the rolling rotary device of the upper and lower mold sleeves of the self-rotating mold reduces the friction coefficient, and the limit is large. Reduces wear and extends the life of the self-rotating mold. The existing traditional rotating mold sleeve is driven by synchronous belt, the transmission link is too much, the transmission mode is complicated, the transmission distance is long, the processing and installation process is cumbersome, so that after the self-rotating mold manufacturing and installation is completed, the accumulated error is too large, and it is difficult to accurately control. The same position of the upper and lower self-rotating mold tools, so that the mold is seriously damaged during the punching process, the use cost is too high, and the thin plate cannot be punched.

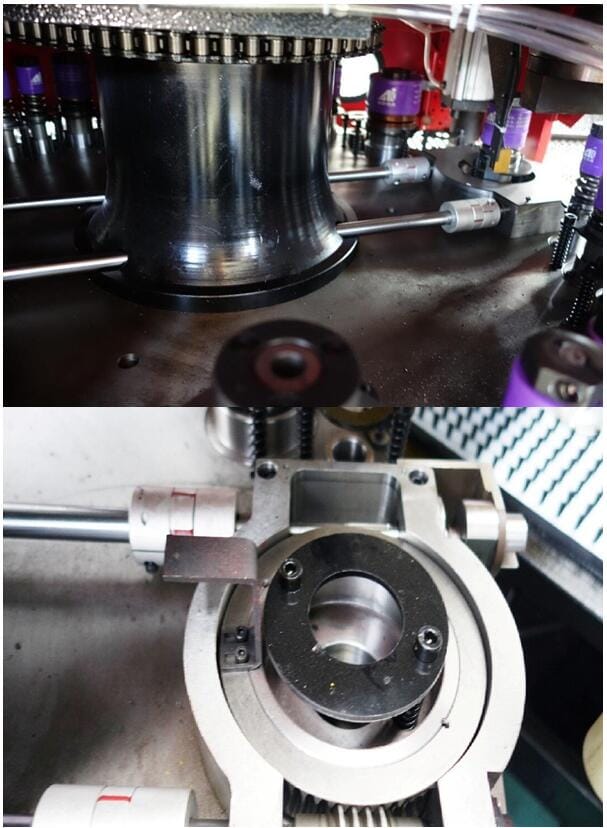

Rotating station manufacturing and feature

Rotating station manufacturing and feature

(3) The internationally equipped pneumatic components ensure the reliability of the performance of the whole machine.

(4) Adopting imported large lead ball screw and linear guide rail, the transmission and guiding performance are stable, and the precision of the machined parts is guaranteed.

(5) The use of universal ball and brush plate hybrid work surface not only reduces the noise and vibration of the machine tool, but also has a good protection effect on the surface of the processed plate, which can effectively prevent the surface of the plate from being scratched; The unique work surface dust-proof design structure can prevent the collision of the board caused by the excessive clearance, and at the same time play the dustproof effect on the guide rail and the screw rod; effectively prevent the dust and iron filings from falling onto the guide rail and the screw rod. The surface causes the ball to wear, effectively extending the service life of the guide rail and the rod; the perimeter of the table top and some of the countertops are protected by stainless steel, which is beautiful, durable and durable. The data line protection towline is changed from the traditional way to the side of the fuselage to reduce the gap between the worktable and prevent the scraper and the striker. The assembly of the guide rail and the screw rod are all corrected by the laser collimator to ensure the straightness and parallelism of each guide rail and screw.

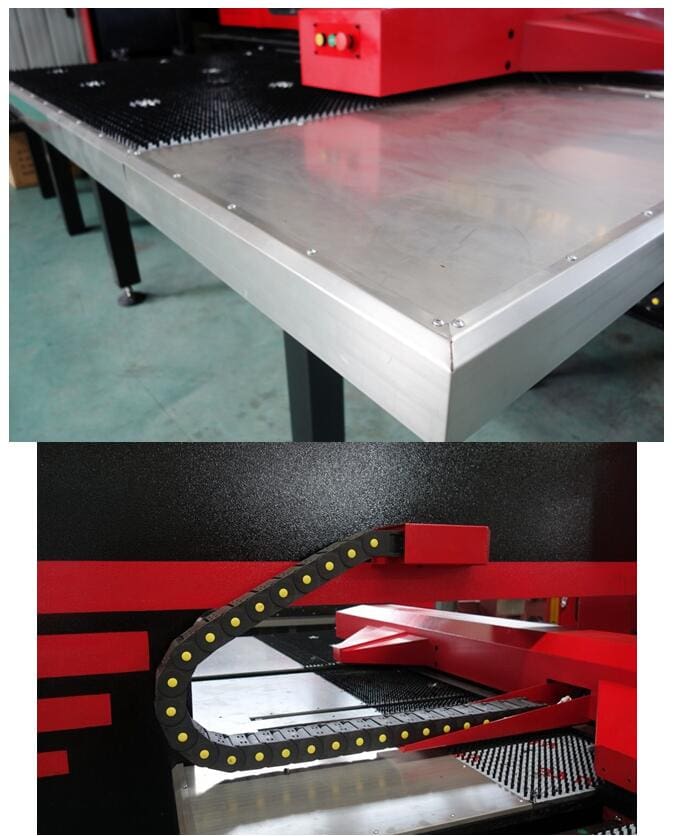

Seamless Brush -universal steel ball table and data cable protect chain

Seamless Brush -universal steel ball table and data cable protect chain

(6) Using “O” type (closed) steel plate to weld the fuselage, after high temperature tempering treatment, completely eliminate the internal stress removal caused by welding and avoid deformation of the fuselage; the feeding bracket adopts a clamping process to avoid the cause The feeding speed is too unstable due to excessive parallelism and flatness tolerance caused by repeated positioning of the secondary clamping, and the guide rail slider and the screw nut ball are damaged; the adjusting bolt is arranged outside the feeding bracket, so that the feeding tray has a fine adjustment function. It solves the drawback that the natural deformation caused by the use of the age is not adjustable.

(7) Welding parts and castings are tempered to eliminate internal stress; all machined parts are processed in the company (all precision parts are completed by the machining center), assembled after passing the test, and effectively controlled. The machining accuracy of each component eliminates the accumulated tolerances generated during assembly of the assembly.

Laser calibration

Laser calibration

Adjust screws

Adjust screws

(8) Using floating pneumatic clamps, the clamping force is large and the feeding is stable; the integral dovetail type carriage has good rigidity and convenient movement of the clamp.

(9) The system has automatic clamp protection function, which can not be punched in the protection area, only for displacement movement, to ensure the continuity of the program operation.

(10) With the imported brand clutch, the life of the friction plate is more than three times that of the domestic one, so that the working state is more stable.

(11) The side of the fuselage is equipped with mold storage tooling to avoid mold damage caused by irregular placement of the mold, effectively protecting the mold, ensuring the stamping effect of the mold and prolonging the service life of the mold.

floating pneumatic clamps

floating pneumatic clamps

imported brand clutch

imported brand clutch

mold storage tooling

mold storage tooling

(12), automatic mold selection processing: the system can automatically select the appropriate mold to process. It can display the simulation of the processing track and path. If multiple parts are cut on the large plate, the plate can be saved to a large extent and the utilization of the material can be improved.

(13), roulette transfer station display, stamping time display, processing quantity display, mold life (punch times) display.
