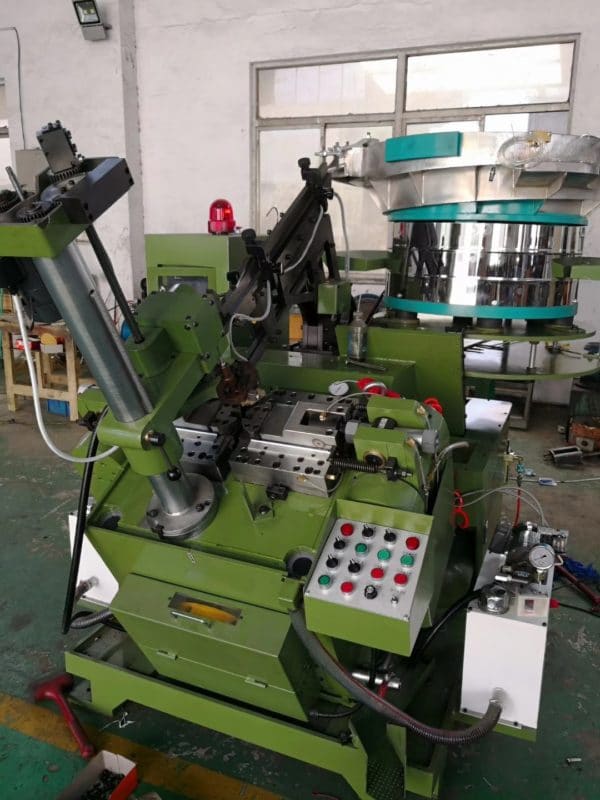

EPDM bond washer wood metal roofing screws assembling machine

EPDM bond washer wood metal roofing screws assembling machine

Description

Description

Running video of EPDM bond washer wood metal roofing screws assembling machine

Application of EPDM bond washer wood metal roofing screws assembling machine

The self tapping screw point forming machine designed for forming the end of stainless steel and  mild steel self drilling screws,suitable for extra long self-drilling screw upto 400mm.

1. The Self-Drilling Screws are popular fasteners which widely used in industries like building,car manufacture,etc.
2. The Self-Drilling Screws have features of drilling & fixing easily.
3. The material of Self-Drilling Screw is carbon steel wire AISI 1018-1022 or stainless steel material. Usually the product have five procession: (1) Cold heading by cold heading machine (2) Drilling point forming by Self-Drilling Screw Making Machine (3) Thread rolling by Thread rolling machine (4) Heat treatment by mesh belt furnace (5) Electroplating by zinc plating equipment.
4. The Self-Drilling Screw Making Machine is used to form the drilling point of the screw.

Features of EPDM bond washer wood metal roofing screws assembling machine

1. Working bench is designed by die set for easy and simple operation and maintenance.
2. Monitor and control by Program Logical Control(PLC) system, trouble and alarm displayed on the board by Light Emitted Display (LED) system, so the trouble can be easily noted and sorted.
3.Key parts like rotary and sliding parts have been processed under heat-treatment for good wear-resisting.
4.High speed and automatic, noiseless and energy-saving.
5.High precision, original accurate position return and absolute synchronizing.

Main Technical Parameters of EPDM bond washer wood metal roofing screws assembling machine

Model APM-200
Appro. Dimension 190*150*190CM
Power INVERTER 11KW,MOTOR 7.5KW
Screw diameter and length range DIA:2.8-8MM(6#-18#),LENGTH 10-200MM
Speed SINGLE CLICK 100-500 PCS PER MIN,DOUBLE CLICK 40-150 PCS PER MIN
Control method PLC AUTOMATIC CONTROL
Detection system TOUCH SCREEN MAN-MACHINE FAULT DETECT AND DISPLAY
Transmission type MAC SOLENOID VALVE PLUS COMPRESSOR CLUTCH(DRIVE PLUS BRAKE)
Screws separate type INDEX HIGH SPEED PRECISION SEGMENTATION
Appro. Weight 2.8TON
Accessories and Services

Accessories and Services

Free Spare parts and Accessories with wedge anchor machine
1.Wire stand 1pcs
2.PKO swing arm(small) 4pcs
3.Cam fasten nut 3pcs
4.Forging die spare springs 10pcs
5.Output roller 2pcs
6.PKO roller 1pcs
7.Operation manual in english
8.Easy wear parts drawings.

Our services:
Pre-Sales Service
* Technical proposal and solution.
* Trial sample as per customer’s drawing after customer pay the die cost.
* Online video authentication machine work.

After-Sales Service
* Offer installation instruction of how to install the machine.
* Offer operation instruction of how to use the machine.
* Teach and train customer’s engineers how to operate machine in our factory.
* Regularly engineers visit customer’s factory site.
