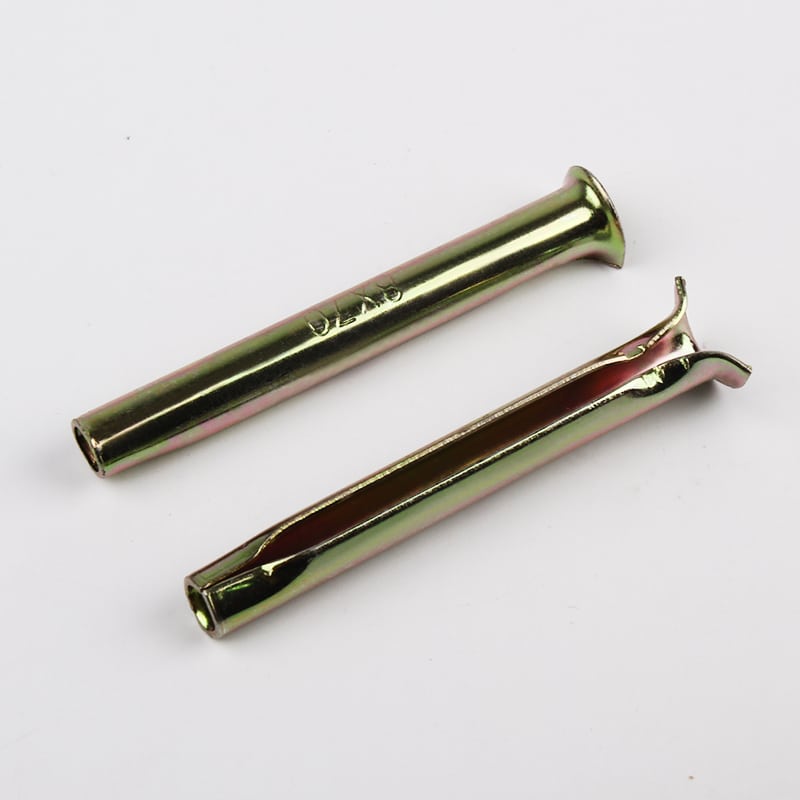

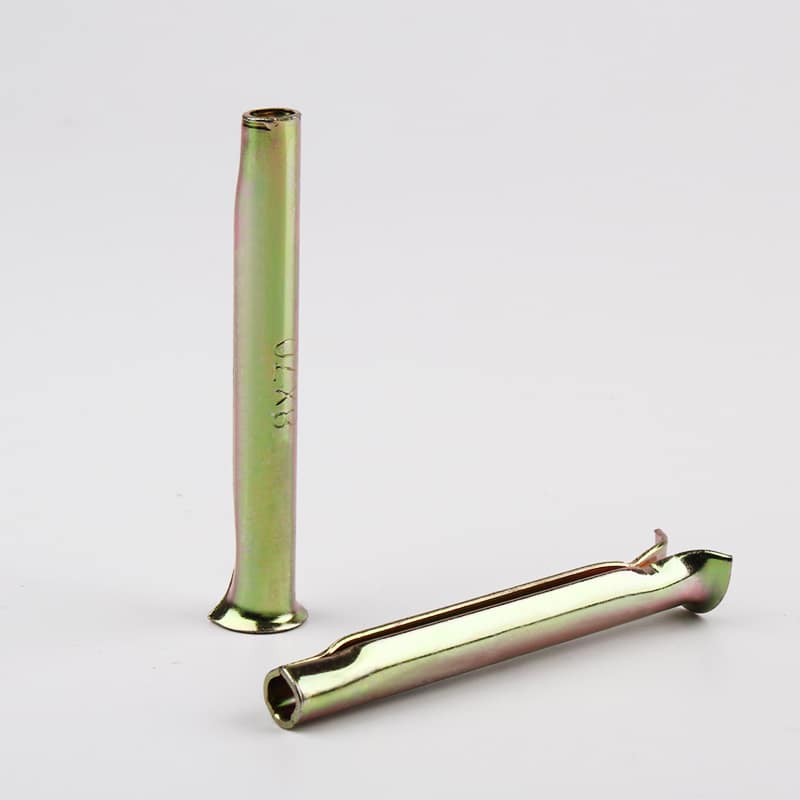

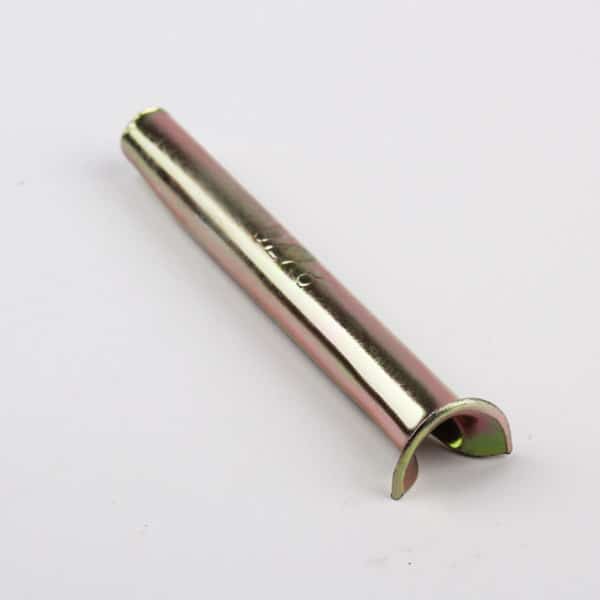

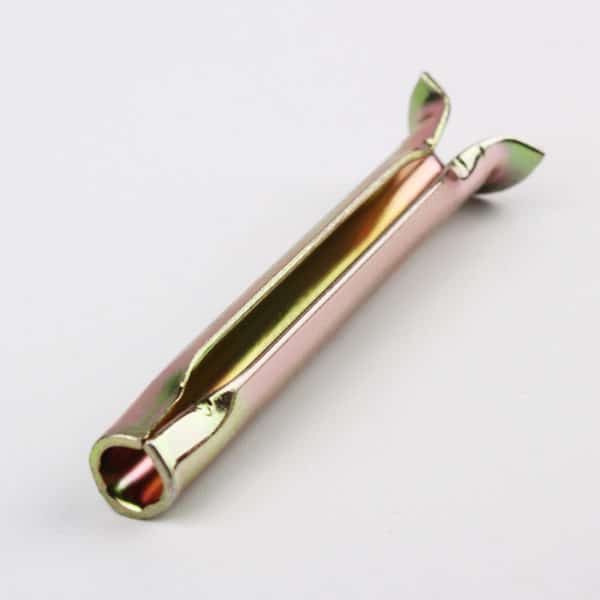

Express Nail Anchor With Zinc Plated

Description

The Express Nail Anchor is ideal for economical, quick, repetitive fixing applications. Ideal for use on frames, battens, fencing etc. Simply drill hole and hammer fixing hole.

Material: Spring Steel C1050

Finish: Zinc Plated, Cr3+, Min 5 um

Approval and Testing Report

CE Approval
The Thickness of Zinc Testing
Material Inspection certification
Flexibility Testing and Pressing Testing
HRC

Technical Data

Size	D [mm]	D2 [mm]	L [mm]	B [mm]	Packaging [Pieces]	Weight [Kg/mpc]
6 × 30	6.7	6	30	0.8	200	3
6 × 40	6.7	6	40	0.8	200	4
6 × 50	6.7	6	50	0.8	200	5
6 × 60	6.7	6	60	0.8	200	6
6 × 80	6.7	6	80	0.8	200	8
6 × 100	6.7	6	100	0.8	200	10
8 × 70	8.7	8	70	1	100	12
8 × 90	8.7	8	90	1	100	15
8 × 110	8.7	8	110	1	100	18
8 × 130	8.7	8	130	1	100	21
8 × 150	8.7	8	150	1	100	24
8 × 180	8.7	8	180	1	100	27
