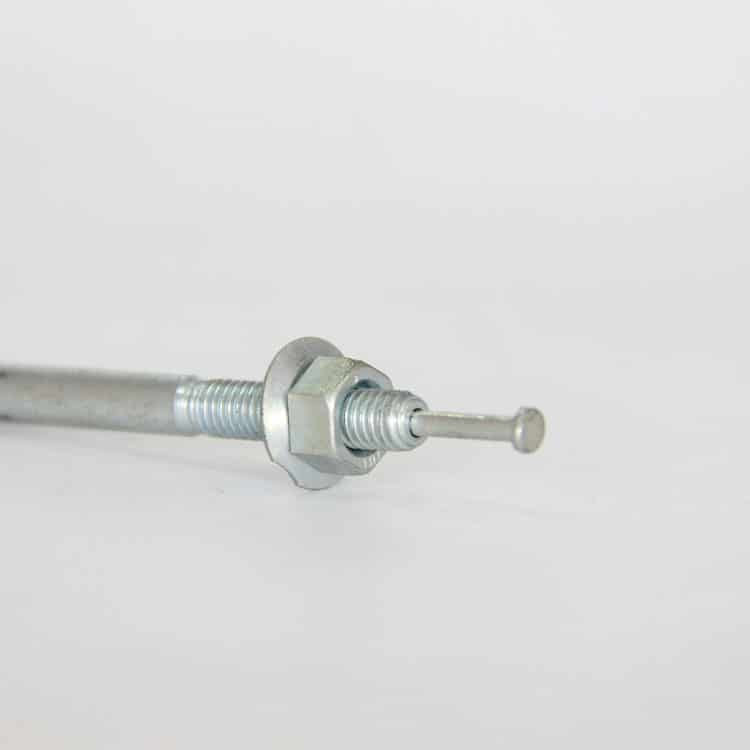

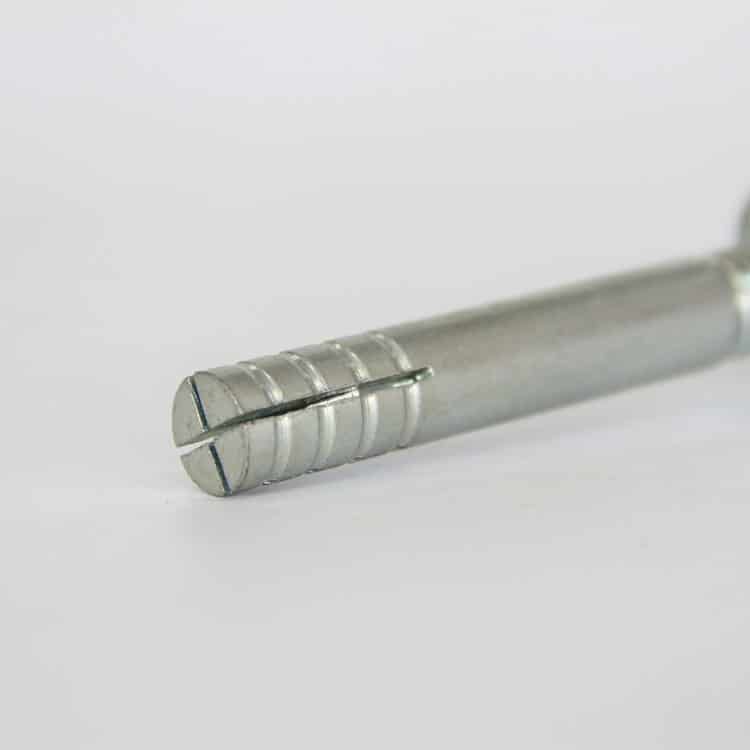

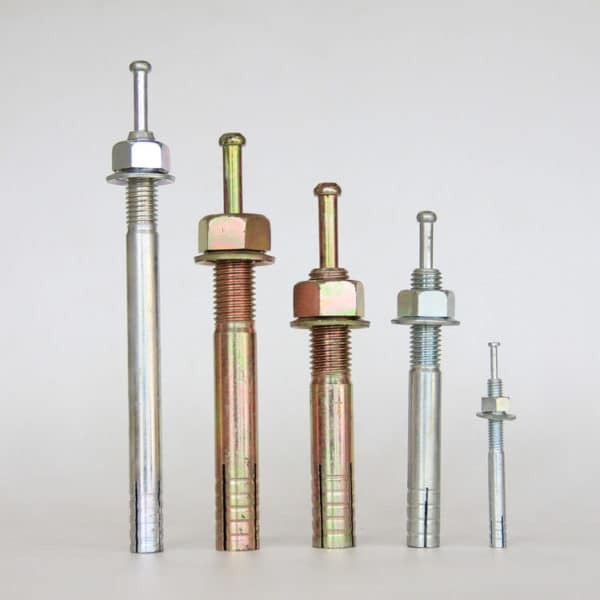

Stainless steel hammer drive anchor-hit anchor

Features:
The inner nail Central and carbon steel heat treatment is made with a flange only refund the mother, this product is suitable for installation, construction, heating and cooling, billboard installation, fixed stadium seats, such as machinery and equipment fixed appliances fixed. This product is the easiest type of installation, rapid expansion of the gecko, for no accurate drilling depth, specifically according to the nut and the body tube up and down adjustment.

Available Material:	1.StainlessSteel:SS201,SS303,SS304,SS316, SS410, SS420, 4.8 steel hex bolt
	2.Steel:C45(K1045), C46(K1046),C20
	3.Carbon Steel:CH1T,ML08AL,1010,1035,1045
	4.AlloySteel:10B21,35ACR,40ACR,40Cr,35CrMn,SCM435
	5.Aluminum or Aluminum Alloy:Al6061,Al6063 etc
Grade:	4.8 6.8 8.8 10.9 12.9 A2 A4
Surface Treatment:	Zinc-plating, Geomet, Dacromet, Black Oxide, Phosphatizing, Powder Coating and Electrophoresis.
Standard:	ISO, DIN, ANSI, JIS, BS and Non-standard.
Certificate:	GB/T19001-2008/ISO9001:2008
	It can match ROHS,SGS and environment protection
Products Range:	Dia: 3-30mm Max Length: 220mm
Manufacture Process:	RawMaterial/QC/Heading/Thread/HeatTreatment/Surface Treatment/QC Inspection/Sorting and Packing/Shipping
Sample Service:	Samples for standard stainless steel fasteners are all in free.
Lead Time:	25-45 days after order confirmed
Carton Size:	28*26*18cm or customised
Warranty:	We confirm we provide the products will satisfied your request 100%
After-sales Service:	We will follow up every customer and solve all your problems satisfied after sales

Base application:Door&Window,Support Frame,Machine fixing,Pipe Line fixing,Fire Control Spray System Grid fixing,Extemal Wall

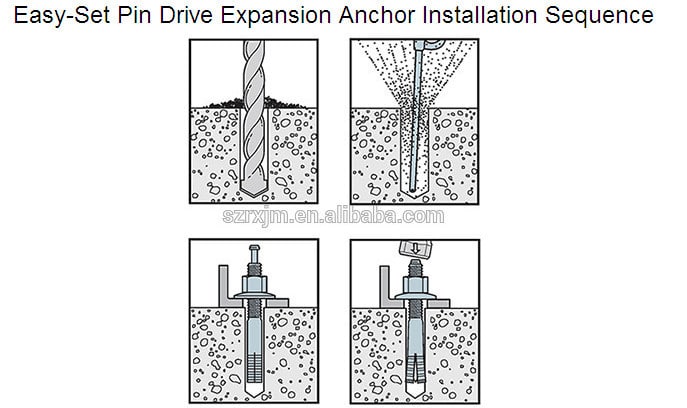

The strike anchor is a fast & easy to use expansion anchor,no precise hole depth is required and installation condition can be adjusted from pin and nut..

The nail made by high tensile material.

Specifications Model   A. METRIC   CODE SIZE OUTSIZE DIA. ANCHOR LEN. THREAD LEN. TENSION(KN.)** STA06045 M6X45 6 45 15 4.6 STA06060 M6X60 6 60 20 STA08050 M8X50 8 50 20 6.9 STA08070 M8X70 8 70 25 STA10050 M10X50 10 50 20 8.5 STA10060 M10X60 10 60 25 STA10080 M10X80 10 80 25 STA10090 M10X90 10 90 30 11.5 STA10100 M10X100 10 100 30 STA10120 M10X120 10 120 30 STA12060 M12X60 12 60 20 14.3 STA12070 M12X70 12 70 25 17.8 STA12090 M12X90 12 90 30 STA12100 M12X100 12 100 40 STA12120 M12X120 12 120 50 STA16100 M16X100 16 100 40 31.5 STA16120 M16X120 16 120 40 STA16150 M16X150 16 150 50 STA20130 M20X130 20 130 50 43.6 STA20150 M20X150 20 150 50 STA20190 M20X190 20 190 50     B. I NCH   CODE  SIZE ThREAD LEN. MIN EMBED. DRILL BIT SIZE TENSION(LBS.)** STA14134 1/4″ x 1-3/4″ 1/2″ – 5/8″ 1″ 1/4″ 900 STA14238 1/4″ x 2-3/8″ 3/4″ 1″ 1/4″ 900 STA5162 5/16″ x 2″ 1″ 3/4″ 5/16″ 1400 STA516234 5/16″ x 2-3/4″ 1″ – 1-1/8” 1-1/4″ 5/16″ 1400 STA5164 5/16″ x 4″ 1-1/8″– 1-7/8″ 1-1/4″ 5/16″ 1400 STA38238 3/8″ x 2-3/8″ 7/8” – 1″ 1-1/2″ 3/8″ 2200 STA38312 3/8″ x 3-1/2″ 1” – 1-1/8″ 1-1/2″ 3/8″ 2200 STA38434 3/8″ x 4-3/4″ 1-1/8″ 1-1/2″ 3/8″ 2200 STA385 3/8″ x 5″ 1-1/8” – 2″ 1-1/2″ 3/8″ 2200 STA12234 1/2″ x 2-3/4″ 1″ 1″ 1/2″ 3600 STA312 1/2″ x 3-1/2″ 1” – 1-1/8″ 2″ 1/2″ 3600 STA12434 1/2″ x 4-3/4″ 1-1/4” – 2″ 2″ 1/2″ 3600 STA126 1/2″ x 6″ 1-7/8” – 2″ 2″ 1/2″ 3600 STA584 5/8″ x 4″ 1-1/4” – 1-5/8″ 2-1/2″ 5/8″ 5400 STA58434 5/8” x 4-3/4” 1-1/4” – 1-5/8”  2-1/2″ 5/8″ 5400 STA586 5/8″ x 6″ 1-1/4” – 2″ 2-1/2″ 5/8″ 5400 STA345 3/4″ x 5″ 1-3/4” – 2″ 3″ 3/4″ 7500 STA346 3/4″x 6″ 1-3/4” – 2″ 3″ 3/4″ 7500 STA34712 3/4″x 7-1/2″ 2″ 3″ 3/4″ 7500
