Hit Anchor Bolt , Steel Nail Strike Anchor,Hammer Drive Anchor

Description

Description

Hit Anchor Bolt , Steel Nail Strike Anchor,Hammer Drive Anchor

Features:
The inner nail Central and carbon steel heat treatment is made with a flange only refund the mother, this product is suitable for installation, construction, heating and cooling, billboard installation, fixed stadium seats, such as machinery and equipment fixed appliances fixed. This product is the easiest type of installation, rapid expansion of the gecko, for no accurate drilling depth, specifically according to the nut and the body tube up and down adjustment.
Name Strike Anchor / Hammer Drive Anchor / Metal Hit Anchor
Place ofOrigin Cixi, Zhejiang,
ChinaSize M6 M8 M10 M12 M16 M20 or non-standard as request&design
Length 45mm-190mm or non-standard as request&design
Grade 4.6 – 43.6KNS.
Standards DIN, ANSI,ASTM, JIS, GB,etc
Material Steel, Carbon Steel ,Stainless Steel,etc
Surface Zinc Plated/Hot Dipped/Mechanical Galvanising; Yellow/ Blue and White etc
Thread Metric,UNC,UNF,BSW,RD
Payment L/C or T/T (30% in advance and 70% against the copy of BL)
Non-standards OEM is available if you provide a drawing or sample
Samples Samples are free
Usage Door&Window, Support Frame, Machine, Pipe Line, Extemal Wall,

Fire Control Spray System Grid, etc

Base application:Door&Window,Support Frame,Machine fixing,Pipe Line fixing,Fire Control Spray System Grid fixing,Extemal Wall



The strike anchor is a fast & easy to use expansion anchor,no precise hole depth is required and installation condition can be adjusted from pin and nut..

The nail made by high tensile material.

Metric Size:

Dia. (mm) Length(mm)
M6 45, 60
M8 70, 80
M10 50-120
M12 60-120
M16 100-150
M20 100-200

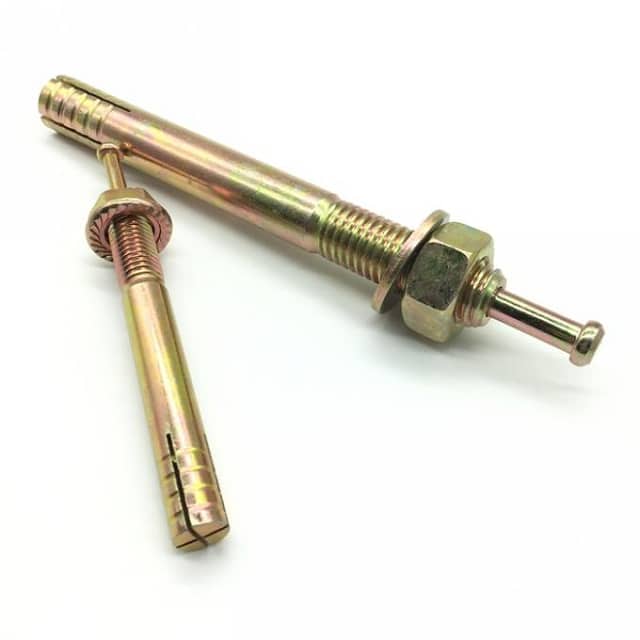

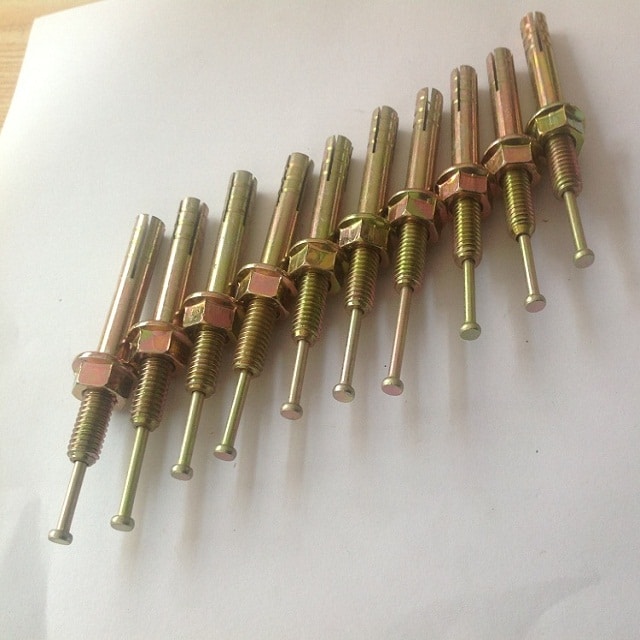

Hit Anchor Bolt Steel Nail Strike Anchor Hammer Drive Anchors

Hit Anchor Bolt Steel Nail Strike Anchor Hammer Drive Anchors

Hit Anchor Bolt Steel Nail Strike Anchors Hammer Drive Anchors

Hit Anchor Bolt Steel Nail Strike Anchors Hammer Drive Anchors

Packing and shipment

anchor fasteners packing and shipment

Hit Anchor Bolt Steel Nail Strike Anchors Hammer Drive Anchors packing and shipment

Install method:

Hit Anchor Bolt Steel Nail Strike Anchor Hammer Drive Anchor install method

Hit Anchor Bolt Steel Nail Strike Anchor Hammer Drive Anchor install method
