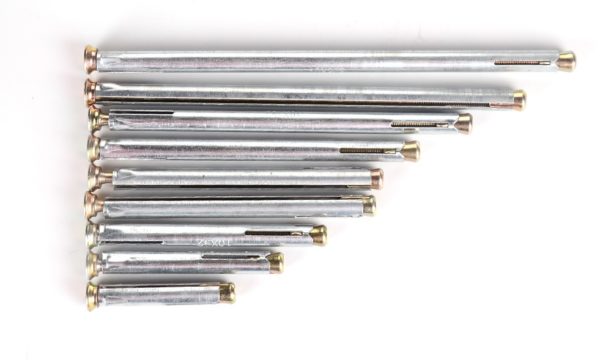

Metal Window Frame Anchor hollow wall anchor

Description

Metal Frame Anchor dimensions
Size		Pcs/Box	Weight KGS/Mpcs
Standard	8*72	1000	19.3
	8*92	1000	23.4
	8*112	1000	28.2
	8*132	1000	32.7
	8*152	1000	37.3
	8*172	1000	41.9
	10*52	800/600	22.9
	10*72	600	28.6
	10*92	600	34.5
	10*112	400	41.2
	10*132	400	46.9
	10*152	400	52.3
	10*182	400	62.5
	10*202	400	68.51
Non Standard	10*72	570	18.4
	10*92	570	23.7
	10*112	380	27.7
	10*132	380	38.5
	10*152	380	43.3
	10*182	380	51.4
	10*202	380	61.1

Metal Window Frame Anchor hollow wall anchors

Metal Windows Frame Anchor hollow wall anchors

Name	Cross Recessed Screw and Metal Frame Anchor
Place of Origin	China
Size	M6-M10 or non-standard as request&design
Length	50-140mm or non-standard as request & design
Grade	4.8,6.8,8.8,10.9,12.9
Standards	GB,DIN,ISO,ANSI/ASTM,B7,BS,JIS etc.
Material	Q215.Q235,C25,C45 Alloy Steel: 15Cr,20Cr,40Cr,15MnVB,30CrMrSi etc.
Surface Treatment	Galvanized
Delivery	Within 15-35days after confirm the order.
Package	Carton/pallet or according to requirement.
Payment	30% T/T in advance,70% paid against the copy of B/L.
Non-standards	OEM is available if you provide a drawing or sample.
Samples	Samples are free.
