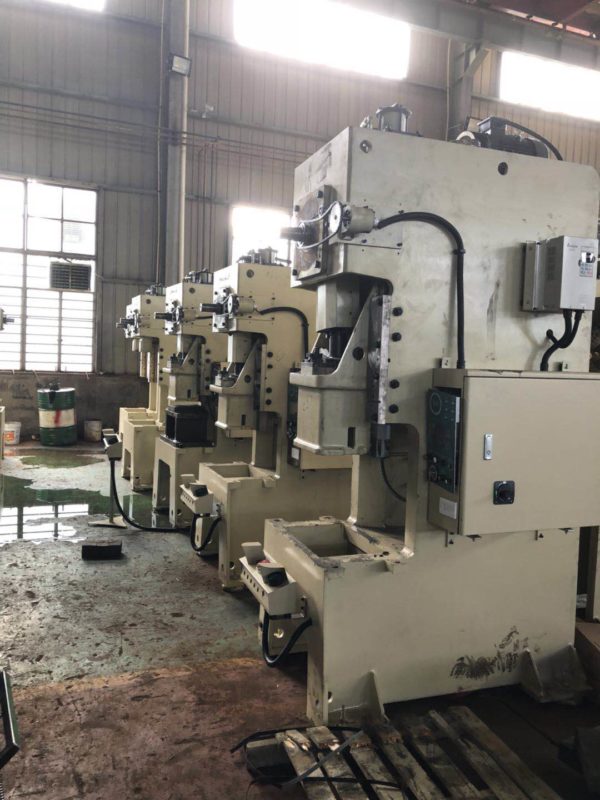

GF Series 5-65Tons guide plate type hydraulic pressing machine
Features
· Highly rigid body, small deformation of the fuselage, and greatly improved tool life.
·Low noise, low vibration, and low cutting noise.
·The number of strokes is adjustable.
·Hydraulic overload protection device, overload automatic emergency stop, protect punch and mold safety.
· Strong left and right eccentric load.
·The fixed-lock six-sided long guide has high precision.
·Human machine interface, easy to operate.
Specifications of GF Series 5-65Tons guide plate type hydraulic pressing machine
Item/Specification
Unit
GF5
GF15
GF25
GF45
GF65
Main pressing capacity
Ton
5
15
25
45
65
Max.stroke
mm
150
180
180
220
270
Daylight opening
mm
230
260
280
370
470
Bolster area L.R×F.B
mm
400×300
520×300
680×320
850×450
900×500
Slide area L.R×F.B mm
mm
230×120
300×230
300×230
400×300
500×360
Die hole size
mm
φ38
φ38
φ38
φ38
φ50
Depth
mm
150
150
160
225
250
System max pressure
Mpa
12
14
16
16
18
System max pressure
mm/sec
300
300
300
300
320
Fast speed up
mm/sec
330
330
330
330
360
Increasing pressure speed
mm/sec
35
35
35
35
35
Main motor power
kw
3
4
5.5
7.5
11
Copper anti wear slider of GF Series 5-65Tons guide plate type hydraulic pressing machine
Top quality copper anti wear sleeve of GF Series 5-65Tons guide plate type hydraulic pressing machine
OMPI clutch used on GF Series 5-65Tons guide plate type hydraulic pressing machine
Cnc automatic strip feeder with touch screen of chinese and english language.
