Description

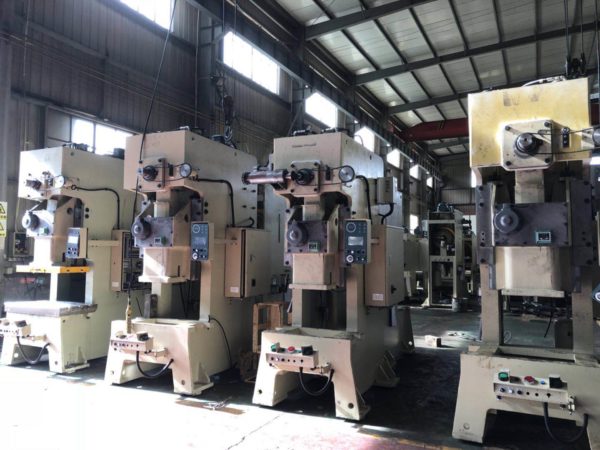

GM Series 200-600Tons guide plate type hydraulic press punching machine
Features
· Highly rigid body, small deformation of the fuselage, and greatly improved tool life.
·Low noise, low vibration, and low cutting noise.
·The number of strokes is adjustable.
·Hydraulic overload protection device, overload automatic emergency stop, protect punch and mold safety.
· Strong left and right eccentric load.
·The fixed-lock six-sided long guide has high precision.
·Human machine interface, easy to operate.
Specifications of GM Series 200-600Tons guide plate type hydraulic press punching machine
| Item/Specification | Unit | GM200 | GM260 | GM300 | GM400 | GM500 | GM600 |
|---|---|---|---|---|---|---|---|
| Main pressing capacity | Ton | 200 | 260 | 300 | 400 | 500 | 600 |
| Max.stroke | mm | 410 | 430 | 460 | 490 | 520 | 550 |
| Daylight opening | mm | 660 | 680 | 710 | 740 | 820 | 850 |
| Bolster area L.R×F.B | mm | 2200×940 | 2350×1000 | 2600×1000 | 2800×1100 | 3000×1300 | 3200×1300 |
| Slide area L.R×F.B | mm | 1850×750 | 2100×900 | 2300×900 | 2400×1000 | 2600×1150 | 2800×1150 |
| System max pressure | Mpa | 18 | 18 | 18 | 18 | 18 | 18 |
| Fast speed down | mm/sec | 280 | 280 | 280 | 280 | 280 | 280 |
| Fast speed up | mm/sec | 280 | 280 | 280 | 280 | 280 | 280 |
| Increasing pressure speed | mm/sec | 30 | 30 | 25 | 25 | 25 | 25 |
| Main motor power | kw | 22 | 30 | 30 | 37 | 45 | 22+37 |
Copper anti wear slider of GM Series 200-600Tons guide plate type hydraulic press punching machine
Top quality copper anti wear sleeve of GM Series 200-600Tons guide plate type hydraulic press punching machine
OMPI clutch used on GM Series 200-600Tons guide plate type hydraulic press punching machine
Cnc automatic strip feeder with touch screen of chinese and english language.
