M6 3PCS Heavy duty shield anchor nuts automatic high speed making machine

M6 3PCS Heavy duty shield anchor nuts automatic high speed making machine

Description

Description

Running video of M6 3PCS Heavy duty shield anchor nuts automatic high speed making machine

Main Advantages:
1. Effectively improve production efficiency and reduce production process. Our equipment production capacity is remarkable, surpassesmost of manufacturers, greatly reduce production process, the standard productsare basically once formed, save time and effort.

2. Save cost.Due to the drastic reduction of production process,enterprises can save labor cost, manufacturing cost and time cost whileensuring production capacity. The combined cost is reduced by as much as 50%.

3. Productionsof machine are highly developable. All kinds of standard, non-standard products, as long asmolds are formed, they will have a mass production

4. Durable equipment life. Ourcompany is taiwanese-owned enterprises, machinery parts and components areimported from Taiwan, then assembled in the mainland, and ourcompany has always been strictly the quality pass,just want to supply our customers the best products.

3PCS 4PCS Heavy duty shield anchor nuts automatic high speed nuts making machine

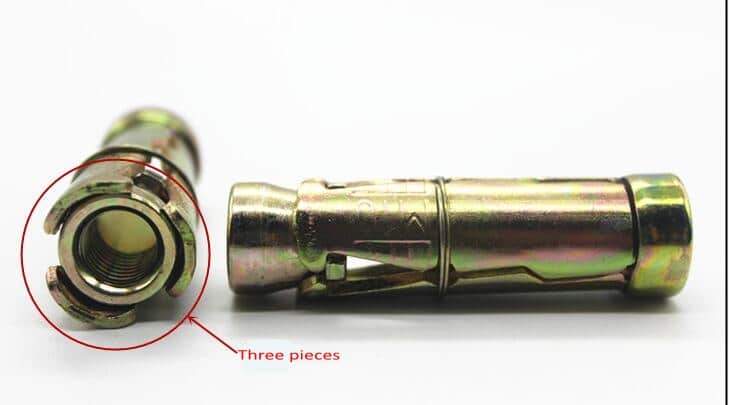

3PCS 4PCS Heavy duty shield anchor nuts made by M6 3PCS Heavy duty shield anchor nuts automatic high speed making machine

3PCS 4PCS Heavy duty shield anchor nuts made by nuts making machine

3PCS 4PCS Heavy duty shield anchor nuts made by M6 3PCS Heavy duty shield anchor nuts automatic high speed making machine



Specifications of M6 3PCS Shield anchor nuts automatic high speed making machine

ParametersUnitModel:ANF11B-6S-14
Max. DiameterMM11
Max. LengthMM14
Kick Out LengthMM14
Forging ForceTON60
Max. OutputPPM150
Ram StrokeMM58
Dies PitchMM50
Main MotorHP20
Lub. MotorHP1
Appro.WeightTON4.5
Appro. SizeM2.5*1.7*1.3





drop in anchor bush sleeve forging machine structure

Nuts/drop in anchor taper pin/bullets forging machine structure

Main Features of M6 3PCS Heavy duty shield anchor nuts automatic high speed making machine

NO.1.The machine body and main sliding block are processed through stress relieving after being forged to prevent from deformation and ensure durable mechanical stabolity.

NO.2.Machine body of high alloy steel imported is prossed through quenching treatment to ensure lasting resistance to wearing.

NO.3.Eash cam is precisely designed with computer and made in CNC process center to ensure correct and smooth cam common normal.

NO.4.Applying air compressor clutch,smooth and steady start current brake,realization of inching,single stroke and continuous running,besides inching way,main sliding block will stop at the utmost point ehen the machine stops every time to provide max. operation space.

NO.5.Circumferential flushing trimming.

NO.6.Synchronic reverse of plunger die ejecting with primary slipway to ensure the product shall be temporarily kept in the plunger die and prenvent from falling our by the plunger die.

NO.7.We can attach with frequency converter with stepless speed control.

NO.8.PLC digital control inspection device enabling automatic inspection of the working state and failure alarming display.

NO.9.Tongs of swing type and rotary type provide with pneunatic mechanism, clamping stably.

NO.10. Running in a high automatization and intellectualization,no pollution
