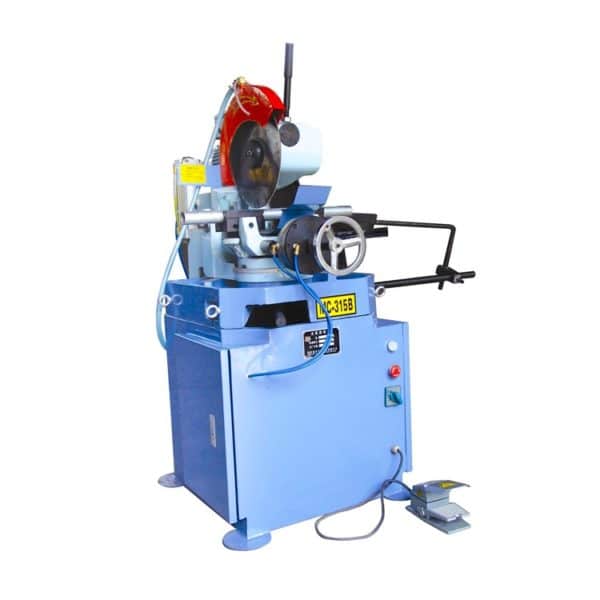

Semi-Automatic High Speed Metal Pipe Cutting Machine

Semi-Automatic High Speed Metal Pipe Cutting Machine



Semi-automatic metal pipe cutting machine

Adapted material:Cut to length of steel pipe, stainless steel tube, copper pipe, aluminum pipe,etc.

Main specification

1.The cutting machine use the block-drive turbine vortex .

2. Small nose,small shock, without dust pollution, no thorns.

3. Tangent plane is fluent,good quality internal and external incisions.High priduction and precision of saw cutting.

4. Vertical slide way for advance and retreat blade up and down.

5. Cutting feed issteady and cutting tools are of long use life.

6.Cooling and lubricante system ensure the cutting surface and prolong the life of sawblades.

7. Advance of tool adopts manual mode, the cutting machine’s head can rotate 45 degree left and right.

Technical parameter

Machine model AMC-275 Series AMC-315 Series
Cutting direction 90 degree 45 degree 90 degree 45 degree
Hollow pipe 80 60 100 80
Hollow square steel 60×60 45×45 90×90 80×80
Hollow rectangular pipe 60×80 45×60 80×90 80×80
Solid rectangular steel 60×60 45×45 90×90 80×80
Solid shafting 38 25 55 45
Solid square steel 38 25 50 40
Accessories and Services

Accessories and Services

Free Spare parts and Accessories with wedge anchor machine
1.Wire stand 1pcs
2.PKO swing arm(small) 4pcs
3.Cam fasten nut 3pcs
4.Forging die spare springs 10pcs
5.Output roller 2pcs
6.PKO roller 1pcs
7.Operation manual in english
8.Easy wear parts drawings.

Our services:
Pre-Sales Service
* Technical proposal and solution.
* Trial sample as per customer’s drawing after customer pay the die cost.
* Online video authentication machine work.

After-Sales Service
* Offer installation instruction of how to install the machine.
* Offer operation instruction of how to use the machine.
* Teach and train customer’s engineers how to operate machine in our factory.
* Regularly engineers visit customer’s factory site.
