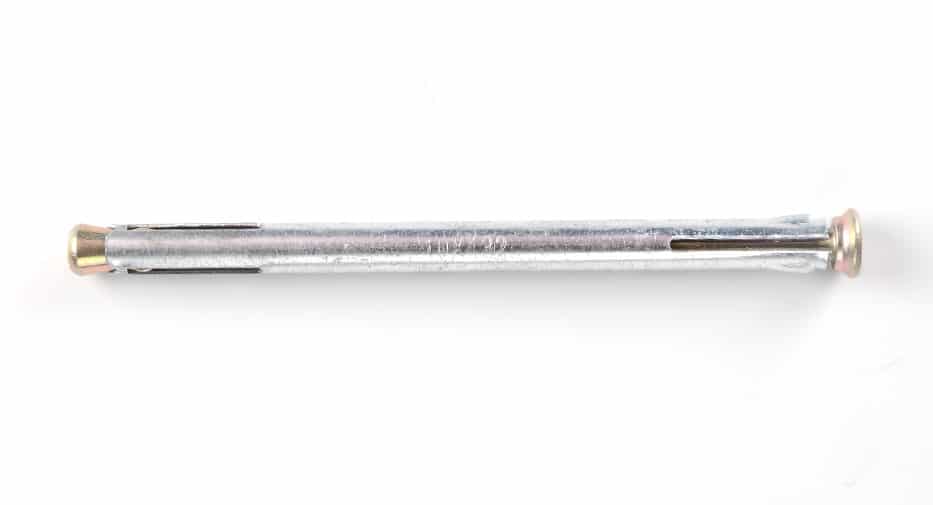

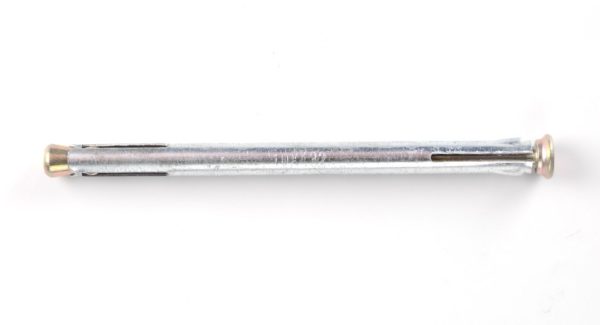

Stainless Steel Metal Windows Frame Anchor

Description

Stainless Steel Metal Windows Frame Anchor dimensions
Size		Pcs/Box	Weight KGS/Mpcs
Standard	8*72	1000	19.3
	8*92	1000	23.4
	8*112	1000	28.2
	8*132	1000	32.7
	8*152	1000	37.3
	8*172	1000	41.9
	10*52	800/600	22.9
	10*72	600	28.6
	10*92	600	34.5
	10*112	400	41.2
	10*132	400	46.9
	10*152	400	52.3
	10*182	400	62.5
	10*202	400	68.51
Non Standard	10*72	570	18.4
	10*92	570	23.7
	10*112	380	27.7
	10*132	380	38.5
	10*152	380	43.3
	10*182	380	51.4
	10*202	380	61.1

Stainless Steel Metal Windows Frame Anchor

Name	Stainless Steel Metal Windows Frame Anchor
Place of Origin	China
Size	M6-M10 or non-standard as request&design
Length	50-140mm or non-standard as request & design
Grade	4.8,6.8,8.8,10.9,12.9
Standards	GB,DIN,ISO,ANSI/ASTM,B7,BS,JIS etc.
Material	Stainless Steel
Surface Treatment
Delivery	Within 15-35days after confirm the order.
Package	Carton/pallet or according to requirement.
Payment	30% T/T in advance,70% paid against the copy of B/L.
Non-standards	OEM is available if you provide a drawing or sample.
Samples	Samples are free.
