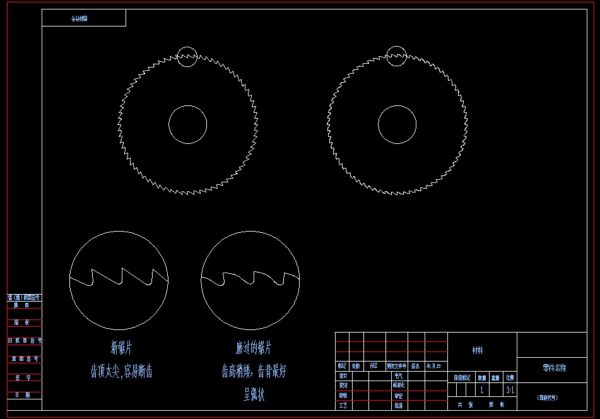

Cutting Machine Saw Blade drawing

Cutting Machine Saw Blade Sharpening and Grinding Machine

Cutting Machine Saw Blade Sharpening and Grinding Machine

Categories: , Tag:
Description

Description

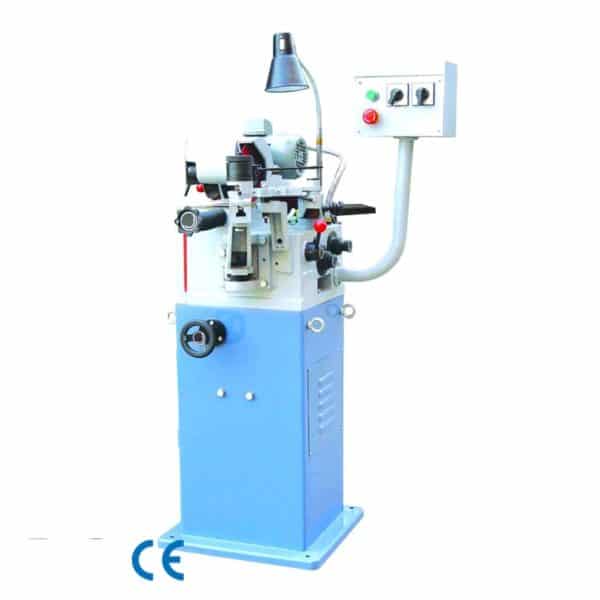

Cutting Machine Saw Blade Sharpening and Grinding Machine

Product Description

1.This machine is easy to operate, the cutting angle, tooth shape and tooth depth on the saw are easy to adjust, with a high precision, sharp and durable.
2. Quick adjustments can be made according to the various thicknesses of the coping saw bits.
3. The head section can be adjusted or swinged upward or forward willingly, coping and beveling can be made without exchanging the abrasive disk.

Technical parameter

Specification/Model

ASG-450

Diameter of blade

Φ50mm-Φ450mm

Max distance of the tooth

25mm

Max depth of the tooth

8mm

Degree

-5 – 30

Feeding speed

45-180 teeth/minute

Max thickness of the blade

8mm

Diameter of the grinding wheel

Φ75mm-Φ150mm

Speed of the grinding wheel

4200RPM(60HZ)

Driving motor

1/2HP

Grinding motor

3/4HP

Size

800mm x 800mm x 1410mm

Weight

130kg
Accessories and Services

Accessories and Services

Free Spare parts and Accessories with wedge anchor machine
1.Wire stand 1pcs
2.PKO swing arm(small) 4pcs
3.Cam fasten nut 3pcs
4.Forging die spare springs 10pcs
5.Output roller 2pcs
6.PKO roller 1pcs
7.Operation manual in english
8.Easy wear parts drawings.

Our services:
Pre-Sales Service
* Technical proposal and solution.
* Trial sample as per customer’s drawing after customer pay the die cost.
* Online video authentication machine work.

After-Sales Service
* Offer installation instruction of how to install the machine.
* Offer operation instruction of how to use the machine.
* Teach and train customer’s engineers how to operate machine in our factory.
* Regularly engineers visit customer’s factory site.
